Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the recirculation actuator.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the recirculation actuator retaining screws.

    Tighten

    Tighten the screws to 1.6 N.m (14 lb in).

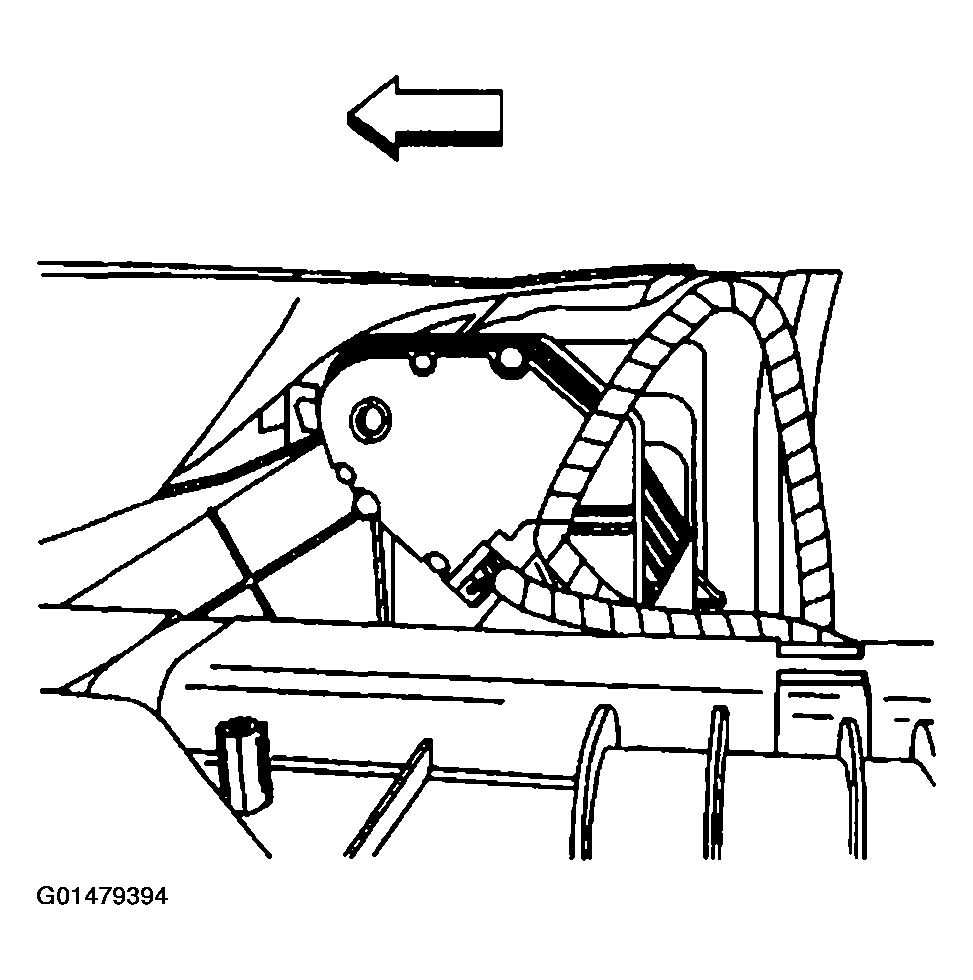

    Fig 1: Install Recirculation Actuator & Retaining Screws
    G01479394Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connector to the recirculation actuator (1).
  4. Install the air distribution duct. Refer to AIR DISTRIBUTOR DUCT REPLACEMENT .

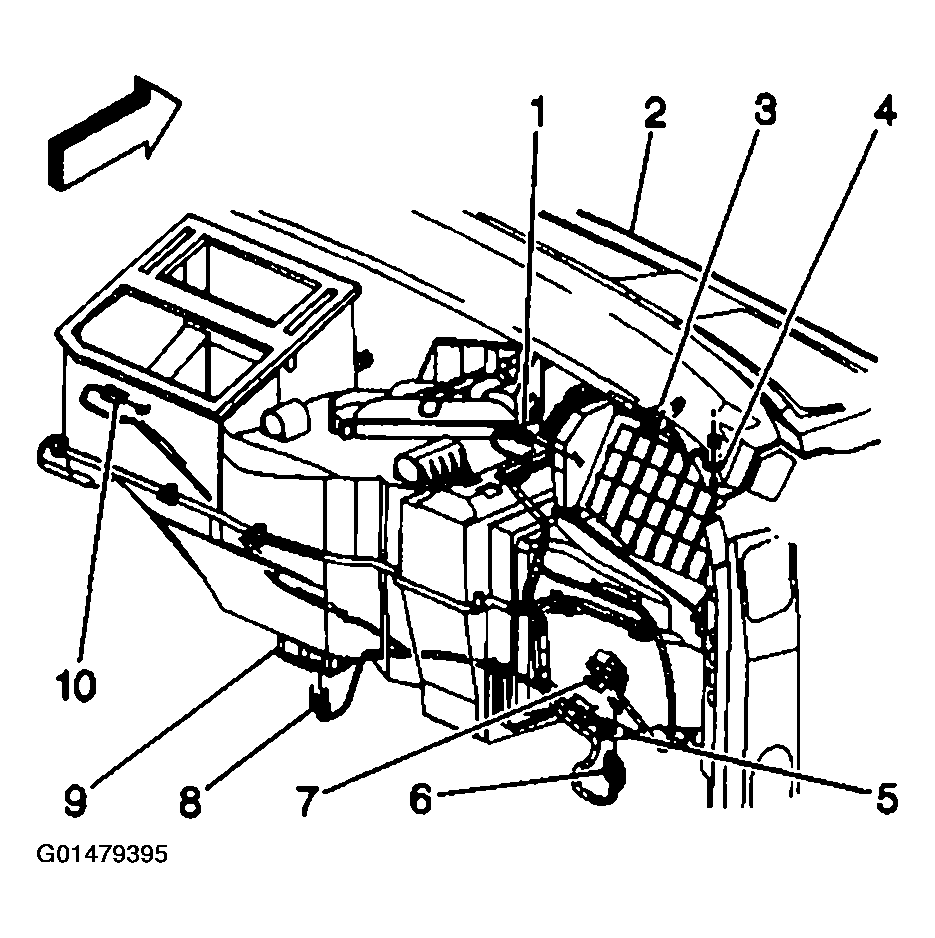

    Fig 2: Connect Electrical Connector To Recirculation Actuator
    G01479395Courtesy of GENERAL MOTORS CORP.
