Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the Park/Turn Signal. Refer to PARK/TURN SIGNAL LAMP REPLACEMENT (OLD STYLE) or PARK/TURN SIGNAL LAMP REPLACEMENT (NEW STYLE) .
  2. Disconnect the electrical connector from the ambient air temperature sensor (3).
  3. Remove the ambient air temperature sensor (3).

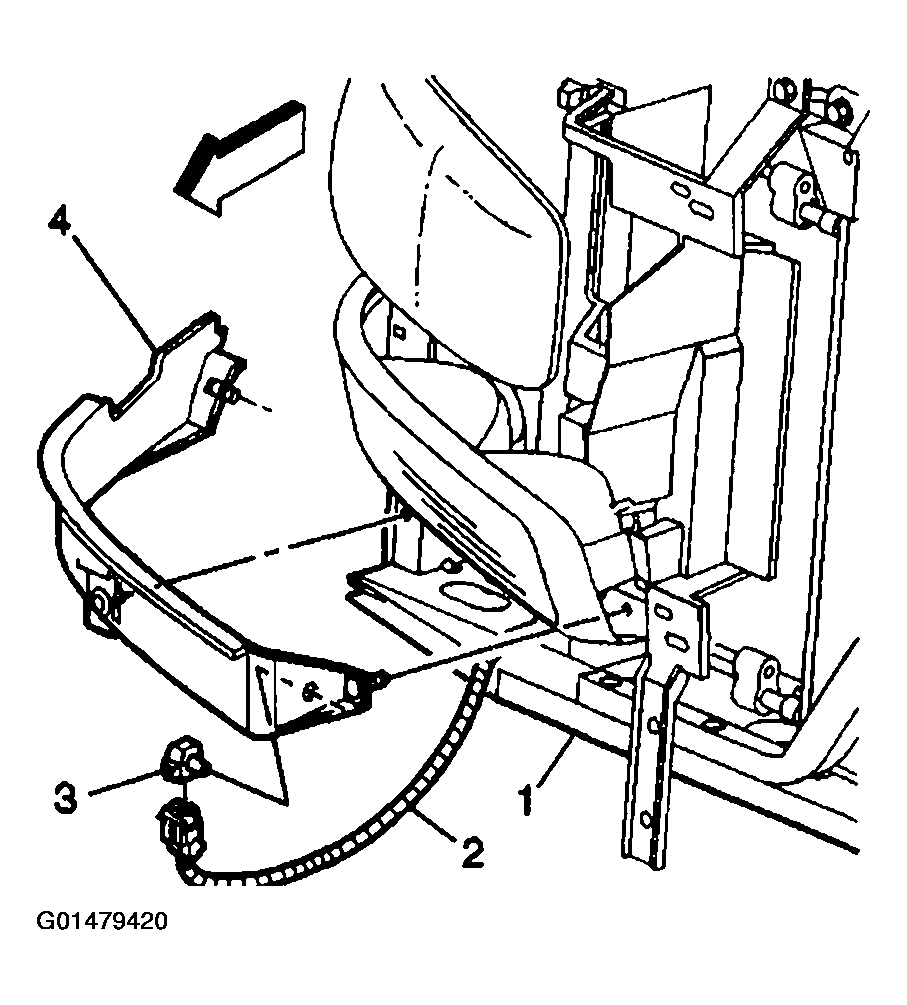

    Fig 1: Remove Ambient Air Temperature Sensor
    G01479420Courtesy of GENERAL MOTORS CORP.
