Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the I/P compartment door.
  2. Lower the I/P compartment door.
  3. Disconnect the electrical connector (1) from the upper right air temperature sensor (2).
  4. Remove the upper right air temperature sensor (1) from the air distributor duct (3).

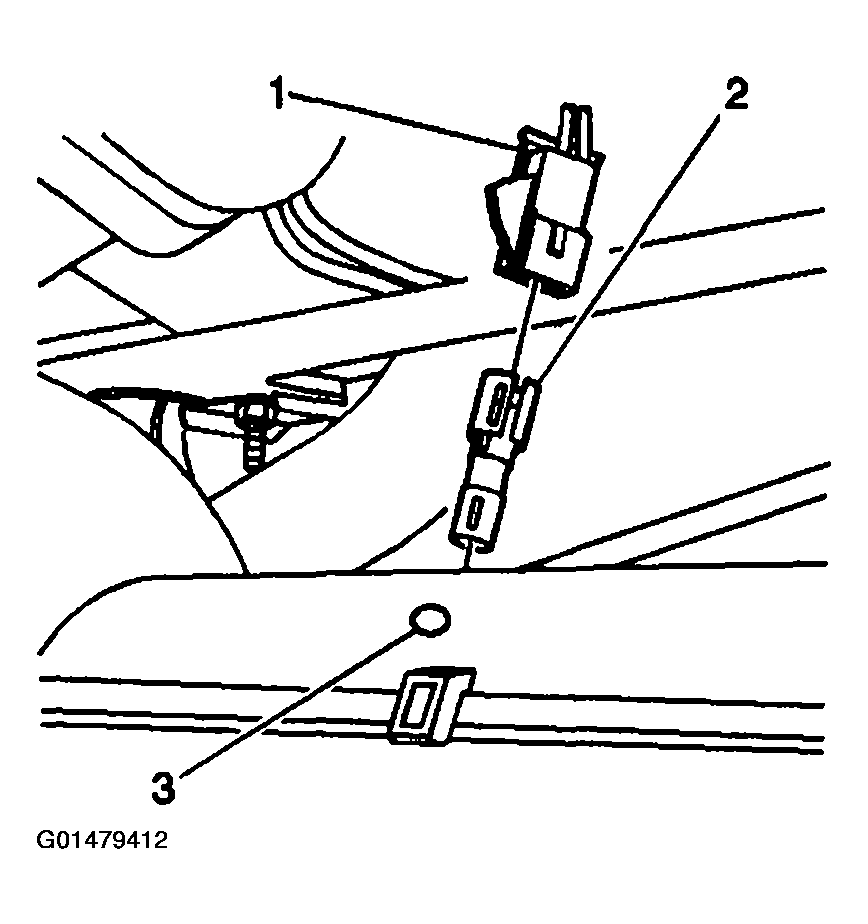

    Fig 1: Electrical Connector, Upper Right Air Temperature Sensor & Air Distributor Duct
    G01479412Courtesy of GENERAL MOTORS CORP.
