Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the upper right air temperature sensor (1) to the air distributor duct (3).
  2. Connect the electrical connector (1) from the upper right air temperature sensor (2).
  3. Close the I/P compartment door.

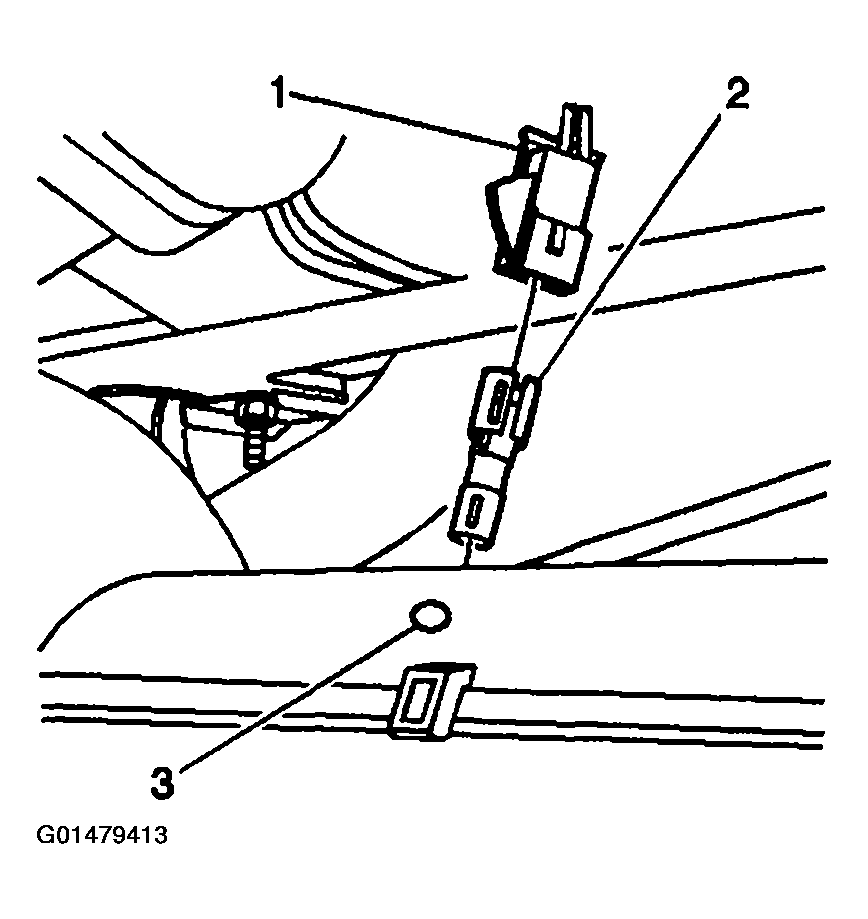

    Fig 1: Electrical Connector, Upper Right Air Temperature Sensor & Air Distributor Duct
    G01479413Courtesy of GENERAL MOTORS CORP.
