Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper left air temperature sensor (2) from the air distributor duct (1).
  2. Disconnect the electrical connector (3) from the upper left air temperature sensor (2).

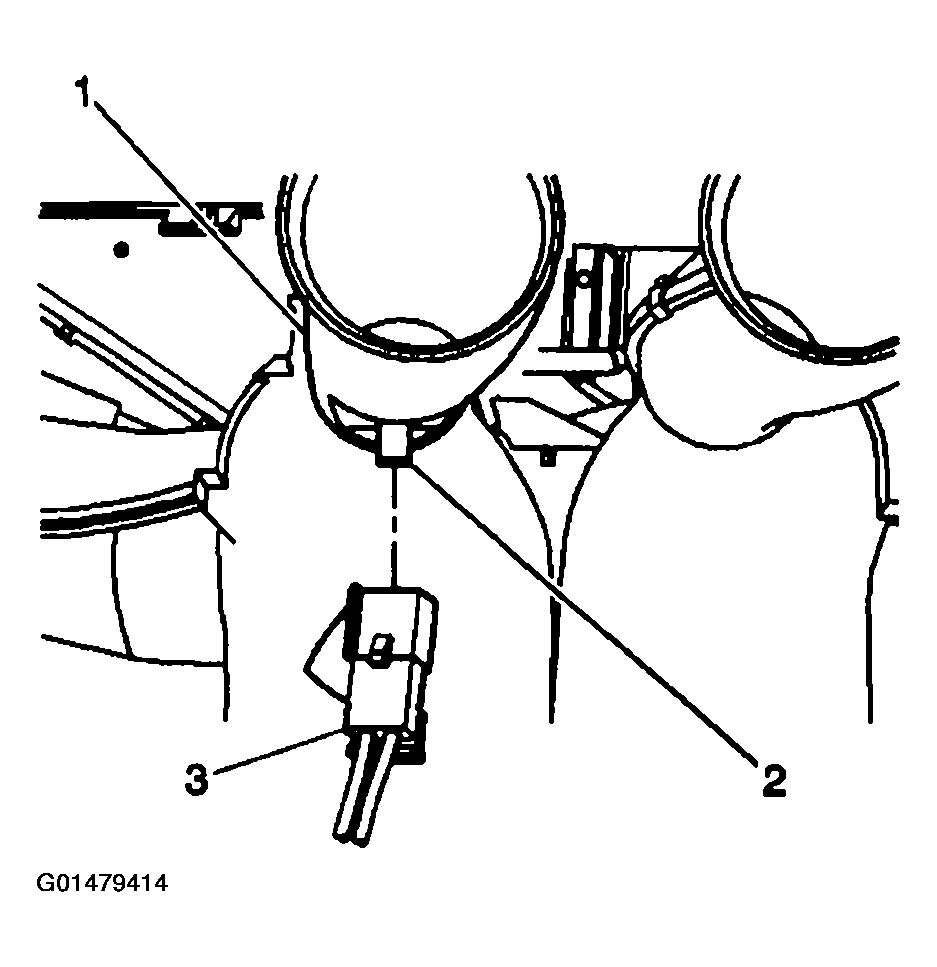

    Fig 1: Electrical Connector, Upper Left Air Temperature Sensor & Air Distributor Duct
    G01479414Courtesy of GENERAL MOTORS CORP.
