Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Install the upper left air temperature sensor (2) to the air distributor duct (1).
Connect the electrical connector (3) to the upper left air temperature sensor (2).

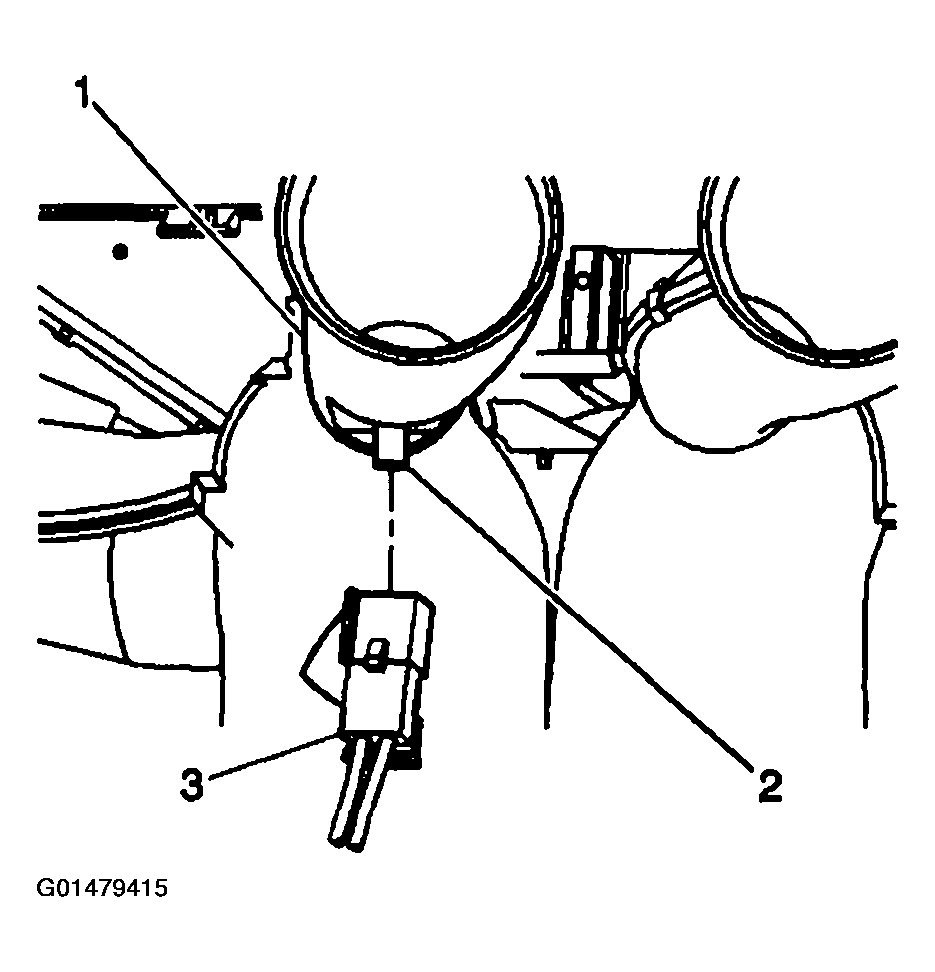

Fig 1: Electrical Connector, Upper Left Air Temperature Sensor & Air Distributor Duct
Courtesy of GENERAL MOTORS CORP.
