Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the I/P lower closeout panel. Refer to INSULATOR REPLACEMENT -- INSTRUMENT PANEL (I/P) .
  2. Disconnect the electrical connector from the lower right air temperature sensor (1).
  3. Remove the lower right air temperature sensor (1).

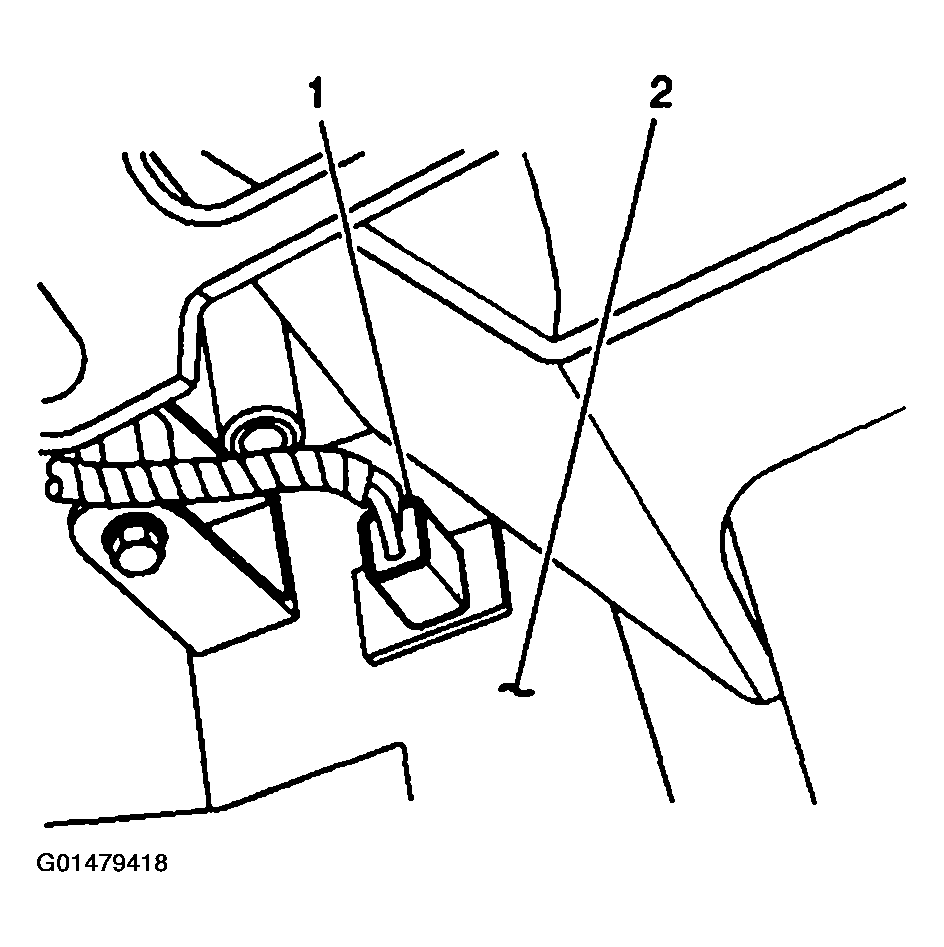

    Fig 1: Remove Lower Right Air Temperature Sensor
    G01479418Courtesy of GENERAL MOTORS CORP.
