Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the lower right air temperature sensor (1).
  2. Connect the electrical connector to the lower right air temperature sensor (1).
  3. Install the I/P lower closeout panel. Refer to INSULATOR REPLACEMENT -- INSTRUMENT PANEL (I/P) .

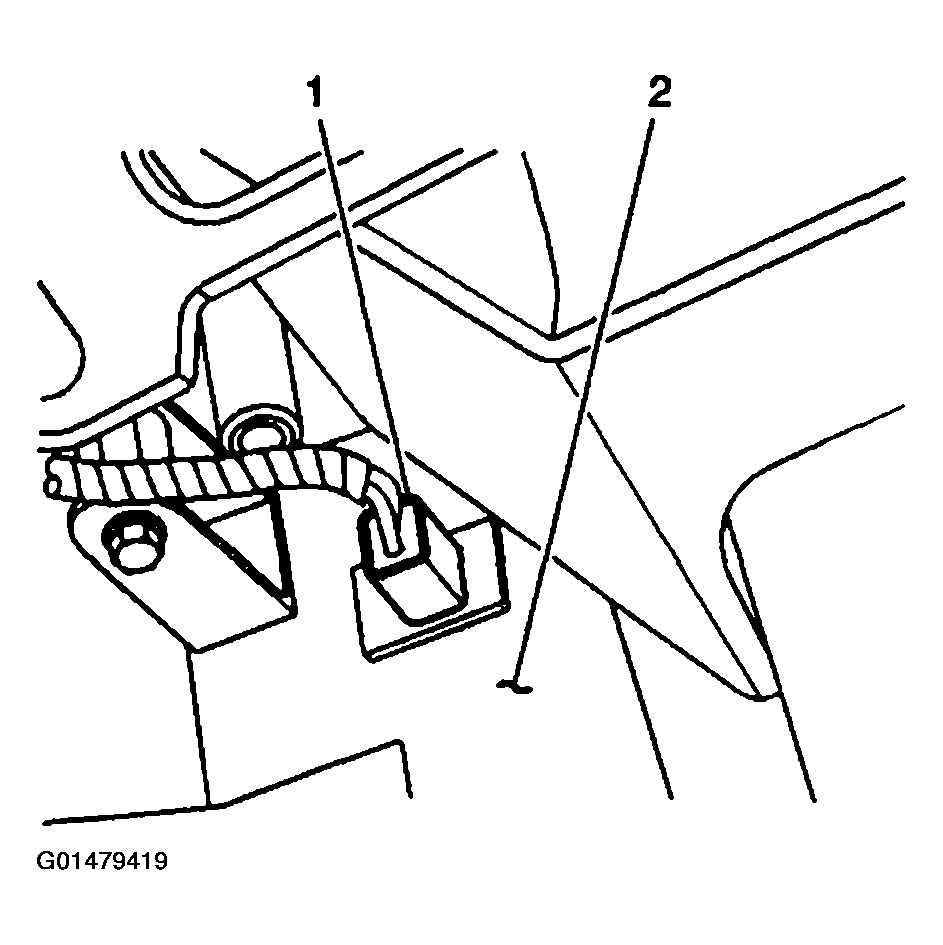

    Fig 1: Install Lower Right Air Temperature Sensor
    G01479419Courtesy of GENERAL MOTORS CORP.
