Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the electrical connector from the lower left air temperature sensor (1).
  2. Remove the lower left air temperature sensor (1) from the HVAC module (2).

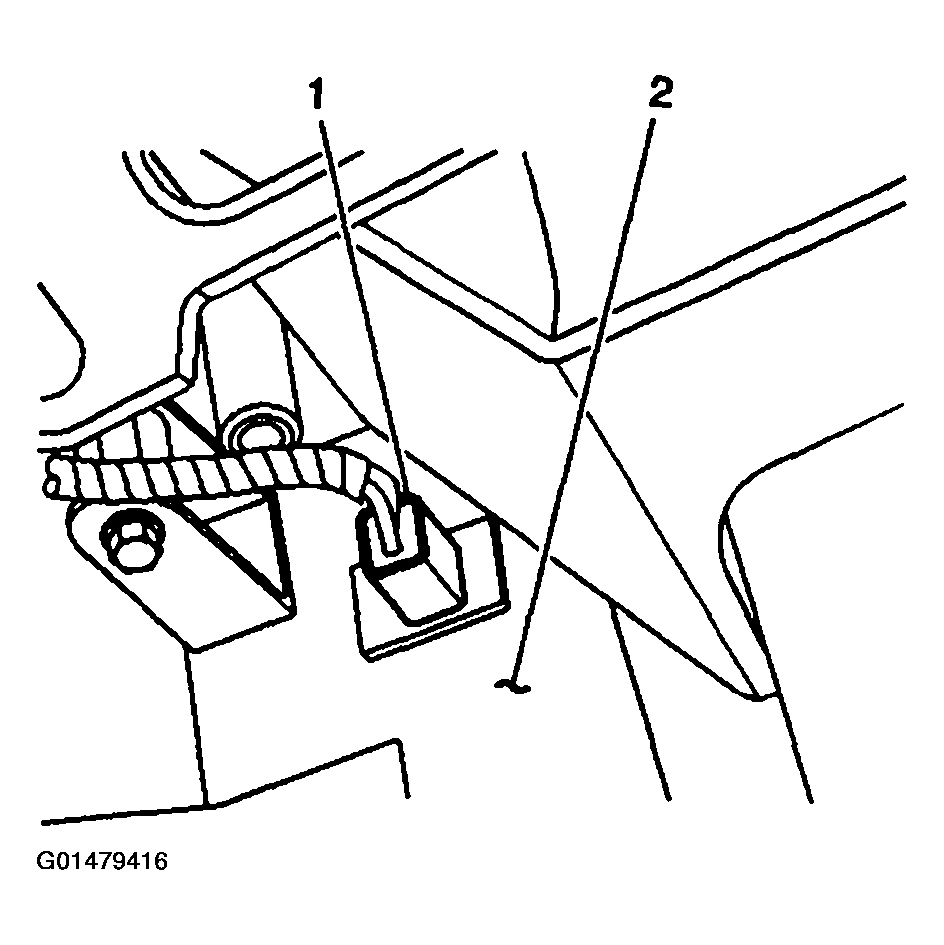

    Fig 1: Remove Lower Left Air Temperature Sensor From HVAC Module
    G01479416Courtesy of GENERAL MOTORS CORP.
