Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the I/P carrier. Refer to INSTRUMENT PANEL (I/P) CARRIER REPLACEMENT .
  2. Disconnect the electrical connector (4) from the right air temperature actuator (3).
  3. Remove the screws from the right air temperature actuator (3).
  4. Remove the right air temperature actuator (3) from the HVAC module assembly (2).

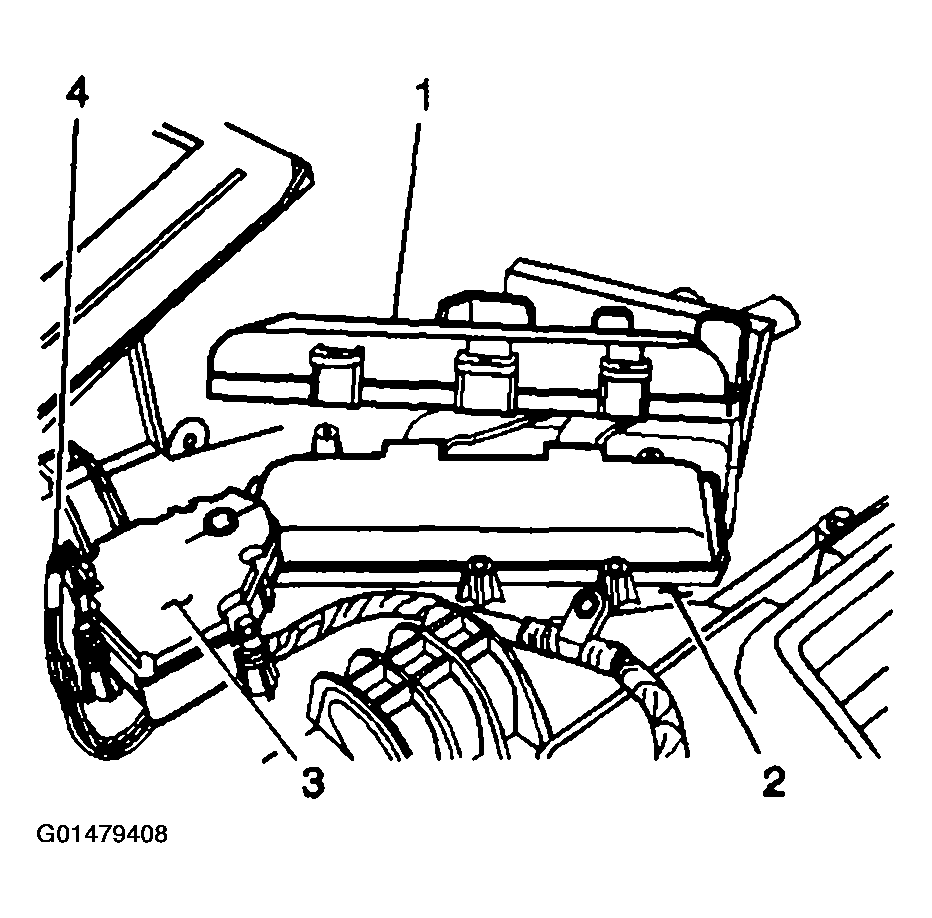

    Fig 1: Electrical Connector, Air Temperature Actuator & HVAC Module Assembly
    G01479408Courtesy of GENERAL MOTORS CORP.
