Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

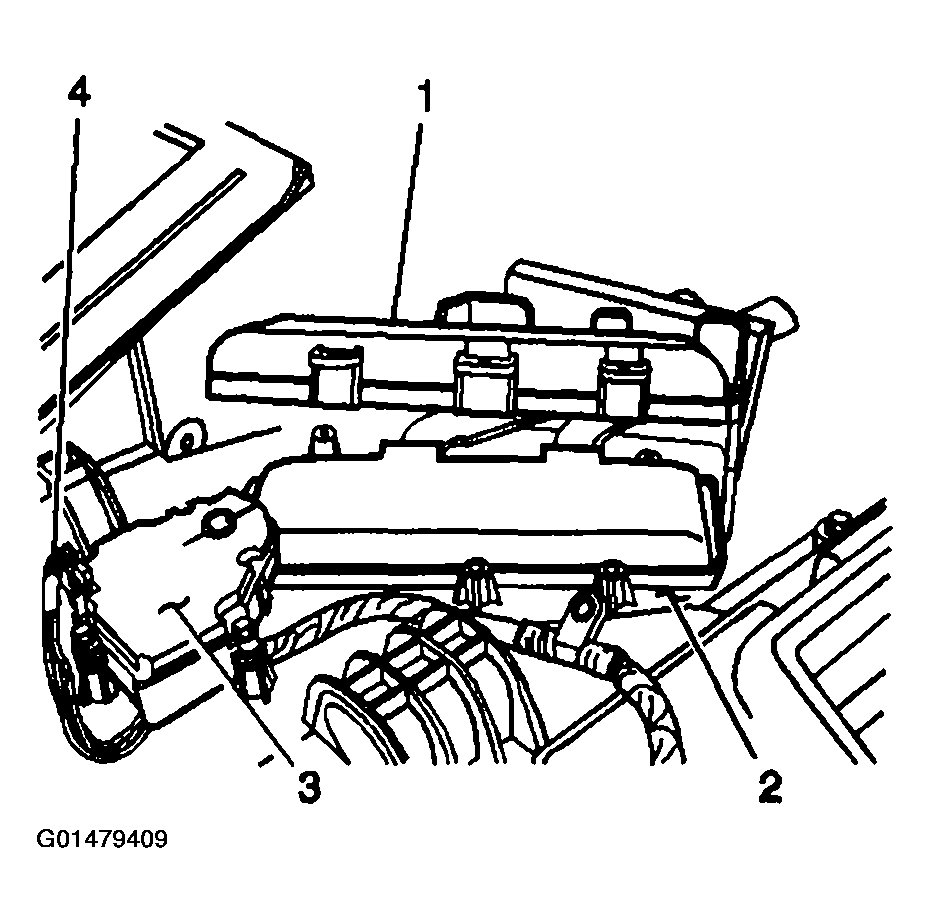

Fig 1: Electrical Connector, Air Temperature Actuator & HVAC Module Assembly
G01479409Courtesy of GENERAL MOTORS CORP.
  1. Install the right air temperature actuator (3) from the HVAC module assembly (2).
    NOTE: Refer to FASTENER NOTICE .
  2. Install the screws to the right air temperature actuator (3).

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  3. Connect the electrical connector to the right air temperature actuator.
  4. Install the I/P carrier. Refer to INSTRUMENT PANEL (I/P) CARRIER REPLACEMENT .
  5. Reprogram the air temperature actuator. Refer to Re-Calibrating Actuators .
