Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the center console, if equipped. Refer to Console Replacement in Instrument Panel, Gages & Console article under REPAIR INSTRUCTIONS .
  2. Remove the I/P insulator panel. Refer to INSULATOR REPLACEMENT -- INSTRUMENT PANEL (I/P) .
  3. Disconnect the electrical connector (1) from the left air temperature actuator (2).
  4. Remove the screws from the left air temperature actuator (2).
  5. Remove the left air temperature actuator (2) from the HVAC module assembly (3).

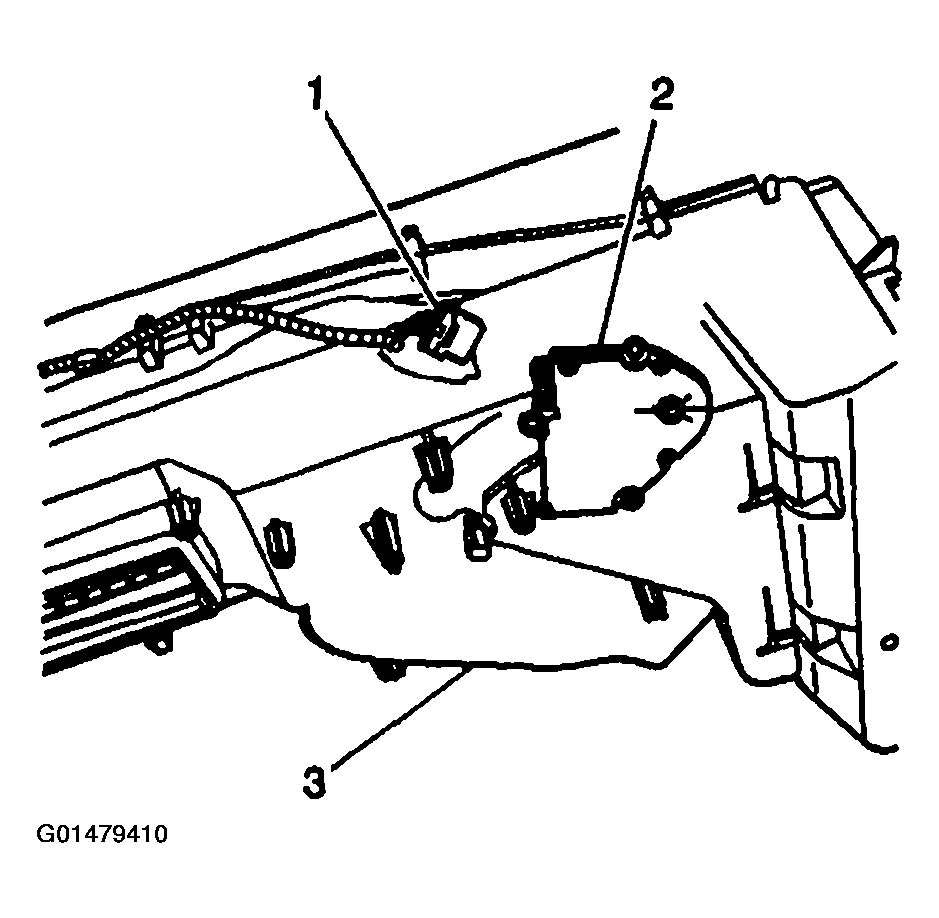

    Fig 1: Electrical Connector, Air Temperature Actuator & HVAC Module Assembly
    G01479410Courtesy of GENERAL MOTORS CORP.
