Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air distribution duct. Refer to AIR DISTRIBUTOR DUCT REPLACEMENT ..
  2. Disconnect the electrical connection from the recirculation actuator (1).

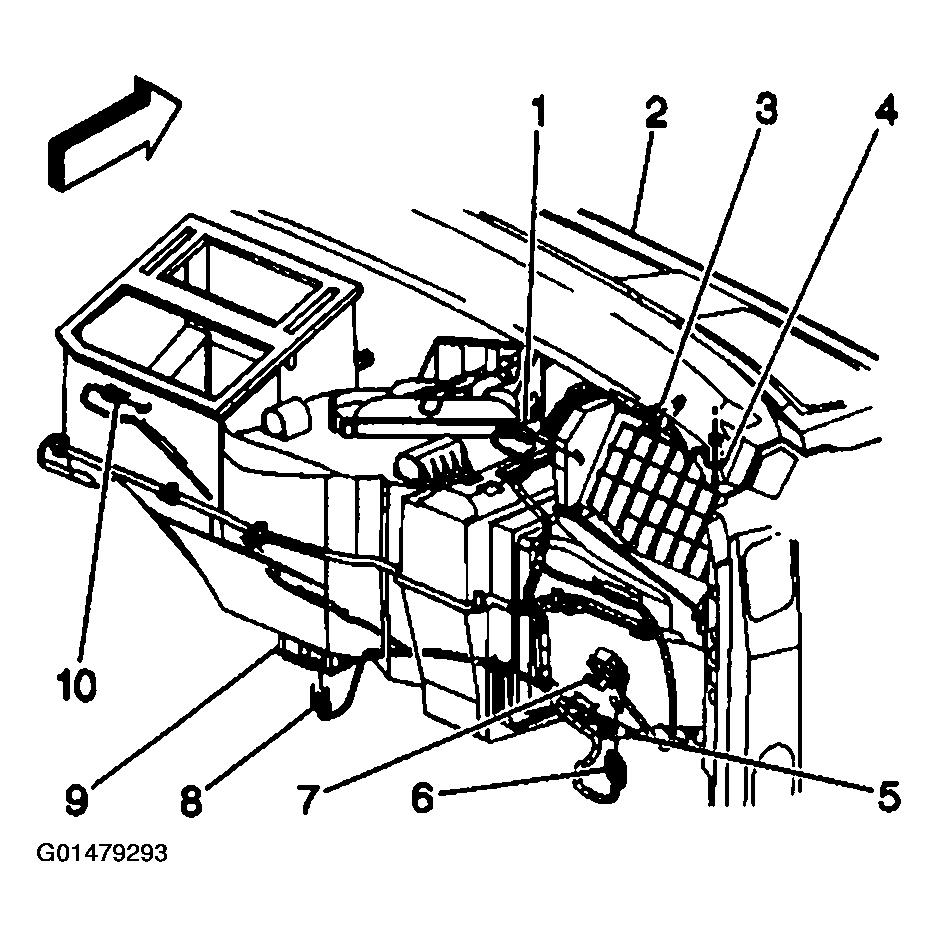

    Fig 1: Disconnect Electrical Connection From Recirculation Actuator
    G01479293Courtesy of GENERAL MOTORS CORP.
  3. Remove the recirculation actuator retaining screws.
  4. Remove the recirculation actuator.

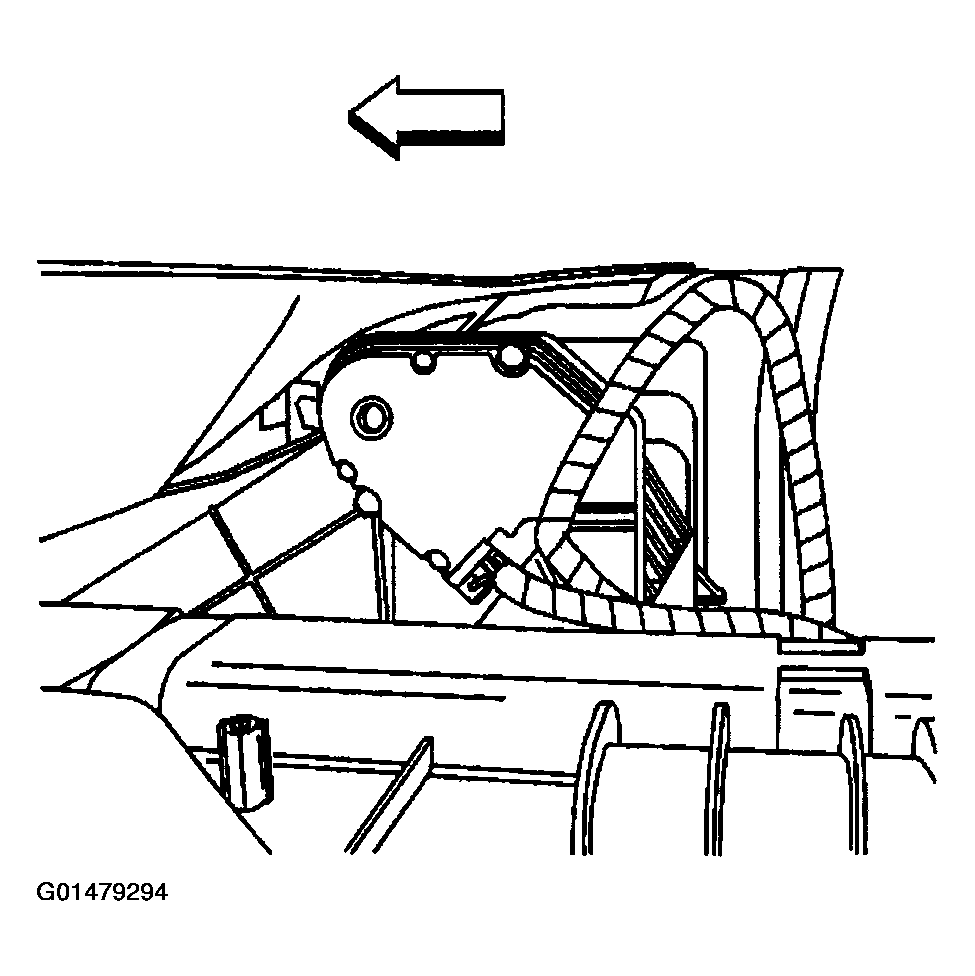

    Fig 2: Remove Recirculation Actuator & Retaining Screws
    G01479294Courtesy of GENERAL MOTORS CORP.
