Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Install the air temperature actuator.

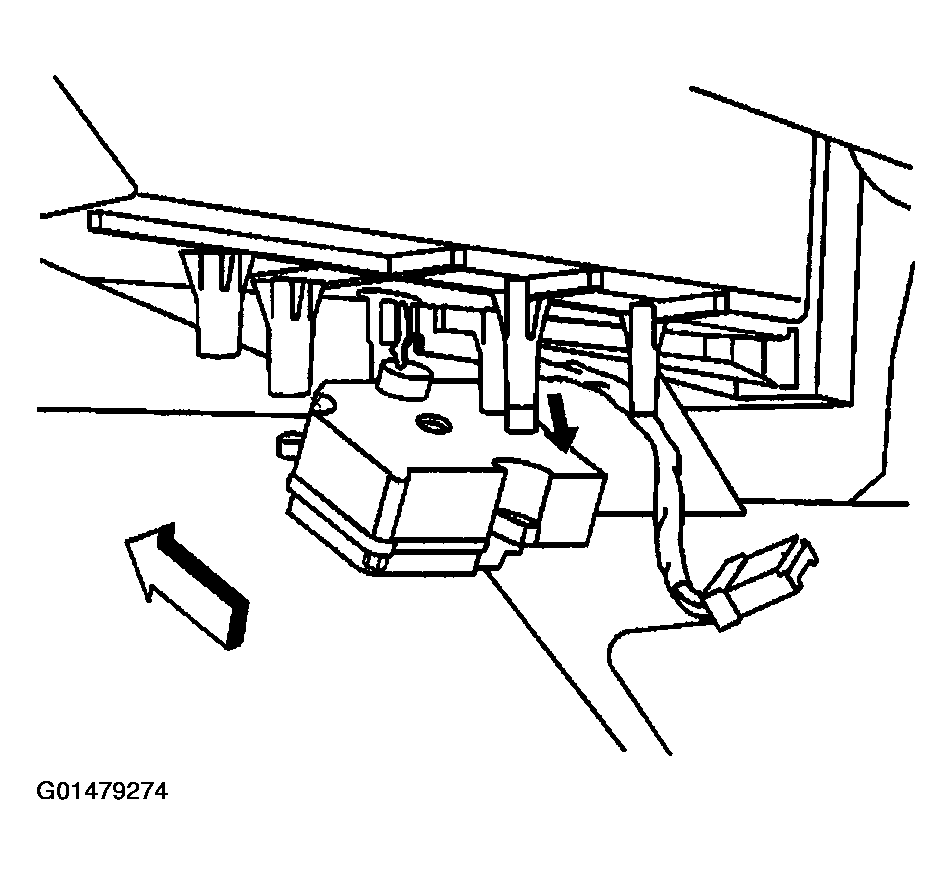

Fig 1: Install Air Temperature Actuator
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Install the air temperature actuator retaining screws.
Tighten

Tighten the screws to 1.6 N.m (14 lb in).

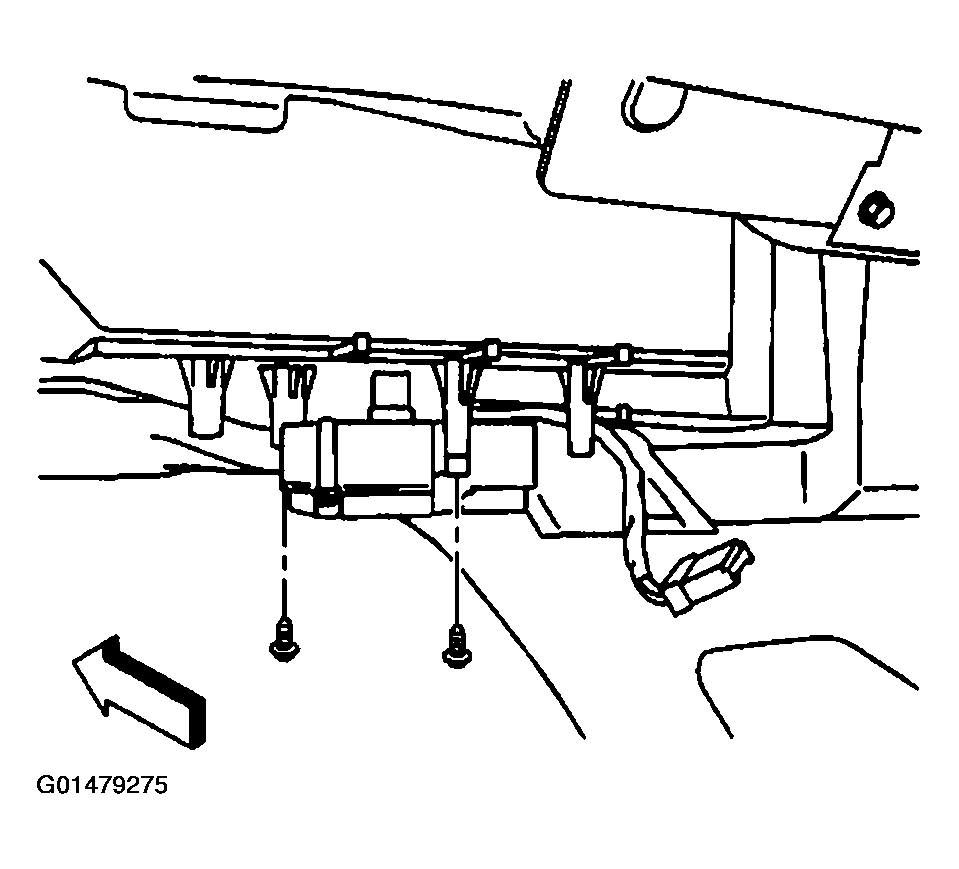

Fig 2: Install Air Temperature Actuator Retaining Screws

Courtesy of GENERAL MOTORS CORP.

Connect the electrical connector (8) to the air temperature actuator (9).

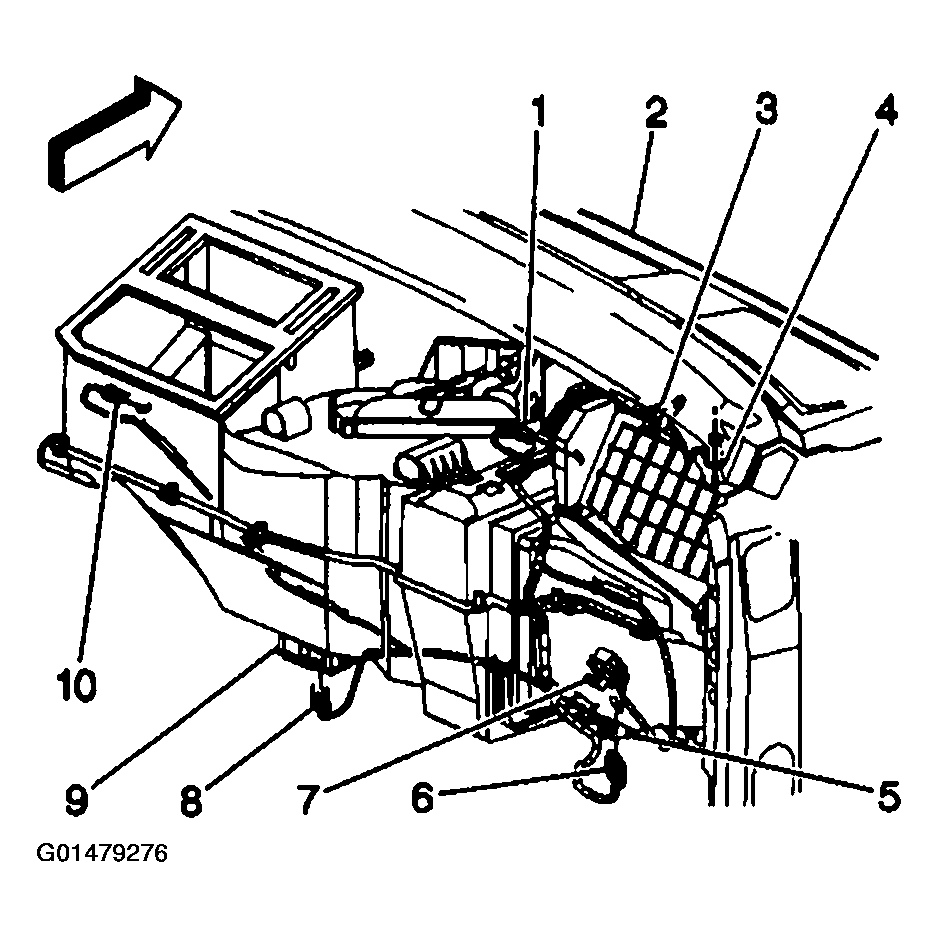

Fig 3: Connect Electrical Connector To Air Temperature Actuator
Courtesy of GENERAL MOTORS CORP.
Install the IP insulator. Refer to INSULATOR REPLACEMENT -- INSTRUMENT PANEL (I/P) .
