HVAC Connector End Views

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

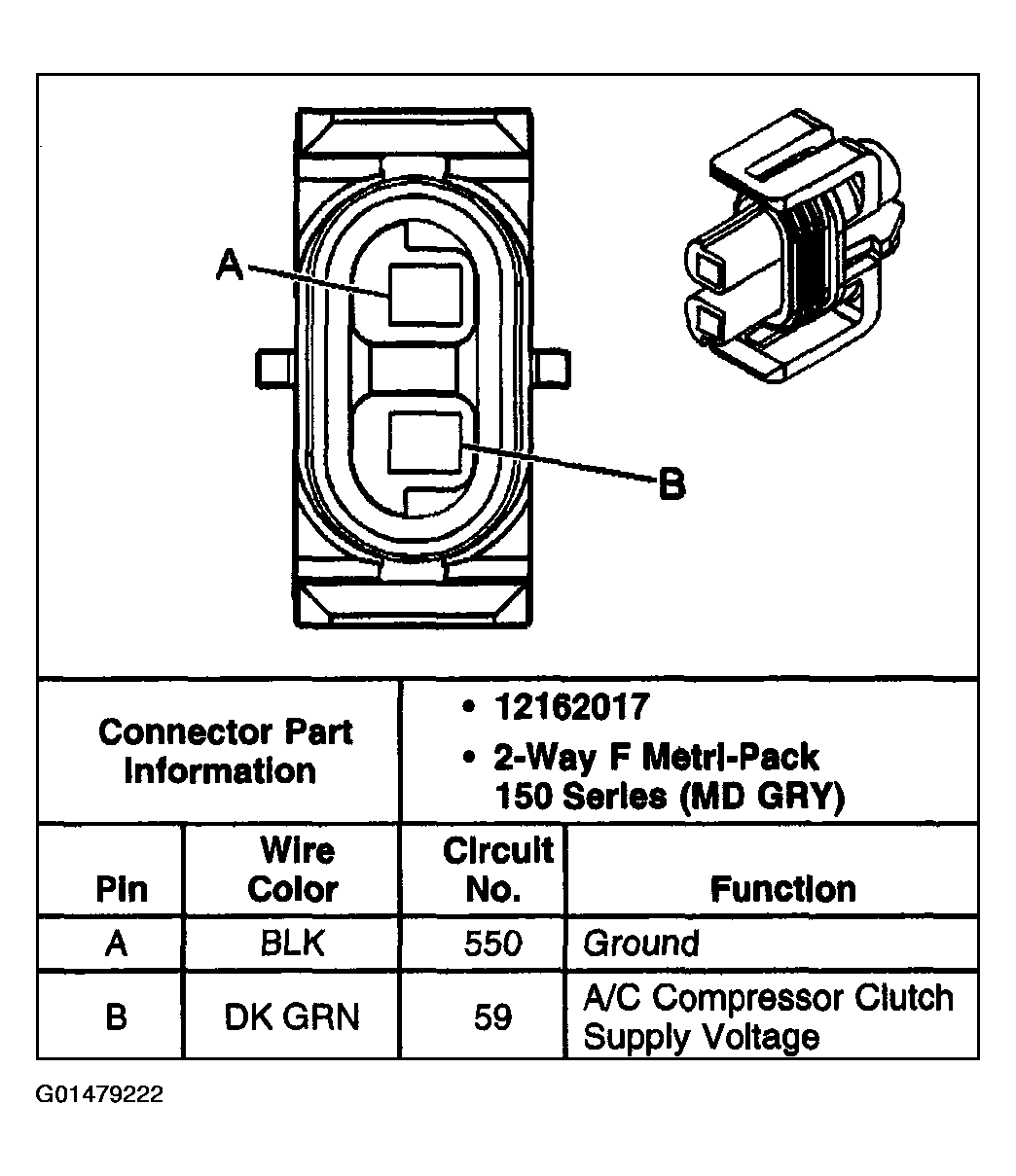

Fig 1: A/C Compressor Clutch

G01479222

Courtesy of GENERAL MOTORS CORP.

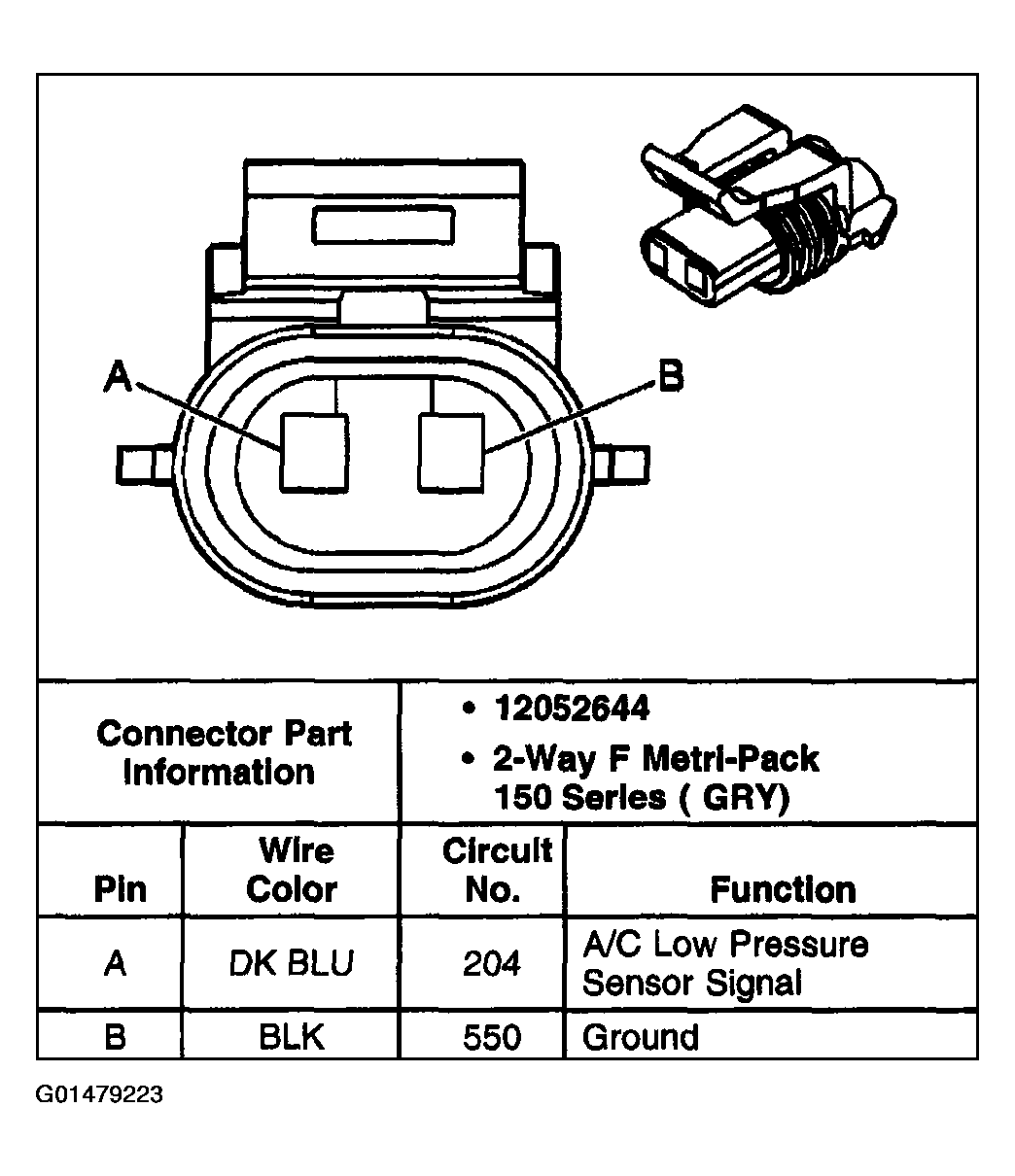

Fig 2: A/C Low Pressure Switch

G01479223

Courtesy of GENERAL MOTORS CORP.

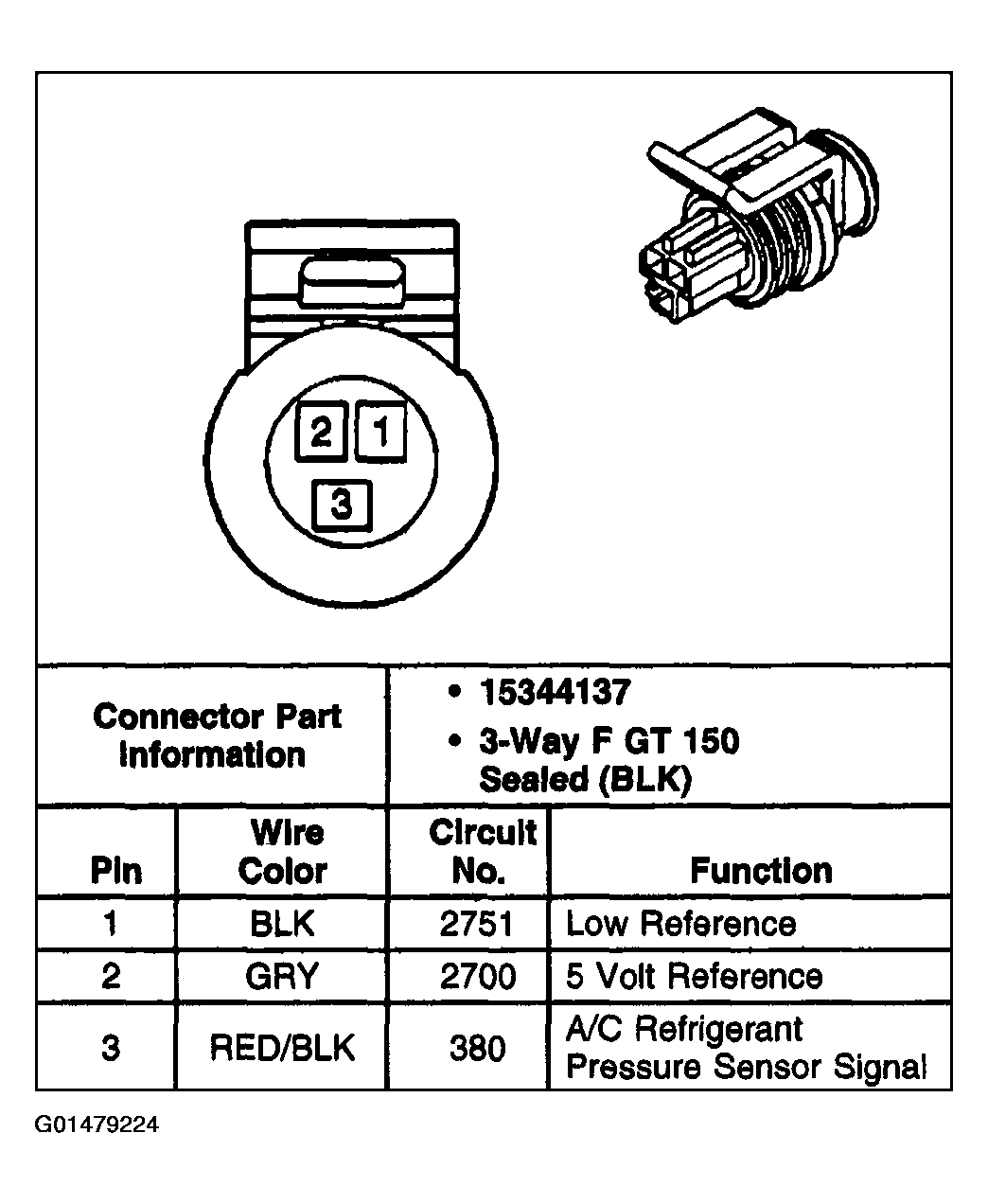

Fig 3: A/C Refrigerant Pressure Sensor

G01479224

Courtesy of GENERAL MOTORS CORP.

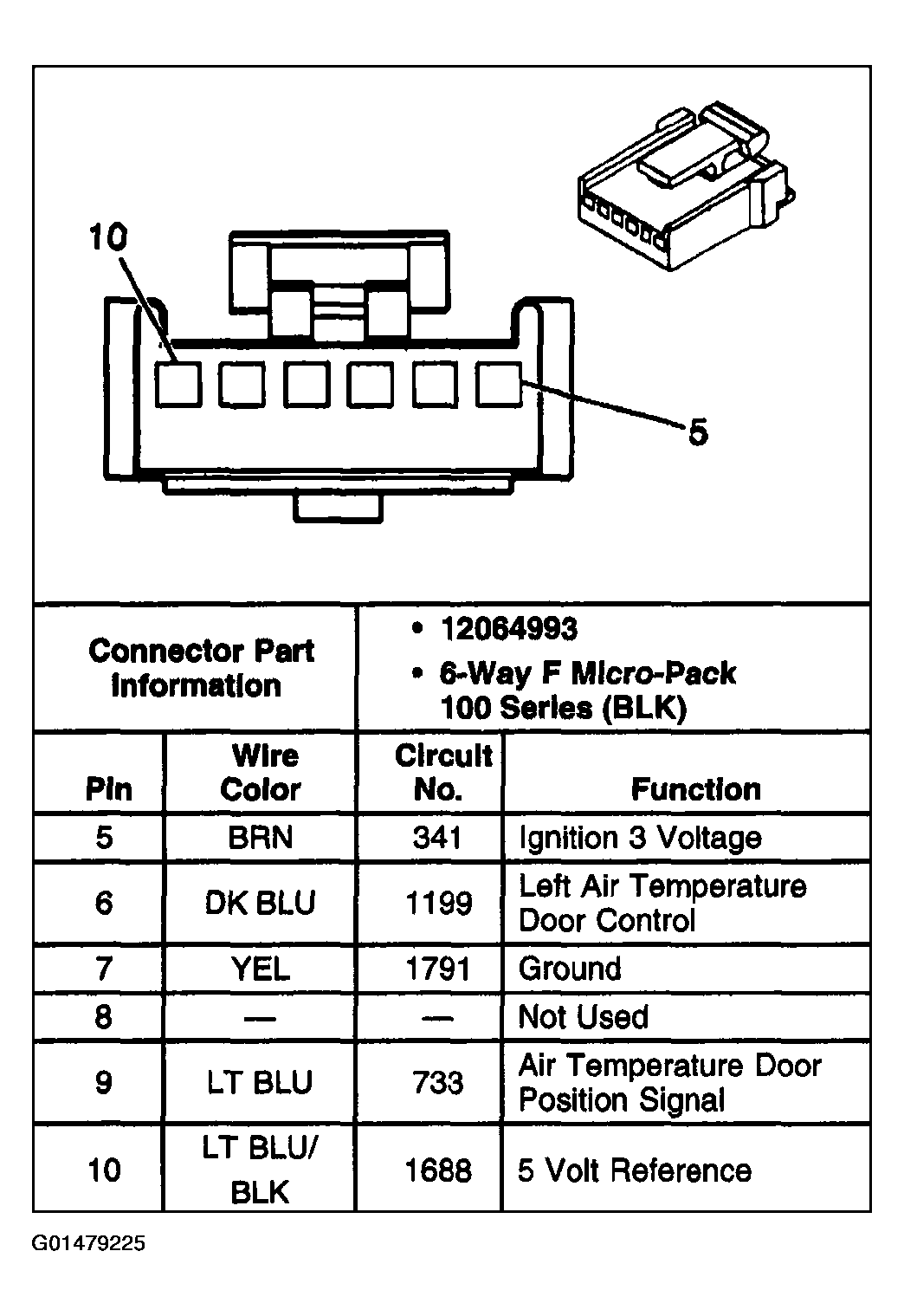

Fig 4: Air Temperature Actuator - Left

G01479225

Courtesy of GENERAL MOTORS CORP.

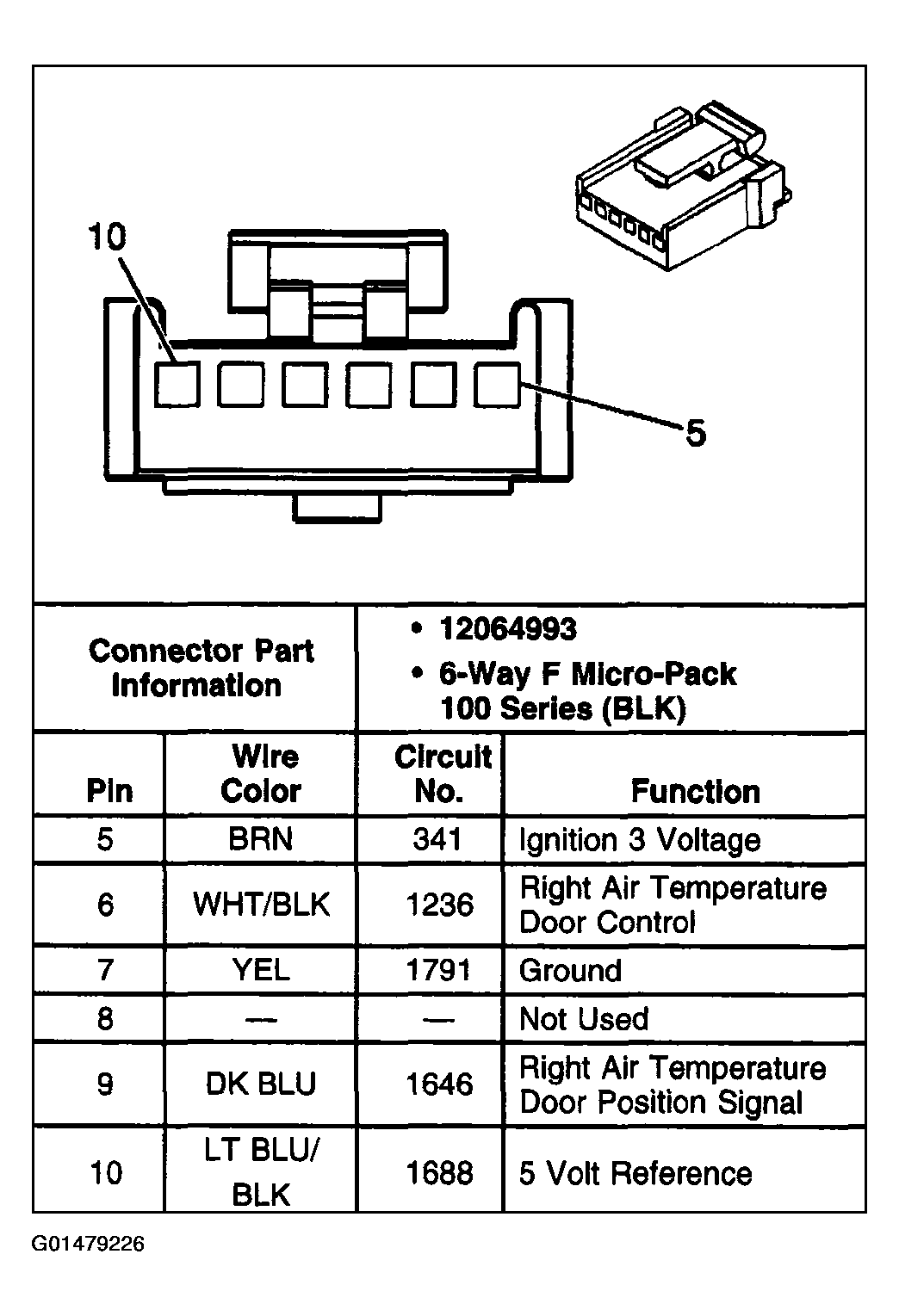

Fig 5: Air Temperature Actuator - Right

G01479226

Courtesy of GENERAL MOTORS CORP.

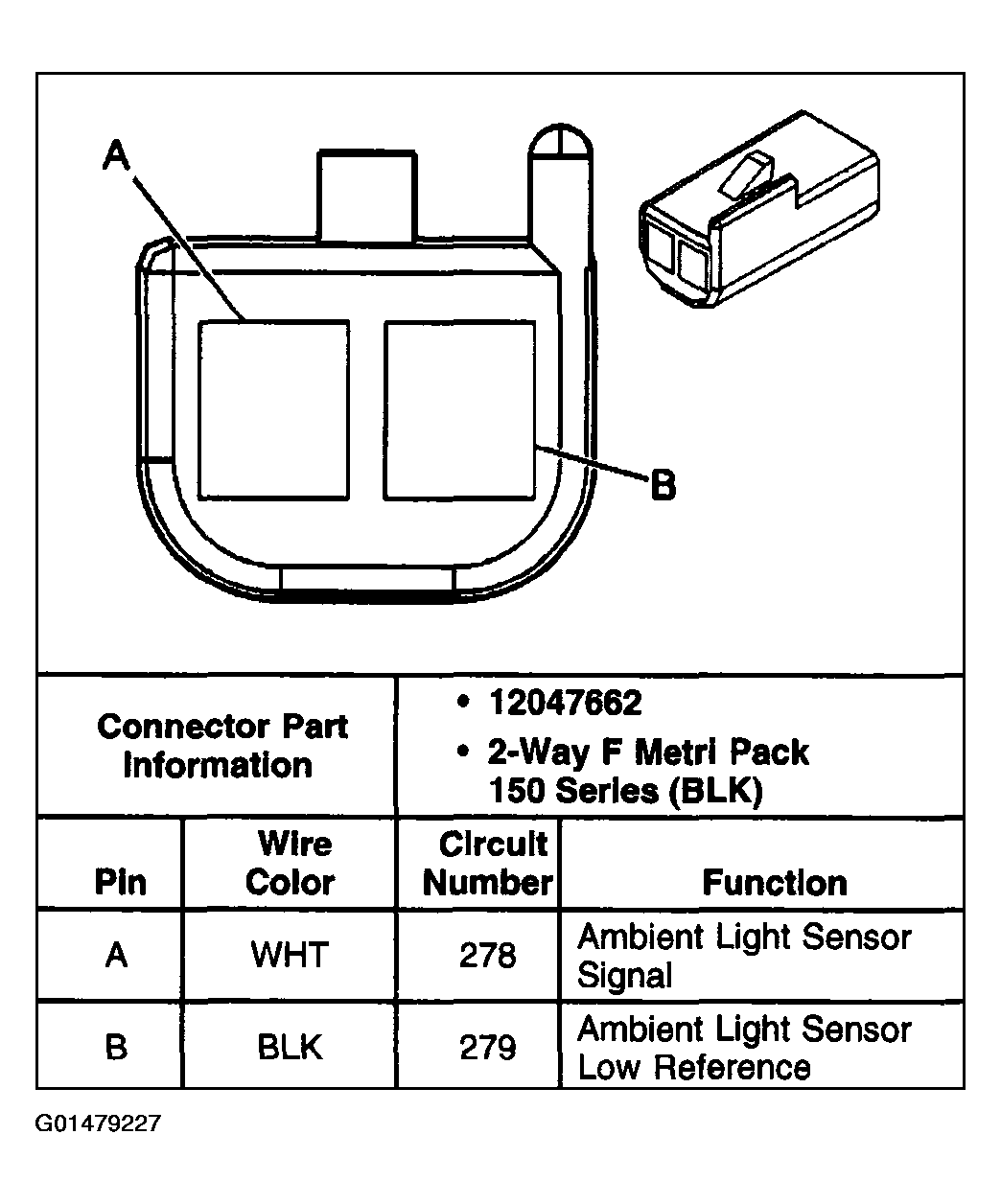

Fig 6: Ambient Light Sensor

G01479227

Courtesy of GENERAL MOTORS CORP.

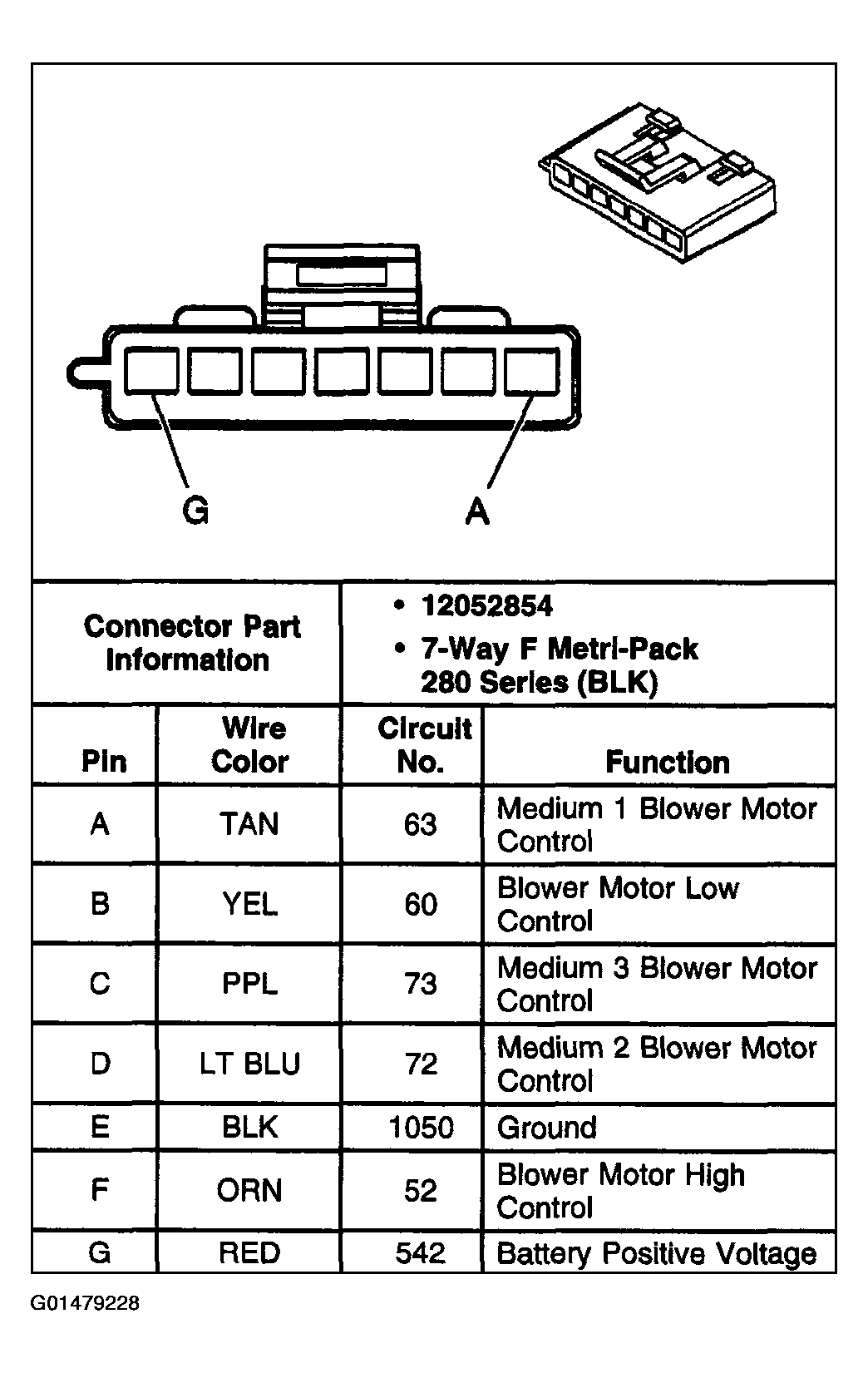

Fig 7: Blower Motor Resistor Assembly

G01479228

Courtesy of GENERAL MOTORS CORP.

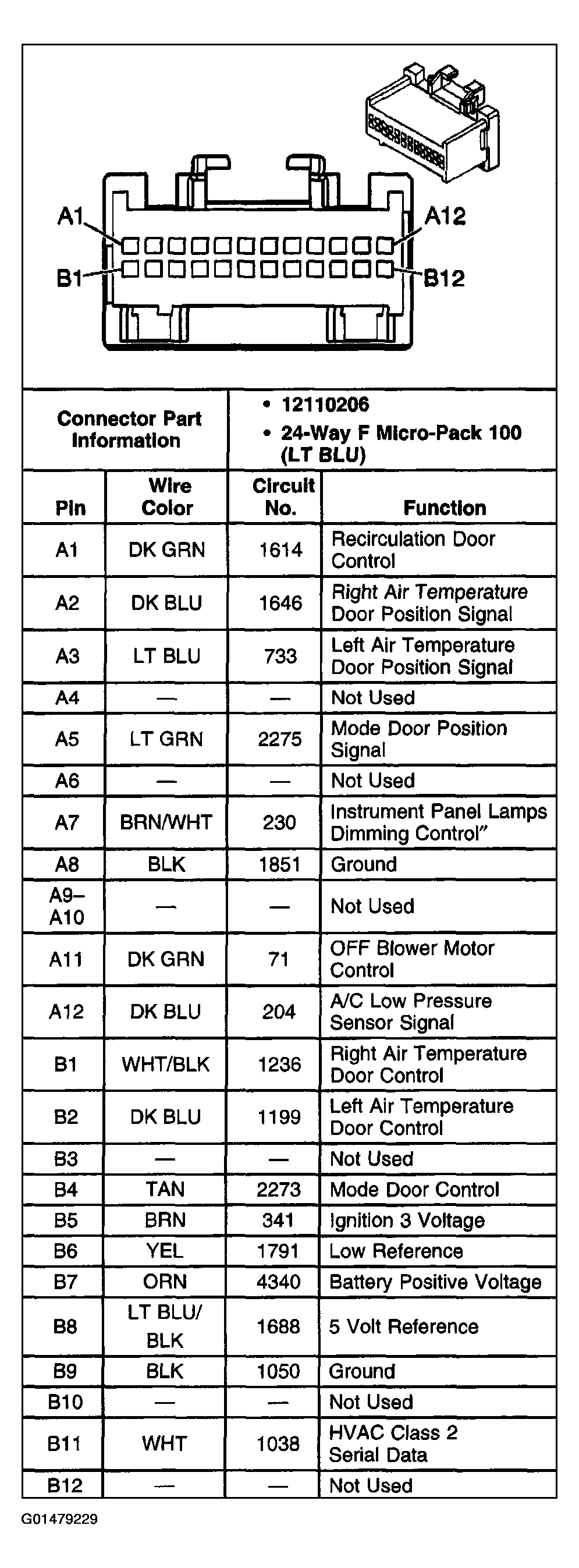

Fig 8: HVAC Control Module - C1

G01479229

Courtesy of GENERAL MOTORS CORP.

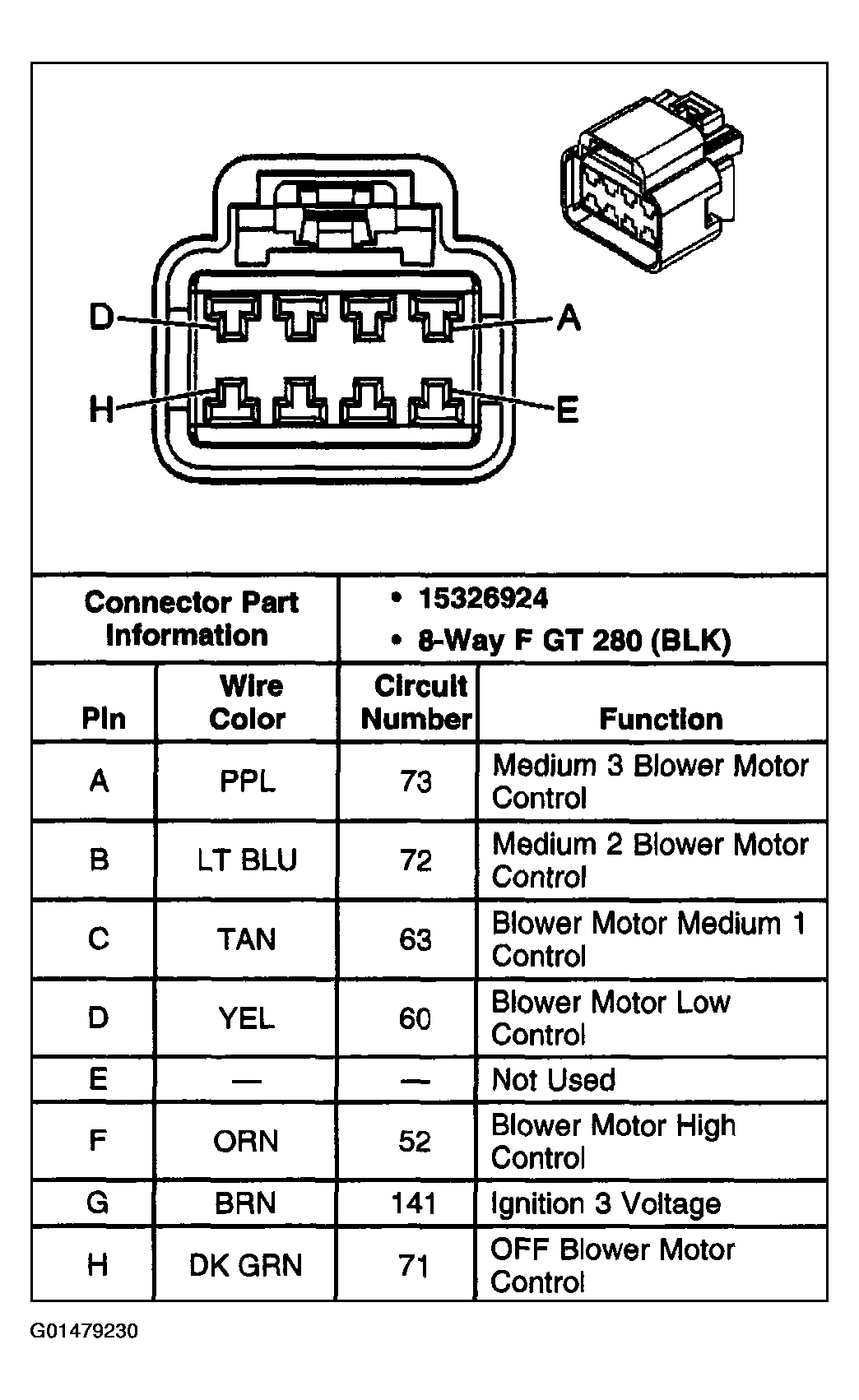

Fig 9: HVAC Control Module - C2

G01479230

Courtesy of GENERAL MOTORS CORP.

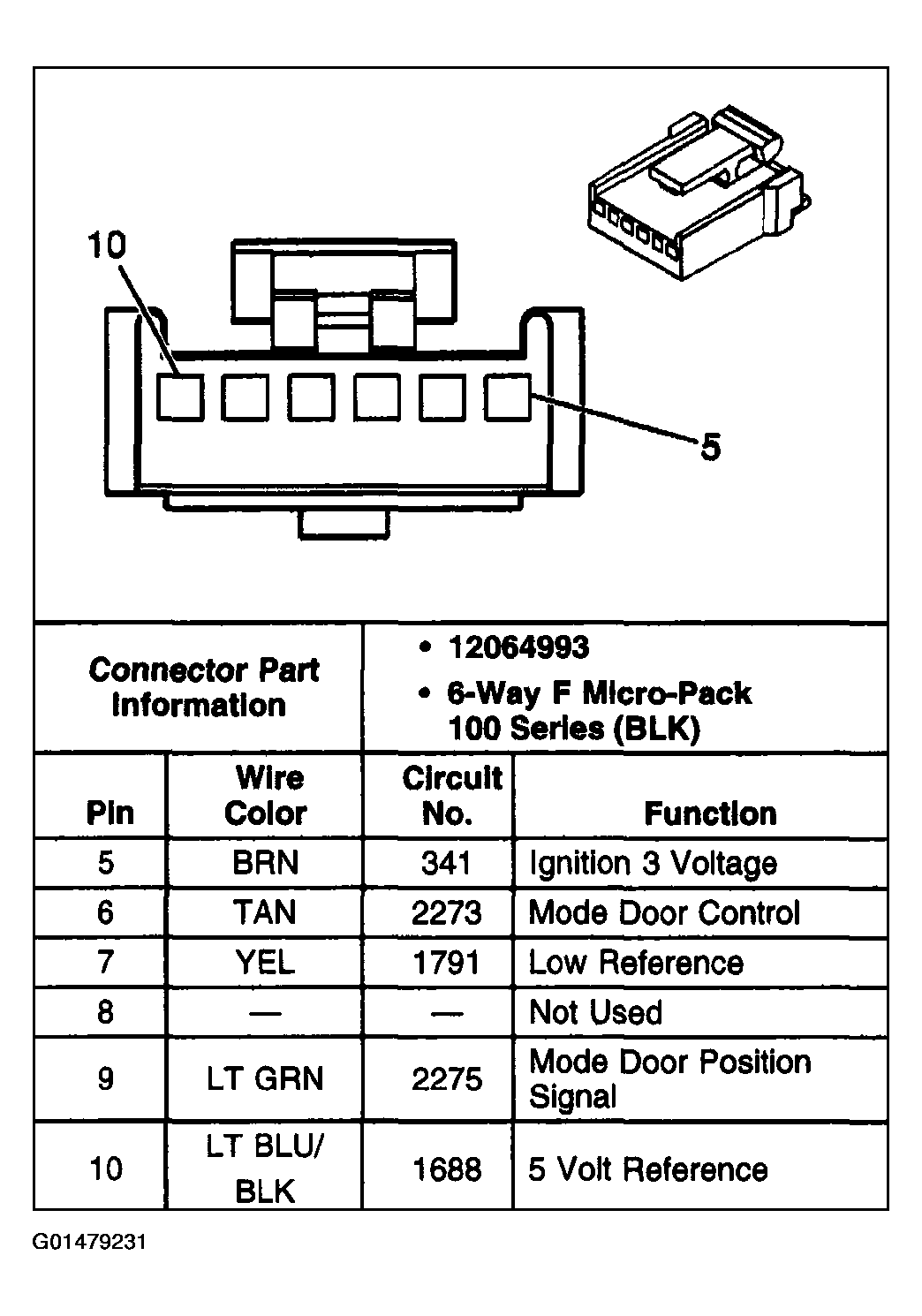

Fig 10: Mode Actuator

G01479231

Courtesy of GENERAL MOTORS CORP.

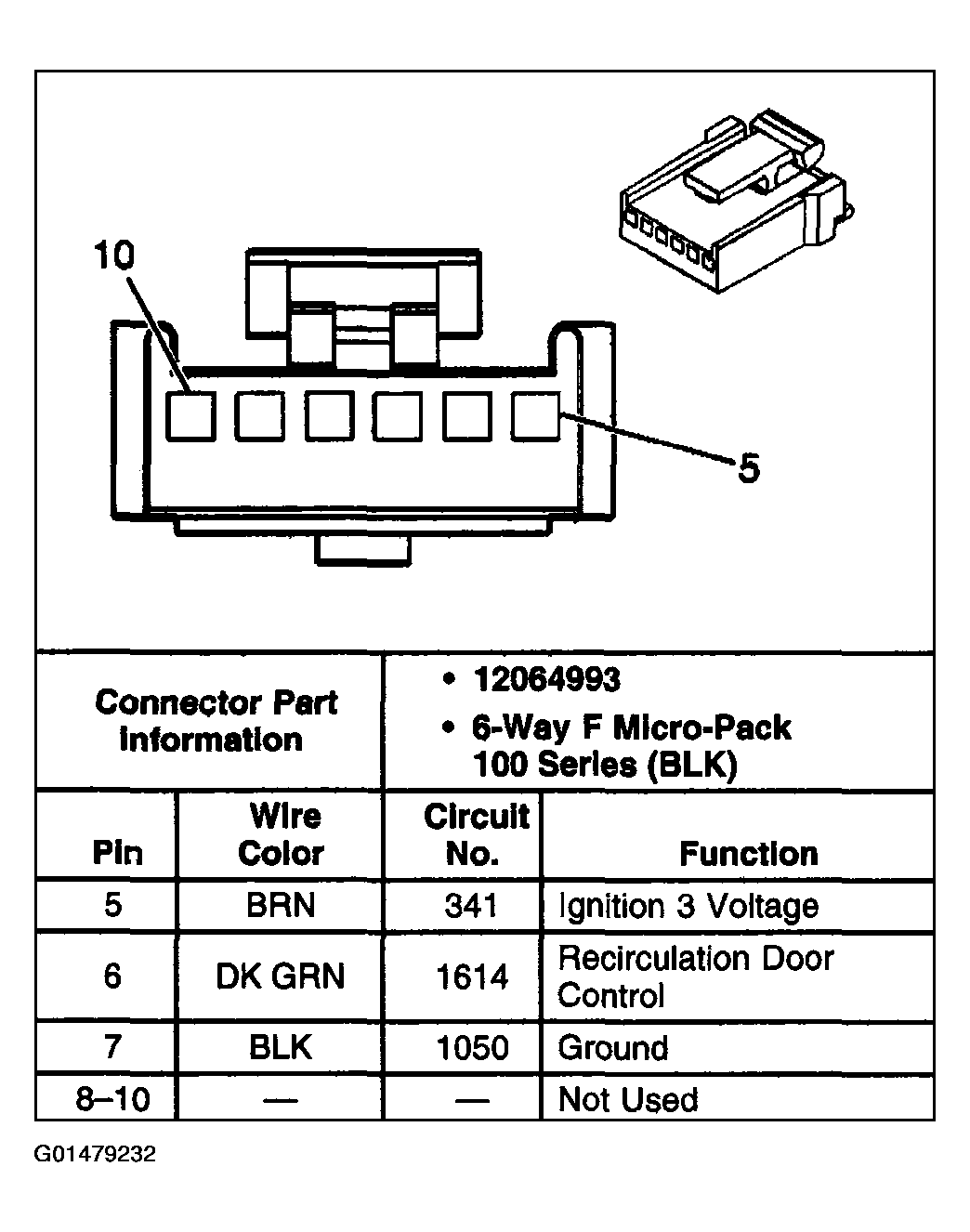

Fig 11: Recirculation Actuator

G01479232

Courtesy of GENERAL MOTORS CORP.
