Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the recirculation door.
  2. Install the recirculation actuator.

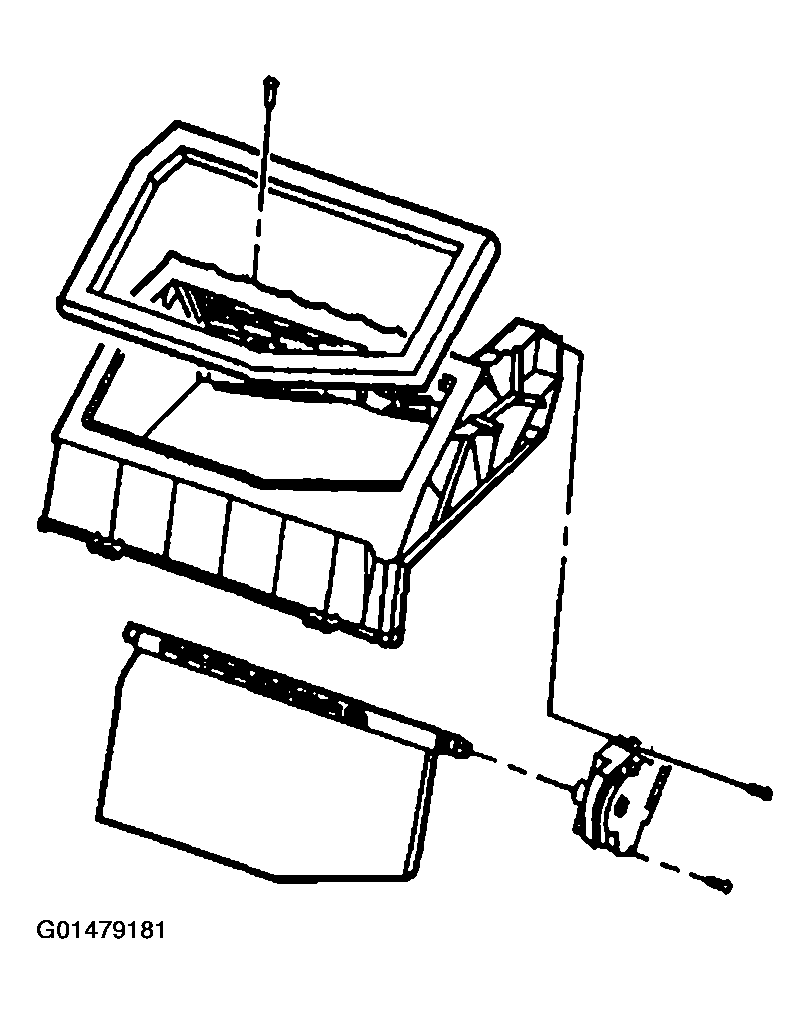

    Fig 1: Install Recirculation Actuator & Door
    G01479181Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the recirculation actuator mounting screws.

    Tighten

    Tighten the screws to 1.9 N.m (17 lb in).

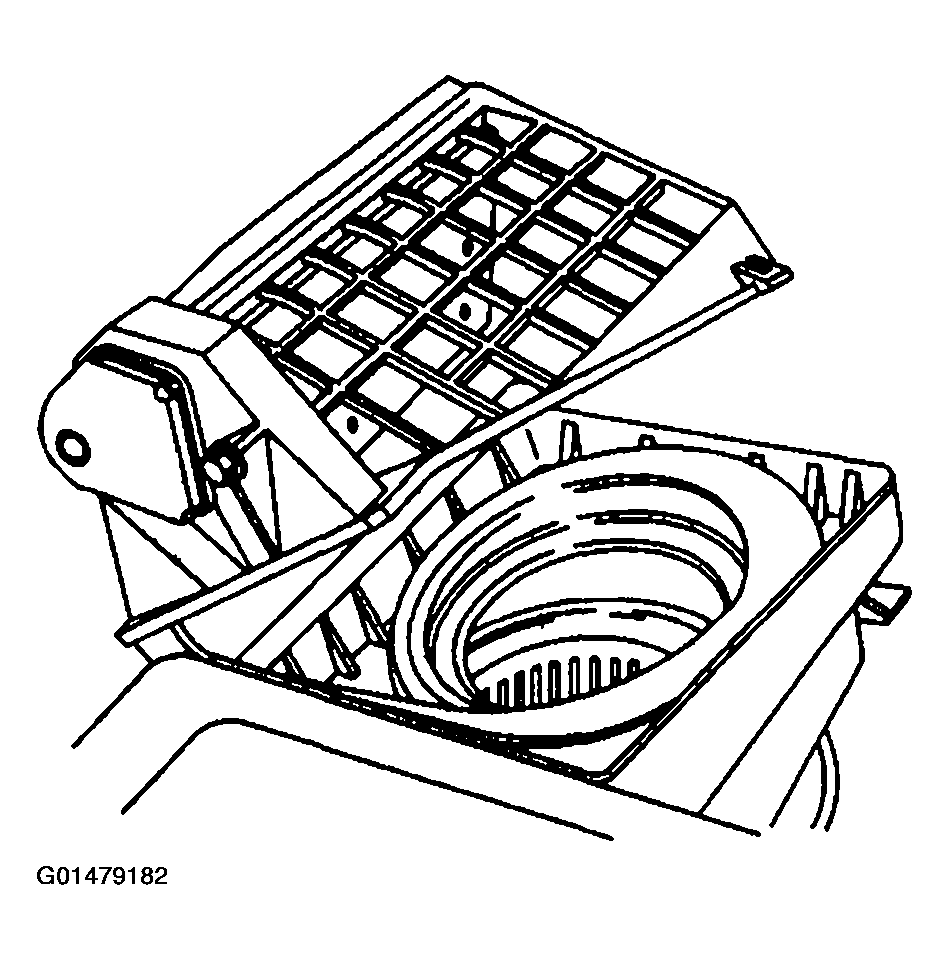

    4. Fig 2: Install Recirculation Actuator Mounting Screws
    G01479182Courtesy of GENERAL MOTORS CORP.
  4. Connect the recirculation actuator electrical connection (1).
  5. Install the HVAC module assembly. Refer to HVAC Module Assembly Replacement .

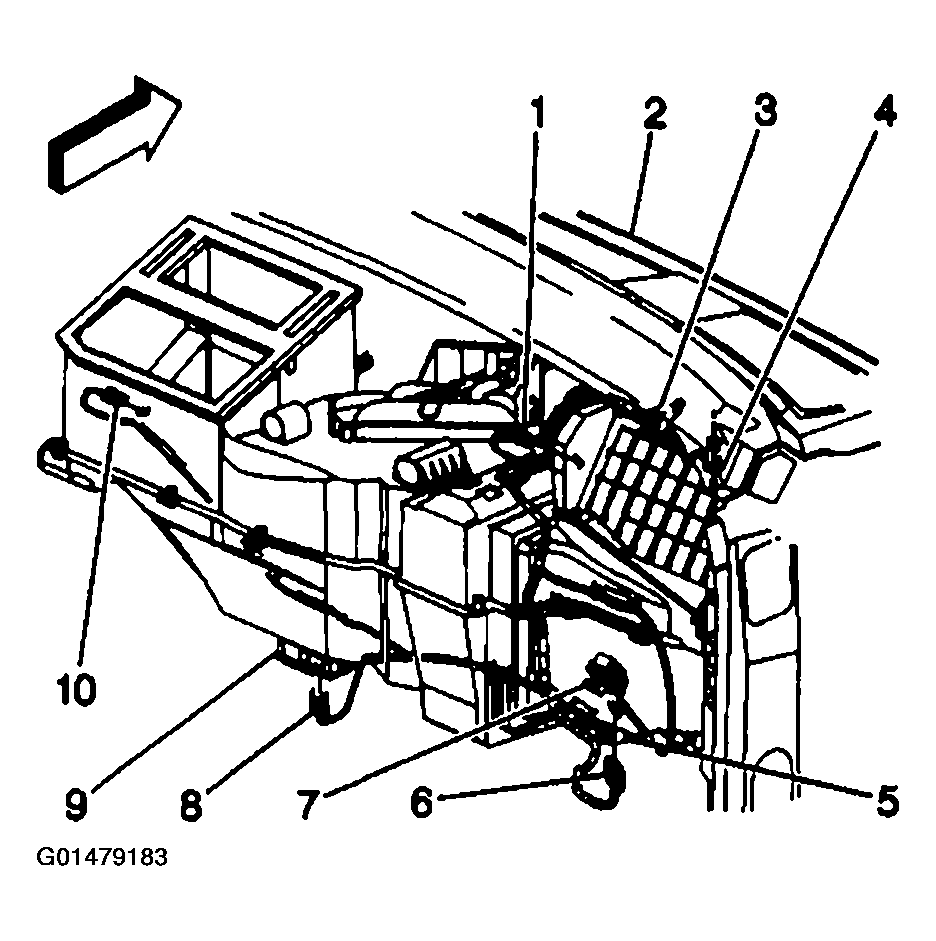

Fig 3: Connect Recirculation Actuator Electrical Connection
G01479183Courtesy of GENERAL MOTORS CORP.
