Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the mode door (1) to the air distribution housing (1).

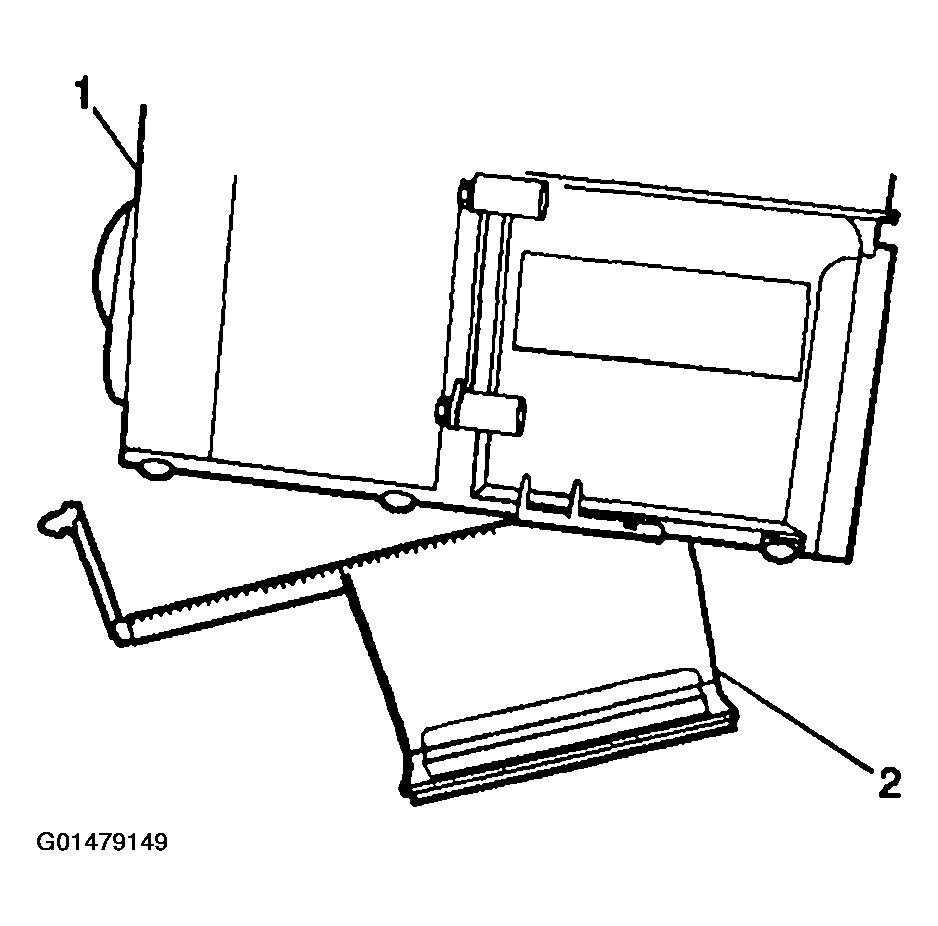

    Fig 1: Install Mode Door To Air Distribution Housing
    G01479149Courtesy of GENERAL MOTORS CORP.
  2. Install the air distribution housing (1) to the HVAC module assembly (2).
    NOTE: Refer to FASTENER NOTICE .
  3. Install the screws to the air distribution housing (1).

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  4. Install the wiring harness to the air distribution housing (1).

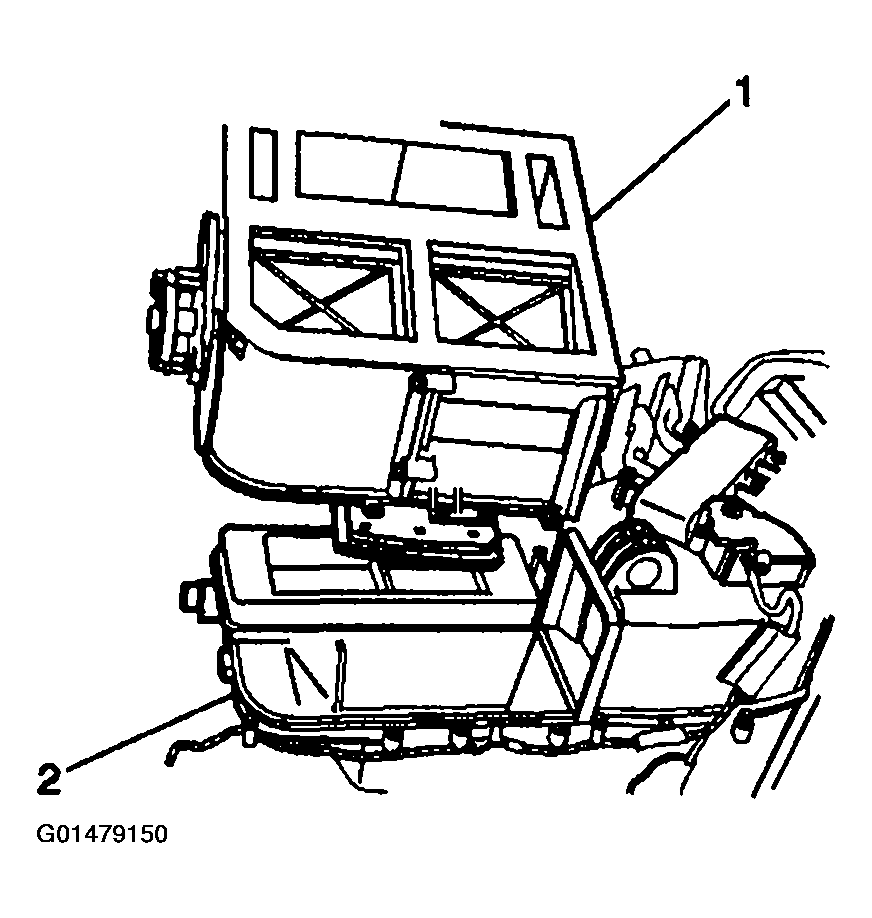

    Fig 2: Install Air Distribution Housing To HVAC Module Assembly
    G01479150Courtesy of GENERAL MOTORS CORP.
  5. Connect the electrical connector (3) to the mode actuator (4).
  6. Install the screws to the mode actuator (4).
  7. Install the mode actuator (4) to the HVAC module assembly (1).
  8. Install the HVAC module assembly. Refer to HVAC Module Assembly Replacement .

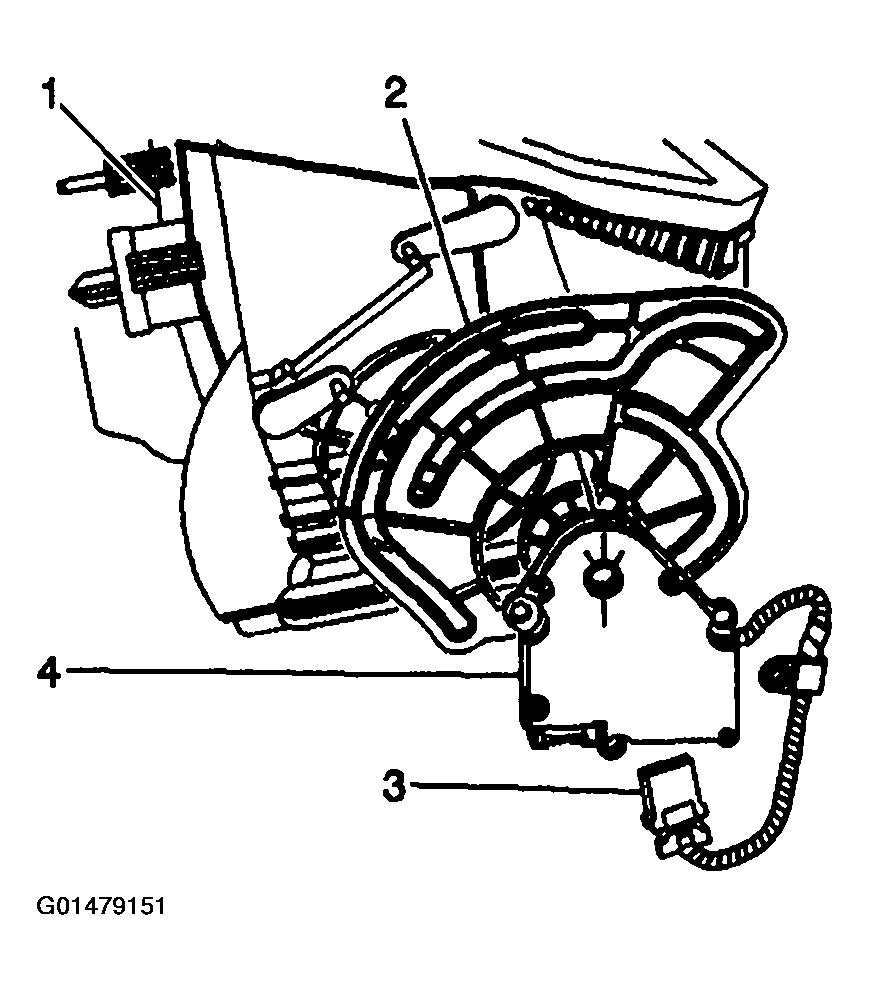

Fig 3: Electrical Connector, Mode Actuator & HVAC Module Assembly
G01479151Courtesy of GENERAL MOTORS CORP.
