Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the outlet heater hose.

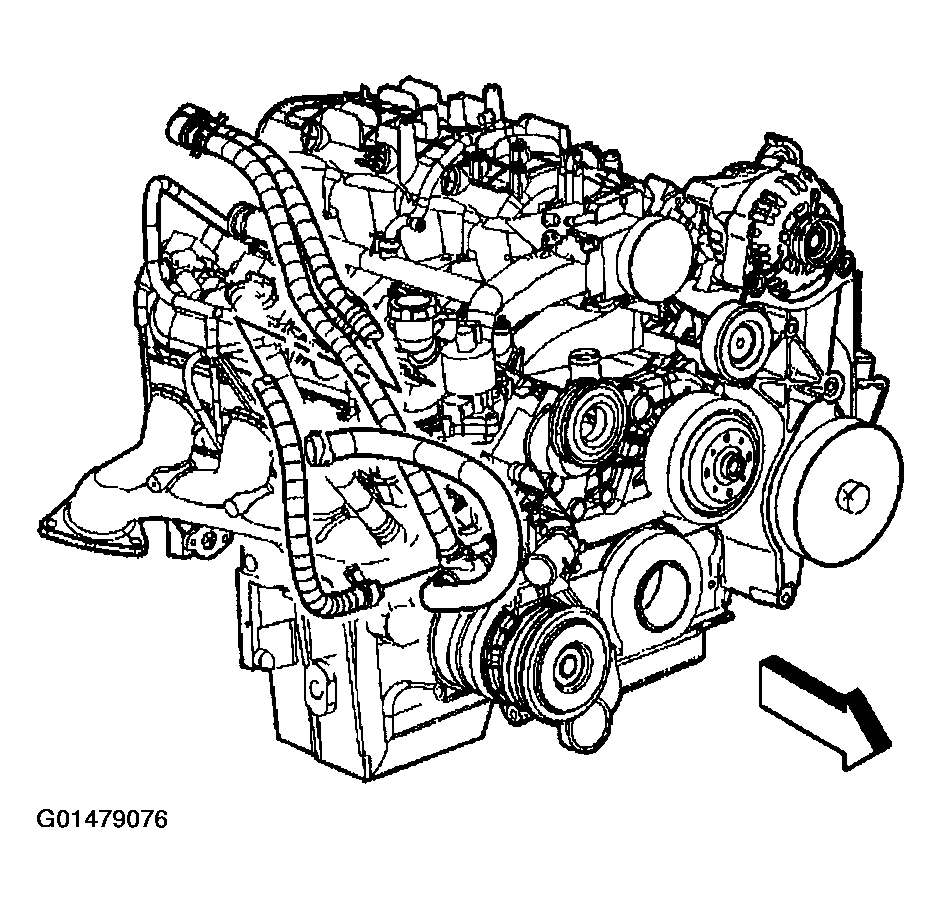

    Fig 1: Install Outlet Heater Hose
    G01479076Courtesy of GENERAL MOTORS CORP.
  2. Install the outlet heater hose to the engine.
  3. Connect the outlet heater hose to the heater core. Firmly push the quick connect onto the heater core pipe until you hear an audible click.
  4. Install the heater and surge tank hose to the mounting clip.
  5. Install the air intake tube.
  6. Fill the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM .

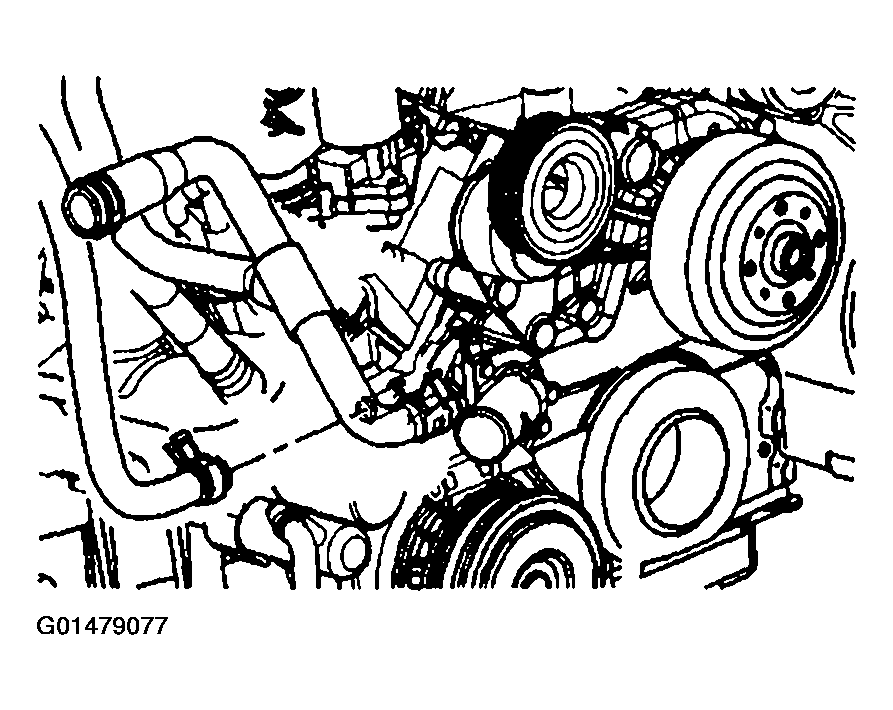

    Fig 2: Install Outlet Heater Hose To Engine
    G01479077Courtesy of GENERAL MOTORS CORP.
