Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the outlet heater hose (1).
  2. Install the outlet heater hose to the radiator.

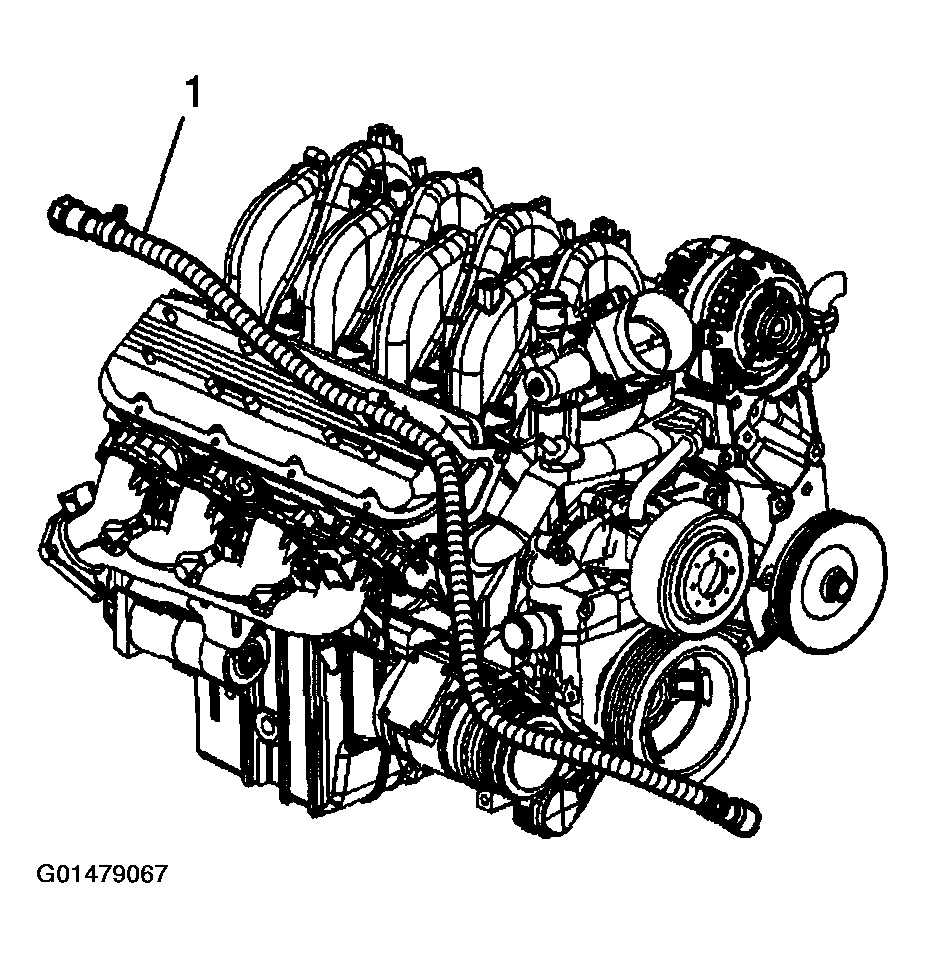

    Fig 1: Install Outlet Heater Hose
    G01479067Courtesy of GENERAL MOTORS CORP.
  3. Connect the heater and surge tank hoses to the heater core.

    Firmly push the quick connect onto the heater core pipe until you hear an audible click.

  4. Install the heater and surge tank hose to the mounting clip.
  5. Install the air intake tube.
  6. Fill the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM .
    Fig 2: Install Heater Hose From Heater Core Inlet Using J 43181
    G01479068Courtesy of GENERAL MOTORS CORP.
