Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the heater/vent module. Refer to Heater/Vent Module Replacement .
  2. Remove the heater core cover screws.
  3. Remove the heater core cover.

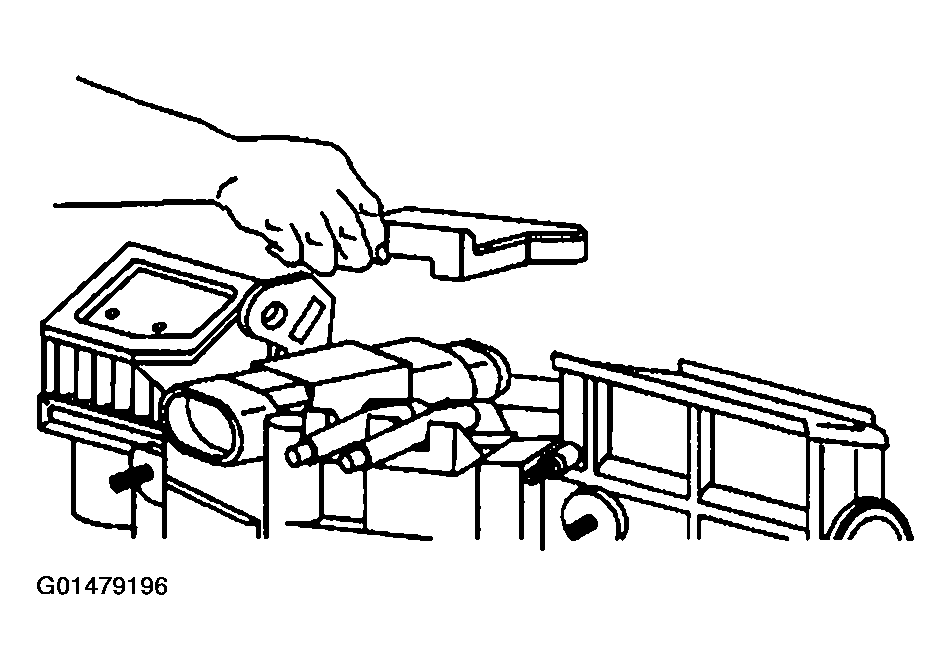

    Fig 1: Remove Heater Core Cover & Screws
    G01479196Courtesy of GENERAL MOTORS CORP.
  4. Remove the heater core.

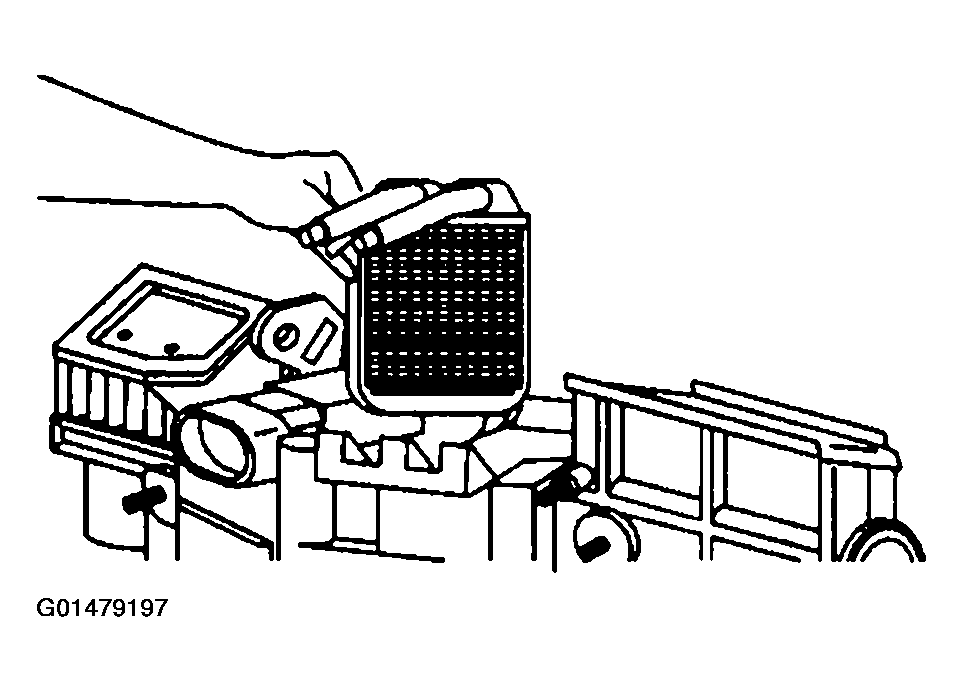

    Fig 2: Remove Heater Core
    G01479197Courtesy of GENERAL MOTORS CORP.
