Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Recover the refrigerant from the A/C system.

    Refer to Refrigerant Recovery and Recharging .

  2. Remove the evaporator tube nut from the evaporator.
  3. Remove the evaporator tube from the evaporator.

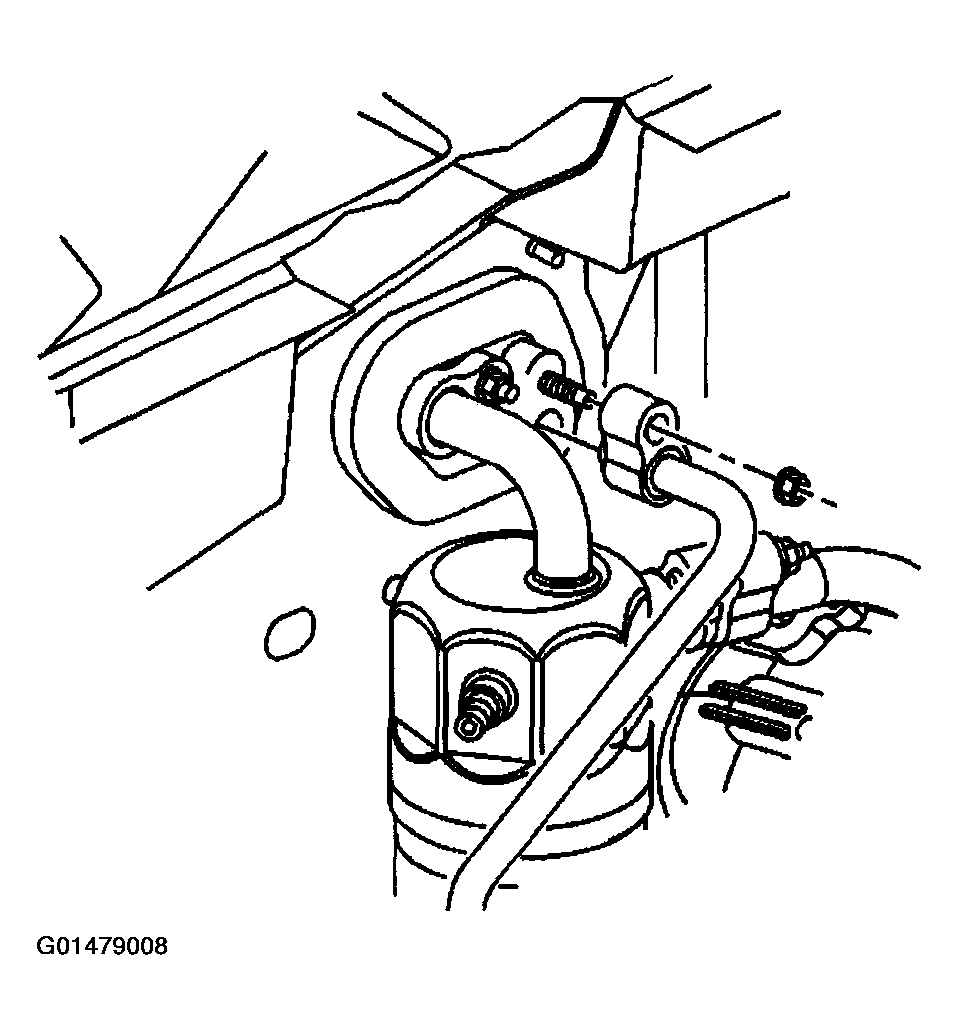

    Fig 1: Removing Evaporator Tube & Nut From Evaporator
    G01479008Courtesy of GENERAL MOTORS CORP.
  4. Remove the right park/turn signal lamp. Refer to PARK/TURN SIGNAL LAMP REPLACEMENT (OLD STYLE) or PARK/TURN SIGNAL LAMP REPLACEMENT (NEW STYLE) .
  5. Remove the grille from the vehicle. Refer to GRILLE REPLACEMENT (OLD STYLE) , GRILLE REPLACEMENT (NEW STYLE GMC) or GRILLE REPLACEMENT (NEW STYLE CHEVROLET) .
  6. Remove the evaporator tube nut from the condenser.
  7. Remove the evaporator tube from the condenser.
  8. Remove the evaporator tube from the vehicle.
  9. Discard all of the used sealing washers. Cap all of the open connections.

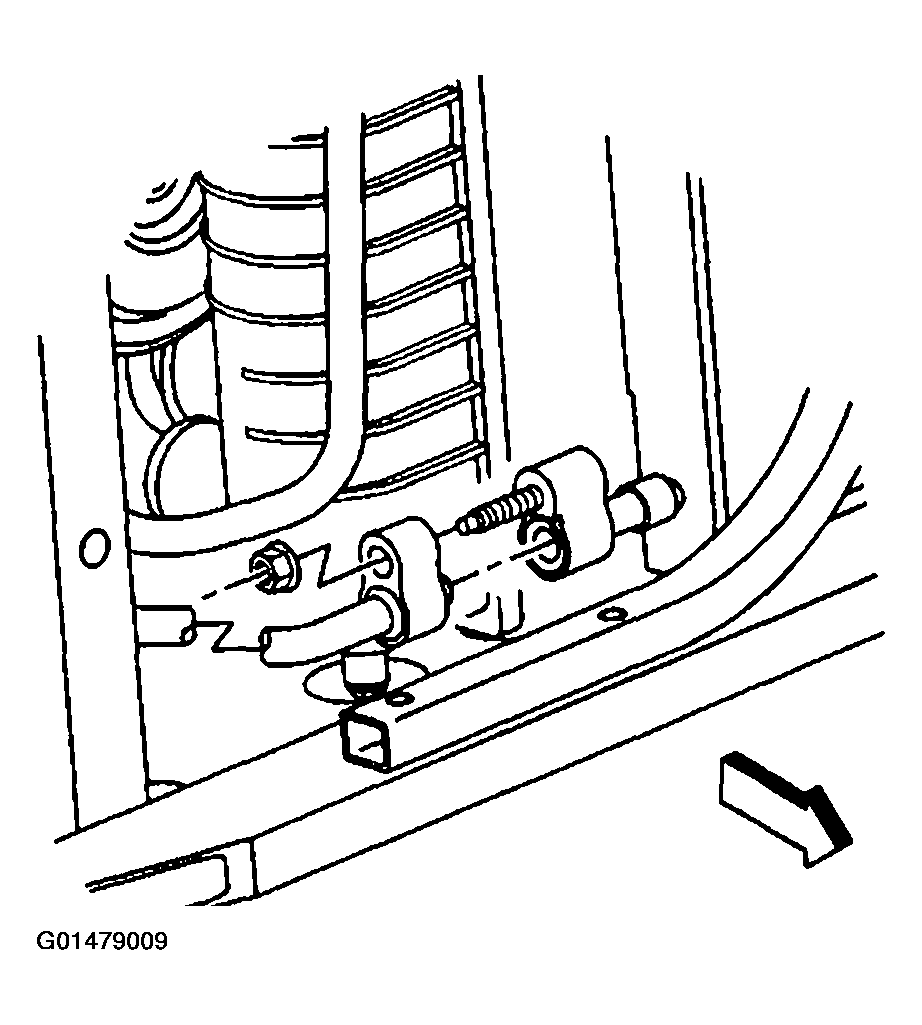

    Fig 2: Removing Evaporator Tube & Nut From Condenser
    G01479009Courtesy of GENERAL MOTORS CORP.
