Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Recover the refrigerant. Refer to Refrigerant Recovery and Recharging .
  2. Remove the discharge hose mounting bolt (2) from the A/C compressor.

    Discard the bolt.

  3. Remove the discharge hose (5) from the A/C compressor.
  4. Remove the upper radiator air baffle. Refer to RADIATOR AIR BAFFLE AND DEFLECTOR REPLACEMENT - UPPER .

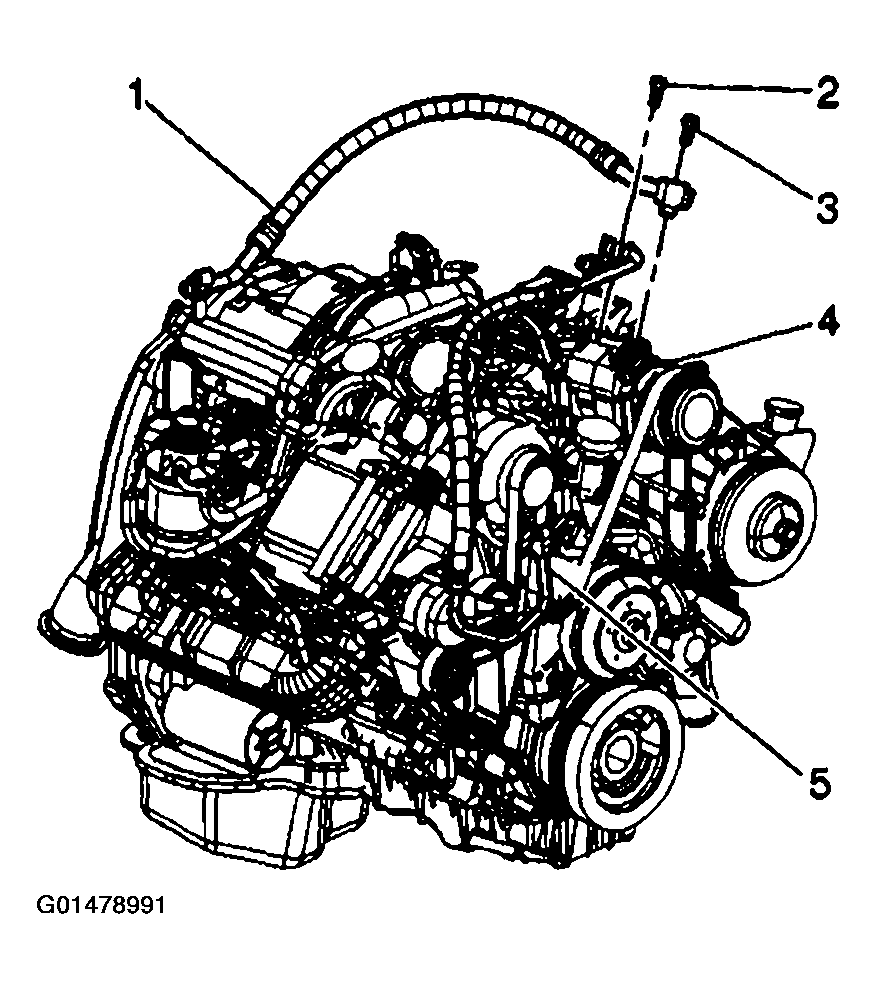

    5. Fig 1: Discharge Hose & Mounting Bolt
    G01478991Courtesy of GENERAL MOTORS CORP.
  5. Remove the discharge hose nut from the condenser.

    Discard the nut.

  6. Remove the discharge hose from the condenser.
  7. Disconnect the A/C recirculation switch from the discharge hose.
  8. Remove the discharge hose from the vehicle.
  9. Discard all of the used sealing washers. Cap the system openings.

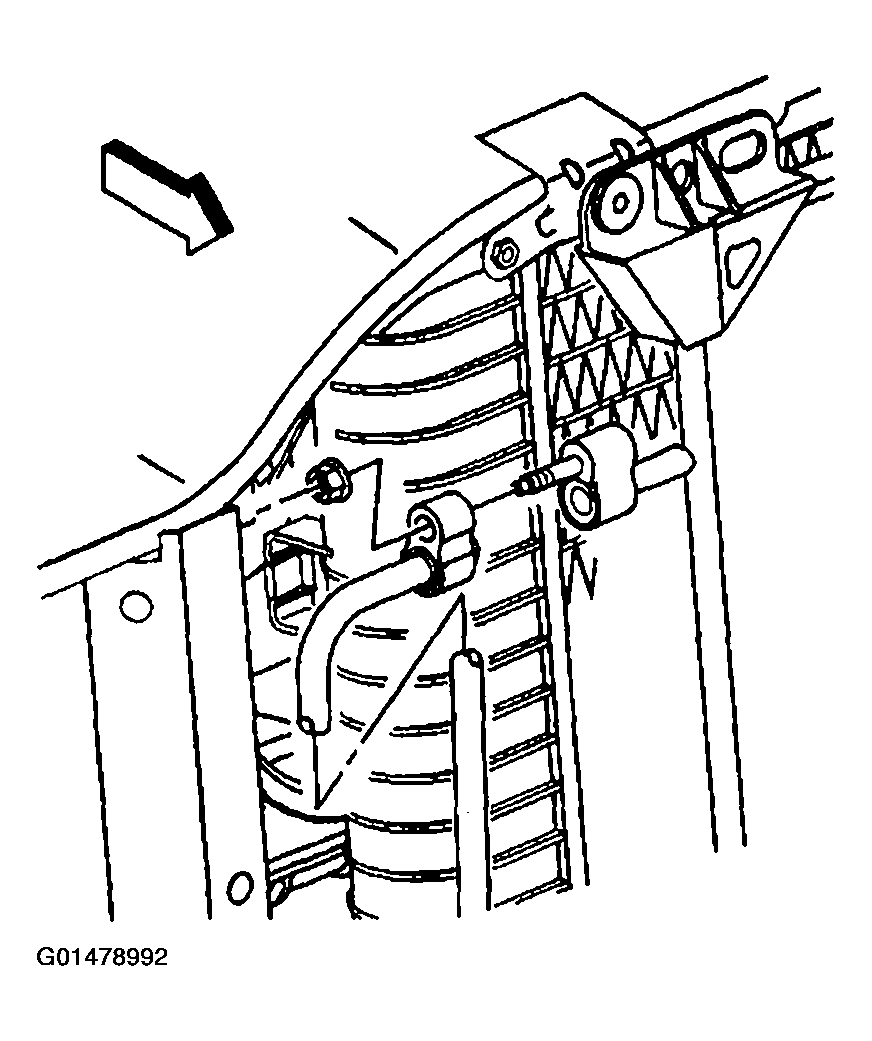

Fig 2: Discharge Hose & Nut
G01478992Courtesy of GENERAL MOTORS CORP.
