Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the discharge hose to the vehicle.
  2. Connect the A/C recirculation switch to the discharge hose.
  3. Install the discharge hose to the condenser using new sealing washers.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the NEW discharge hose nut to the condenser.

    Tighten

    Tighten the nut to 16 N.m (12 lb ft).

  5. Install the upper radiator air baffle. Refer to RADIATOR AIR BAFFLE AND DEFLECTOR REPLACEMENT - UPPER .

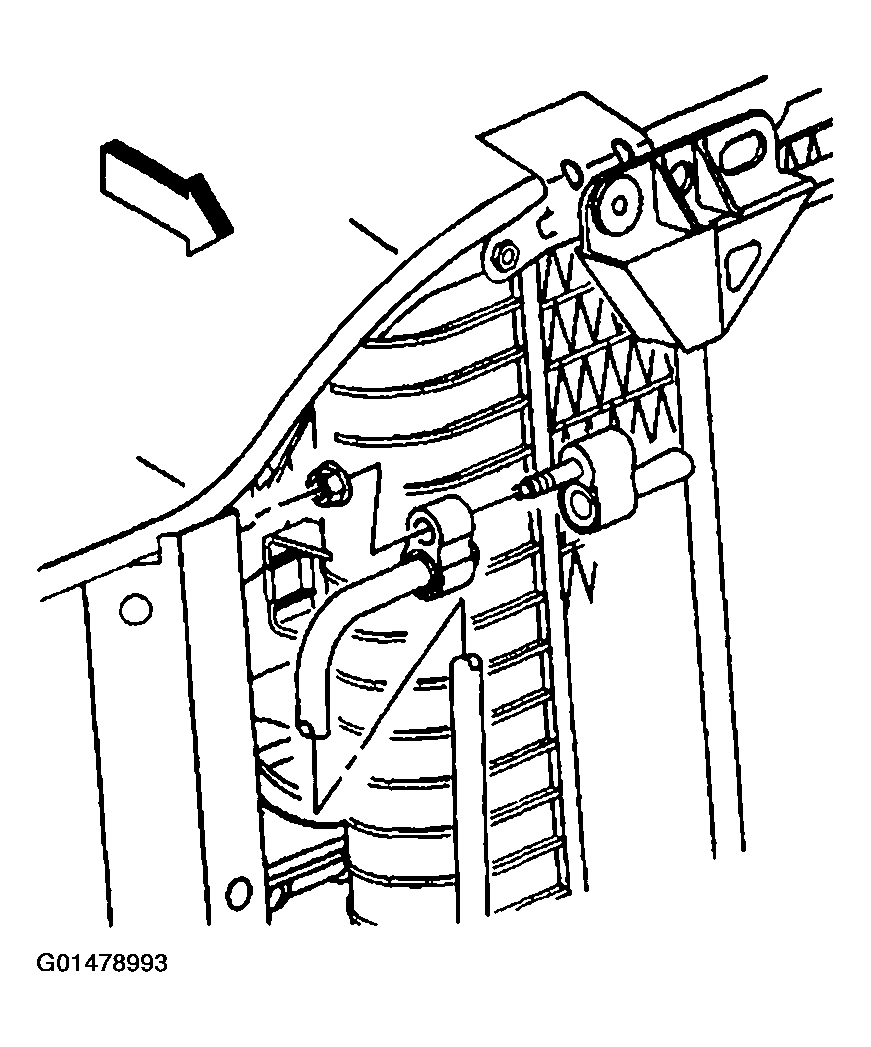

    6. Fig 1: Discharge Hose & Nut
    G01478993Courtesy of GENERAL MOTORS CORP.
  6. Install the discharge hose (5) to the compressor using new sealing washers.
  7. Install the NEW discharge hose mounting bolt (2) to the A/C compressor.

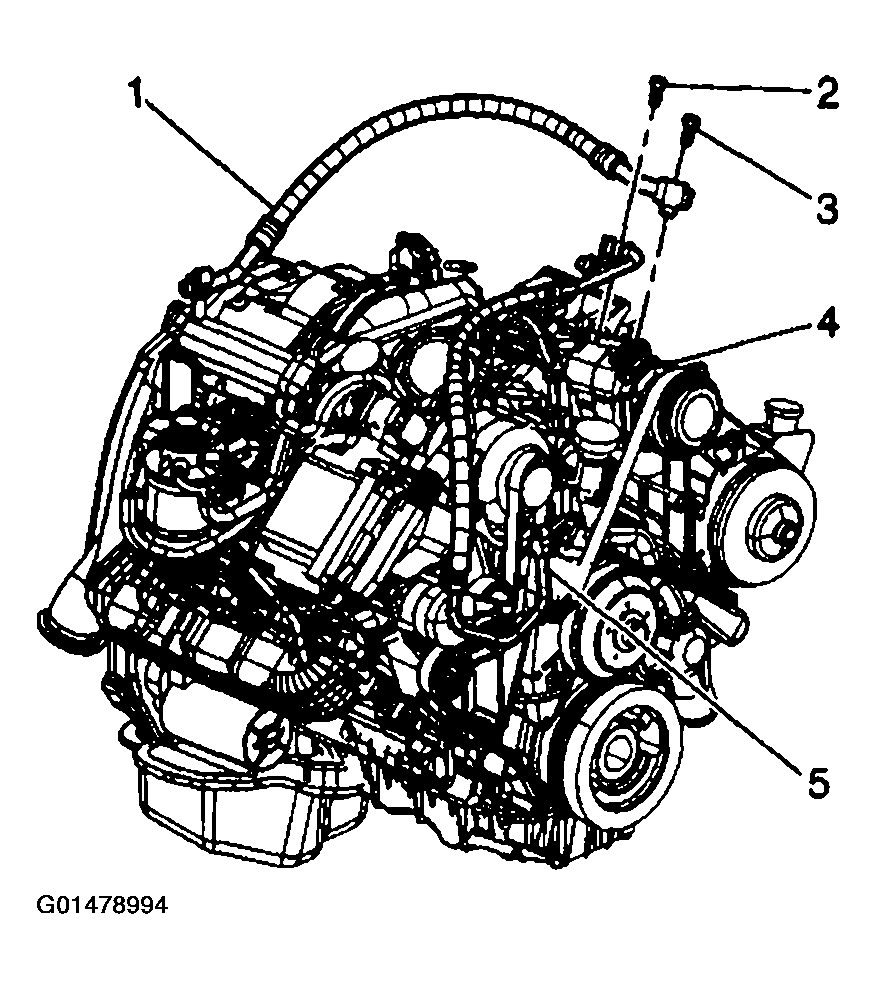

    Fig 2: Discharge Hose & Mounting Bolt
    G01478994Courtesy of GENERAL MOTORS CORP.

    Tighten

    Tighten the bolt to 16 N.m (12 lb ft).

  8. Evacuate and recharge the A/C system. Refer to Refrigerant Recovery and Recharging .
  9. Leak test the fittings of the component using the J 39400-A.
