Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the HVAC module. Refer to HVAC Module Assembly Replacement .
  2. If equipped remove the heat stakes from the HVAC module with a screw driver and a hammer.

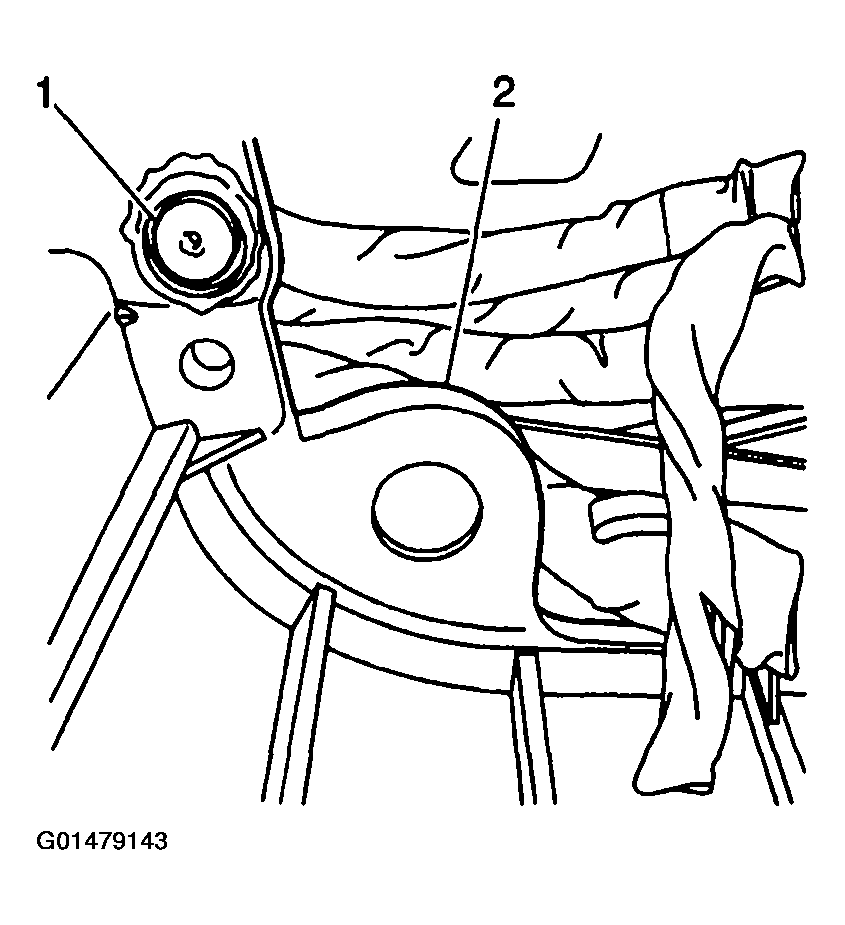

    Fig 1: Identifying Heat Stakes
    G01479143Courtesy of GENERAL MOTORS CORP.
  3. If equipped remove the HVAC module assembly screws.
  4. Separate the HVAC module assembly.
  5. Remove the mode actuator screws.
  6. Remove the mode actuator.
  7. Remove the mode actuator cam assembly.
  8. Remove the defroster door (8).
Fig 2: Remove Defroster Door
G01479144Courtesy of GENERAL MOTORS CORP.
