Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel (I/P) bezel. Refer to BEZEL REPLACEMENT -- INSTRUMENT PANEL (I/P) CLUSTER .
  2. Remove the knee bolster. Refer to KNEE BOLSTER REPLACEMENT .
  3. Remove the air deflector housing from the I/P by prying it out.
  4. Disconnect the electrical connectors.
  5. Remove the air deflector screws.
  6. Remove the air deflector from the housing.

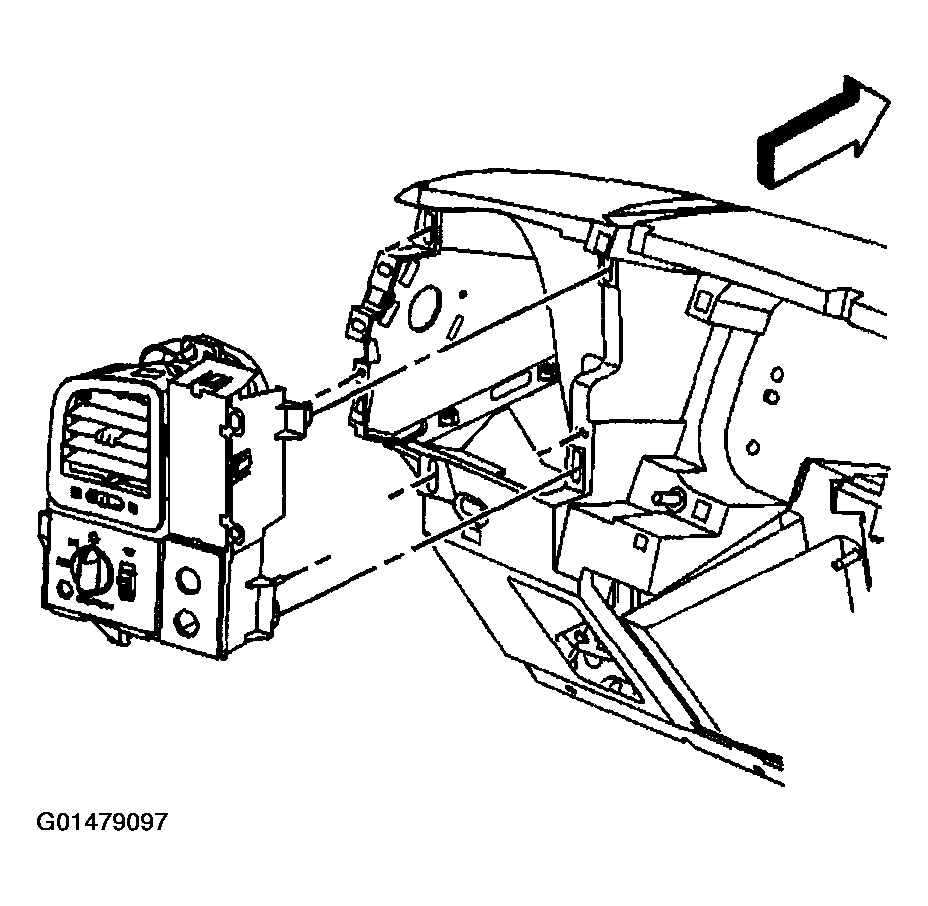

    Fig 1: Remove Air Deflector Housing From I/P
    G01479097Courtesy of GENERAL MOTORS CORP.
