Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the air deflector to the housing.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the retaining screws.

    Tighten

    Tighten the screws to 1.6 N.m (14 lb in).

  3. Connect the electrical connectors.
  4. Install the air deflector assembly to the I/P.
  5. Remove the knee bolster. Refer to KNEE BOLSTER REPLACEMENT .
  6. Install the I/P bezel. Refer to BEZEL REPLACEMENT -- INSTRUMENT PANEL (I/P) CLUSTER .

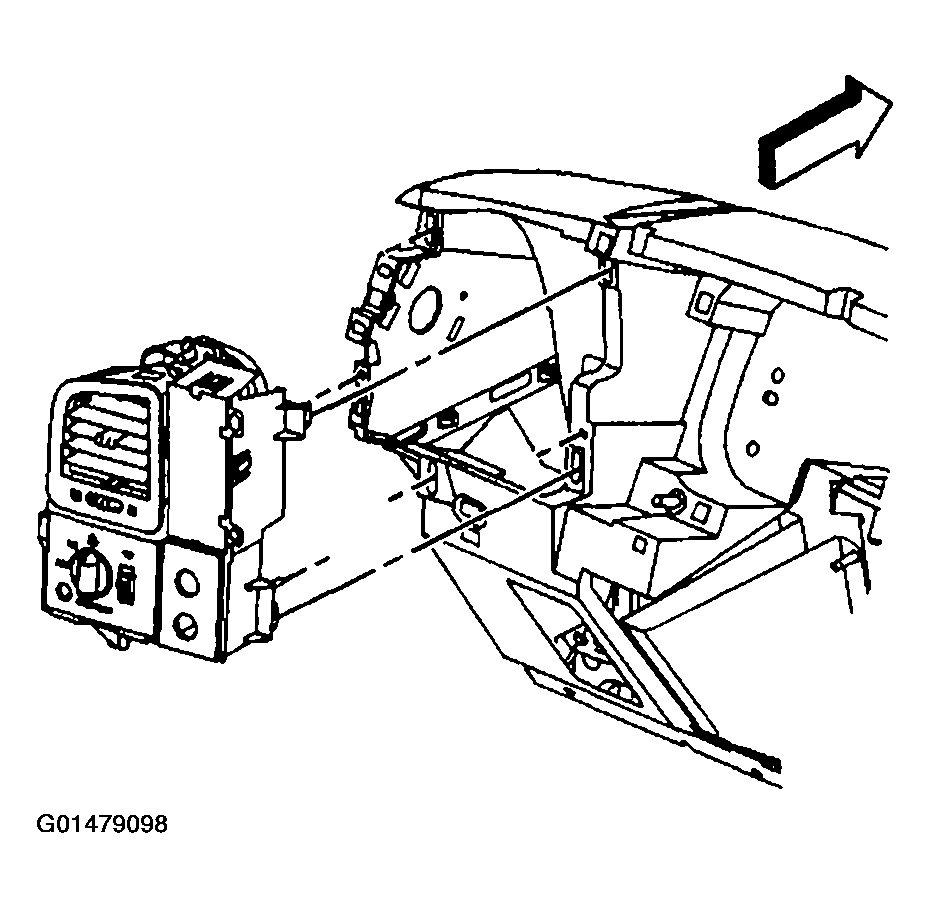

    Fig 1: Install Air Deflector Housing To I/P
    G01479098Courtesy of GENERAL MOTORS CORP.
