Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the Instrument Panel (I/P) bezel. Refer to BEZEL REPLACEMENT -- INSTRUMENT PANEL (I/P) CLUSTER .
  2. Remove the I/P trim panel. Refer to TRIM PANEL REPLACEMENT -- INSTRUMENT PANEL (I/P) UPPER .
  3. Remove the deflector mounting screws.
  4. Remove the deflector from the I/P.

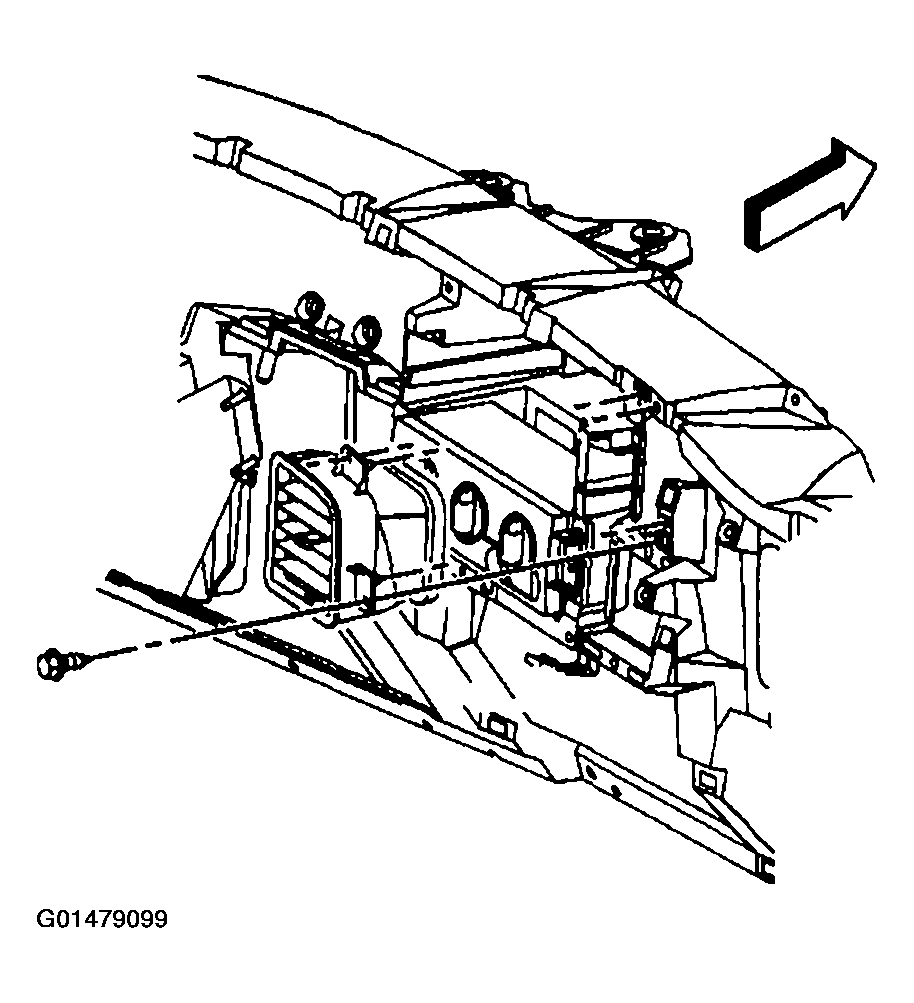

    Fig 1: Remove Deflector & Mounting Screws
    G01479099Courtesy of GENERAL MOTORS CORP.
