Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Add the proper amount of PAG oil to the compressor crankcase. Refer to REFRIGERANT SYSTEM CAPACITIES  .
    NOTE: Refer to FASTENER NOTICE .
  2. Install the A/C compressor drain plug.

    Tighten

    Tighten the drain plug to 20 N.m (15 lb ft).

  3. Install the A/C compressor.
  4. Install the A/C compressor mounting bolts.

    Tighten

    Tighten the bolts to 50 N.m (37 lb ft).

  5. Connect the electrical connection.
  6. Install the A/C discharge hose to the compressor using new sealing washers.

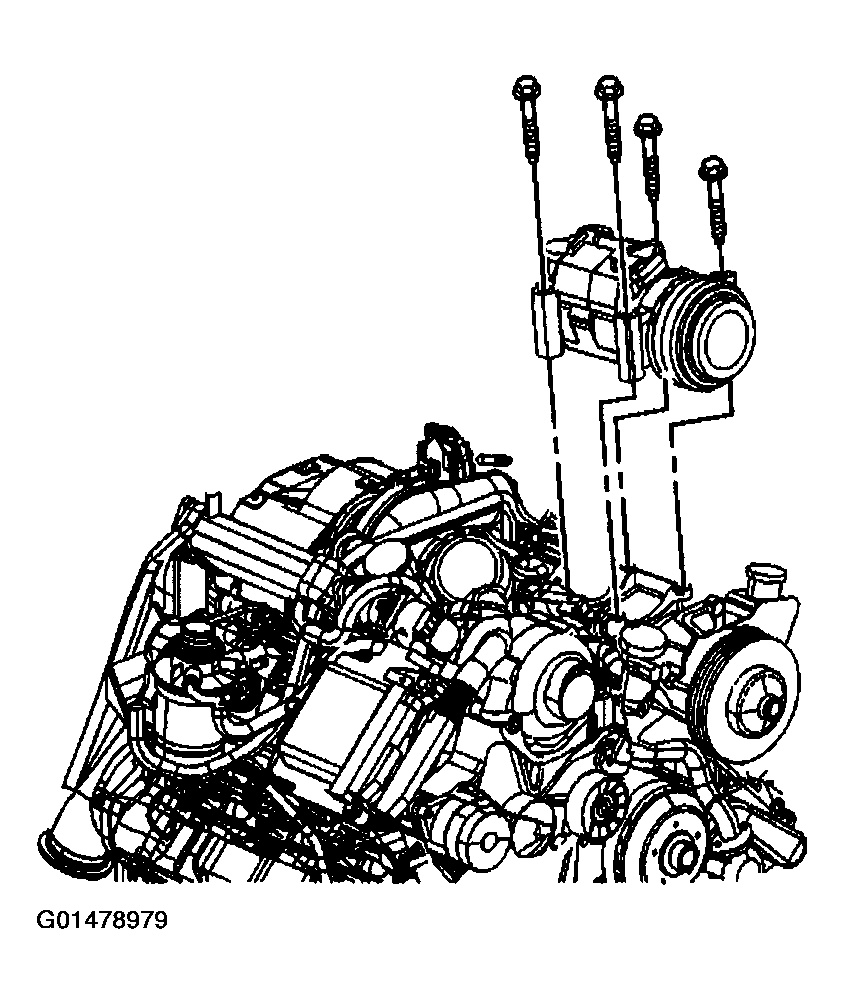

    Fig 1: A/C Compressor & Mounting Bolts
    G01478979Courtesy of GENERAL MOTORS CORP.
  7. Install the A/C discharge hose bolt to the A/C compressor.

    Tighten

    Tighten the bolt to 16 N.m (12 lb ft).

  8. Install the A/C suction hose to the compressor using new sealing washers.
  9. Install the A/C suction hose bolt to the A/C compressor.

    Tighten

    Tighten the bolt to 16 N.m (12 lb ft).

  10. Install the drive belt. Refer to appropriate Engine MECHANICAL article
  11. Evacuate and recharge the A/C system. Refer to Refrigerant Recovery and Recharging .
  12. Leak test the fittings of the component using the J 39400-A.
