Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Add the proper amount of PAG oil to the compressor crankcase. Refer to Refrigerant System Capacities .
  2. Install the A/C compressor (2) to the A/C bracket (1).
    NOTE: Refer to FASTENER NOTICE .
  3. Install the A/C compressor mounting bolts.

    Tighten

    Tighten the bolts to 50 N.m (37 lb ft).

  4. Connect the electrical connector to the A/C compressor.
  5. Install the A/C discharge hose to the compressor using new sealing washers. Refer to Sealing Washer Replacement .
  6. Install the A/C discharge hose bolt to the A/C compressor.

    Tighten

    Tighten the bolt to 16 N.m (12 lb ft).

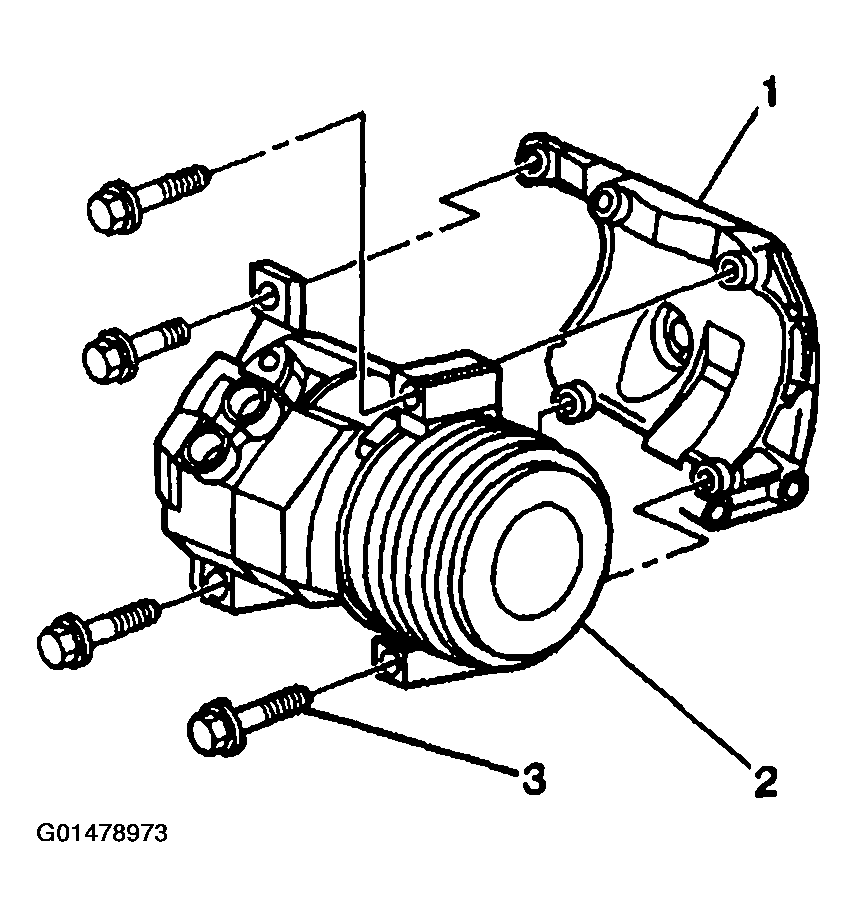

    7. Fig 1: A/C Compressor & Bracket
    G01478973Courtesy of GENERAL MOTORS CORP.
  7. Install the A/C suction hose to the compressor using new sealing washers. Refer to Sealing Washer Replacement .
  8. Install the A/C suction hose bolt to the A/C compressor.

    Tighten

    Tighten the bolt to 16 N.m (12 lb ft).

  9. Install the intake air resonator replacement.
  10. Install the A/C drive belt. Refer to DRIVE BELT REPLACEMENT-AIR CONDITIONING .
  11. Evacuate and recharge the A/C system. Refer to Refrigerant Recovery and Recharging .
  12. Leak test the fittings of the component using the J 39400-A.
