Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the compressor relay (2).
  2. Install the cover to the underhood convenience center (1).

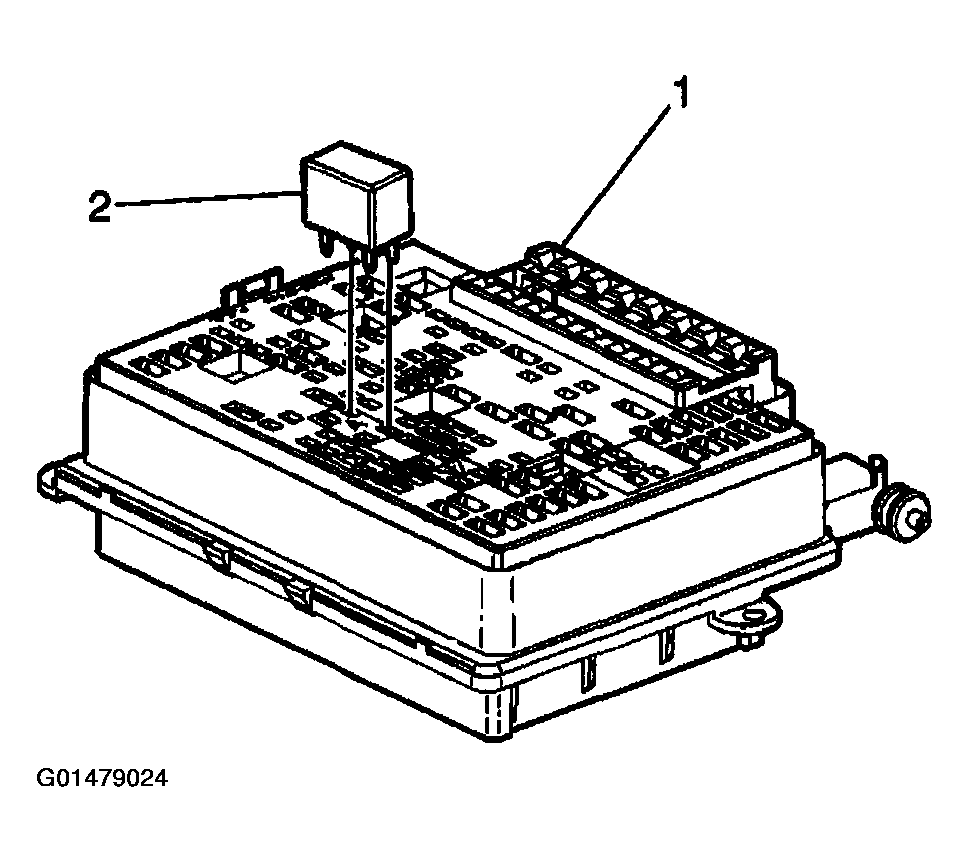

    Fig 1: Underhood Convenience Center & Compressor Relay
    G01479024Courtesy of GENERAL MOTORS CORP.
