Compressor Oil Balancing: Draining

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: Drain and measure as much of the refrigerant oil as possible from the removed compressor.
  1. Drain the oil from both the suction and discharge ports of the removed compressor into a clean, graduated container.

    Rotate the compressor shaft to assist in draining the compressor.

  2. Measure and record the amount of oil drained from the removed compressor.

    This measurement will be used during installation of the replacement compressor.

  3. Properly discard the used refrigerant oil.

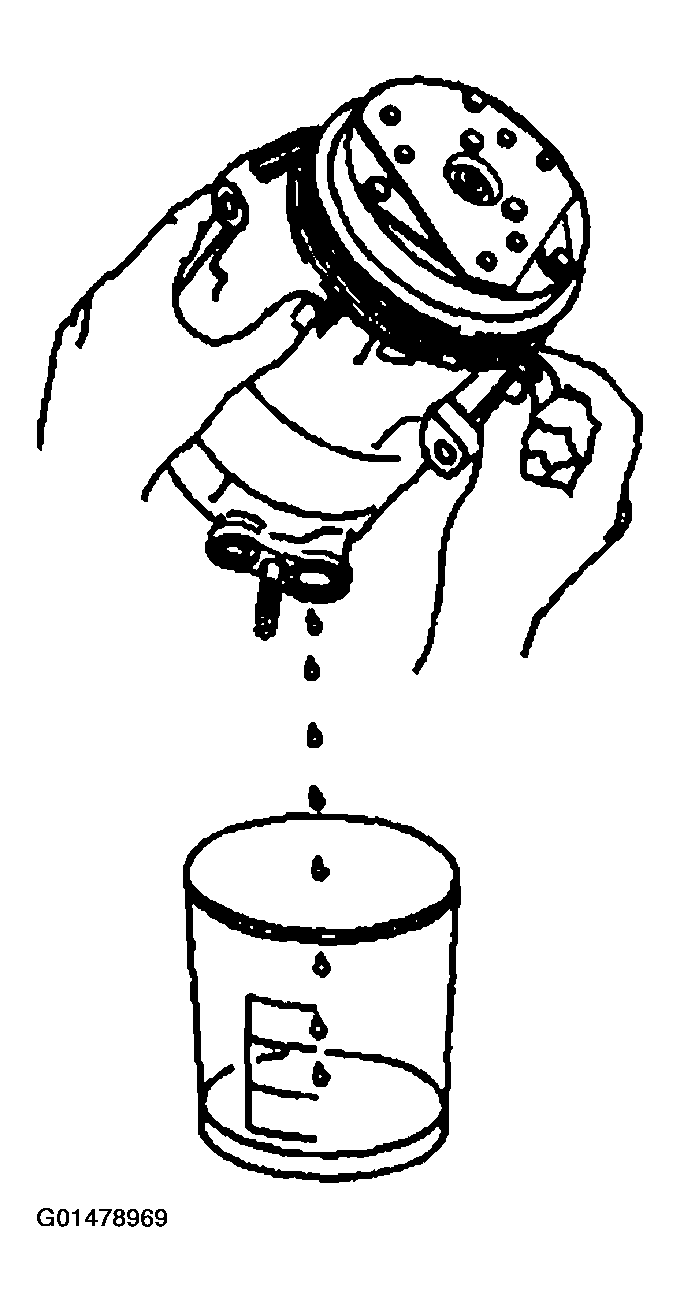

    Fig 1: Draining Refrigerant Oil
    G01478969Courtesy of GENERAL MOTORS CORP.
