Compressor Oil Balancing: Balancing

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: The refrigerant oil in the A/C system must be balanced during compressor replacement.
  1. The replacement compressor is shipped with the total system capacity of refrigerant oil.
  2. Before installing the compressor, the refrigerant oil will have to be partially drained:
    1. 2.1. Refer to the amount of refrigerant oil recorded during the compressor removal.
    2. 2.2. Subtract the amount recorded from the total system capacity. Refer to Refrigerant System Capacities .

      The difference between the total system capacity and the recorded amount is the calculated amount to be drained from the replacement compressor.

  3. Drain the calculated amount of refrigerant oil from the replacement compressor.

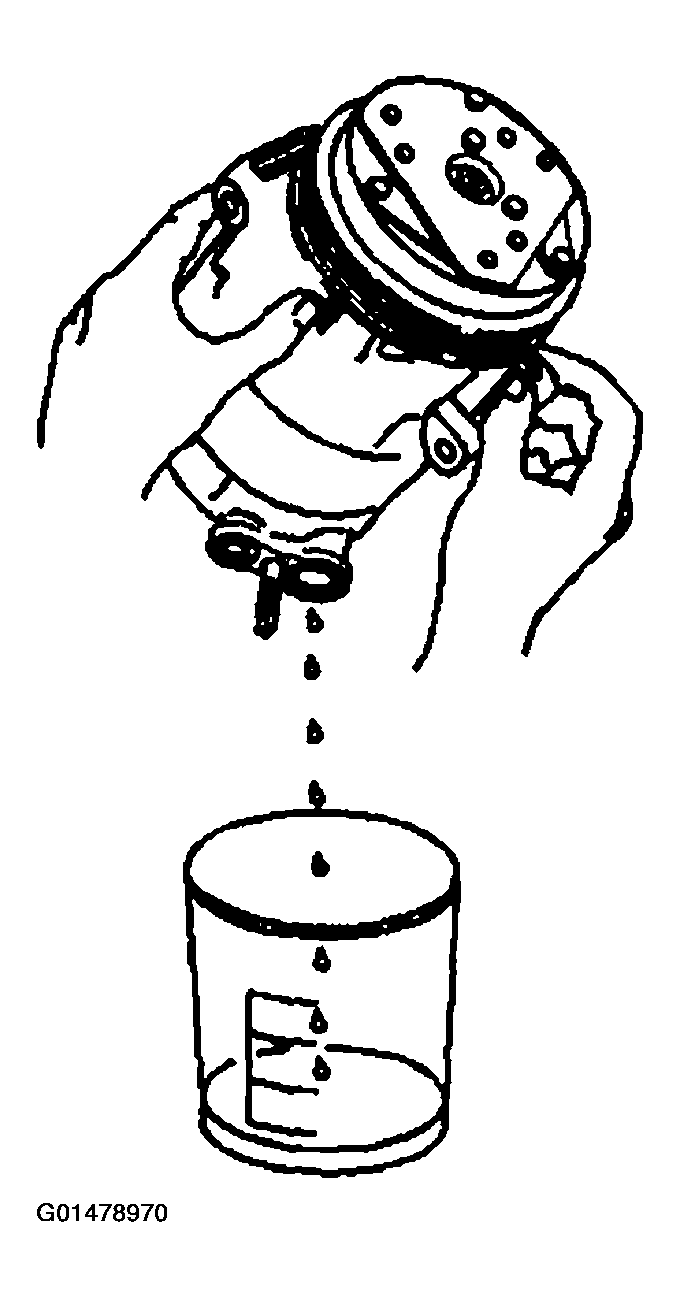

    Fig 1: Draining Refrigerant Oil
    G01478970Courtesy of GENERAL MOTORS CORP.
