Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the A/C compressor. Refer to Compressor Replacement (L18)  or Compressor Replacement (LR4, LM7, and LQ4)  or Compressor Replacement (LB7) .
  2. Remove the A/C belt tensioner bolts.
  3. Remove the A/C belt tensioner.
  4. Remove the A/C compressor bracket mounting bolts.
  5. Remove the A/C compressor bracket.

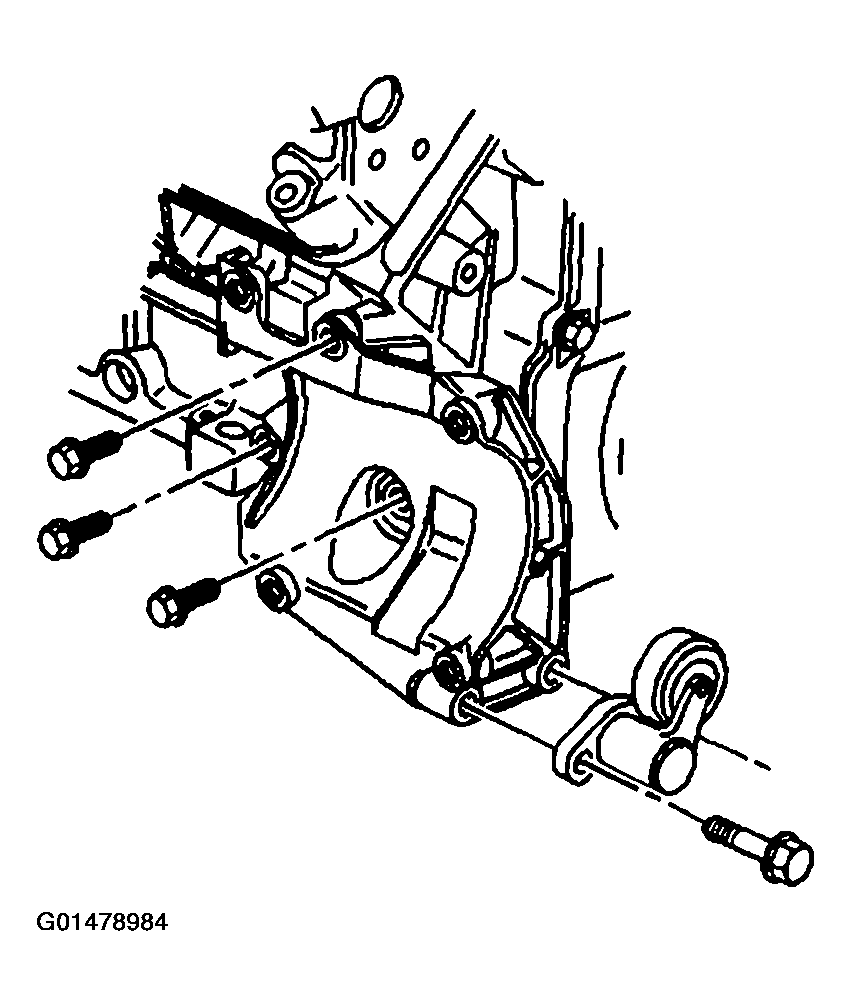

Fig 1: A/C Compressor Bracket & Mounting Bolts
G01478984Courtesy of GENERAL MOTORS CORP.
