Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the blower motor resistor.

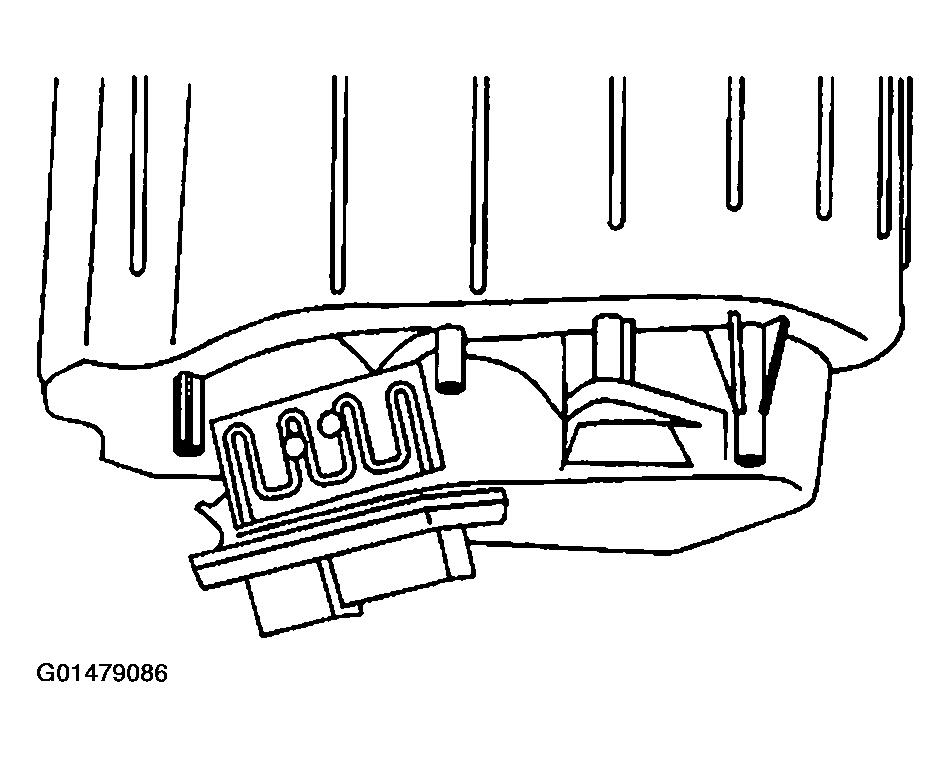

    Fig 1: Install Blower Motor Resistor
    G01479086Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the blower motor resistor retaining screws.

    Tighten

    Tighten the screws to 1.6 N.m (14 lb in).

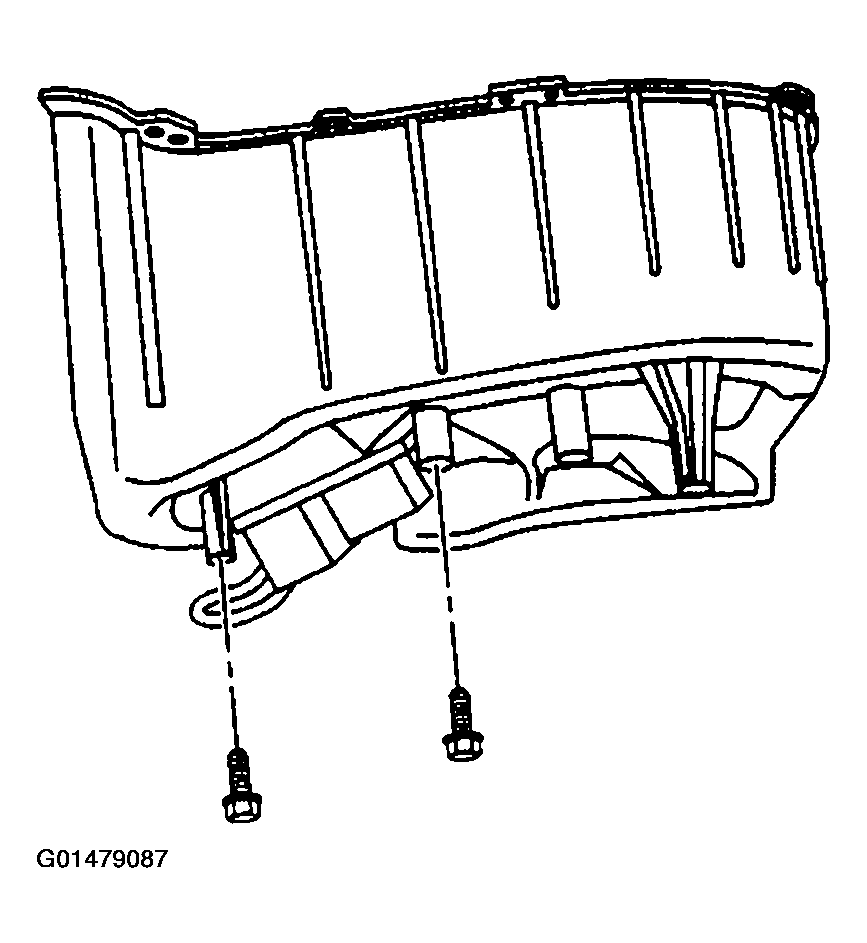

    Fig 2: Install Blower Motor Resistor Retaining Screws
    G01479087Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connection to the blower motor resistor.
  4. Connect the electrical connection to the blower motor.
  5. If equipped, install the IP sound insulator. Refer to INSULATOR REPLACEMENT -- INSTRUMENT PANEL (I/P) .

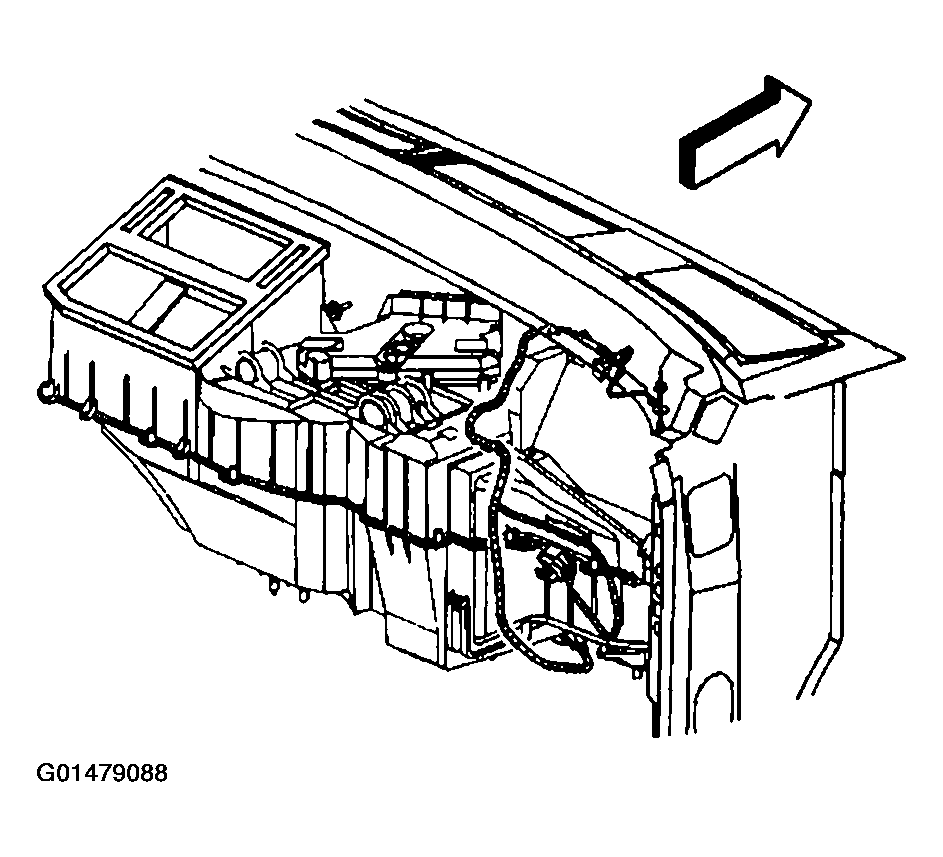

    Fig 3: Connect Electrical Connection To Blower Motor Resistor
    G01479088Courtesy of GENERAL MOTORS CORP.
