Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. If equipped, remove the sound insulator panel. Refer to INSULATOR REPLACEMENT -- INSTRUMENT PANEL (I/P) .
  2. Remove the blower motor insulating cover screws.
  3. Disconnect the electrical connector from the blower motor.
  4. Remove the blower motor insulating cover.

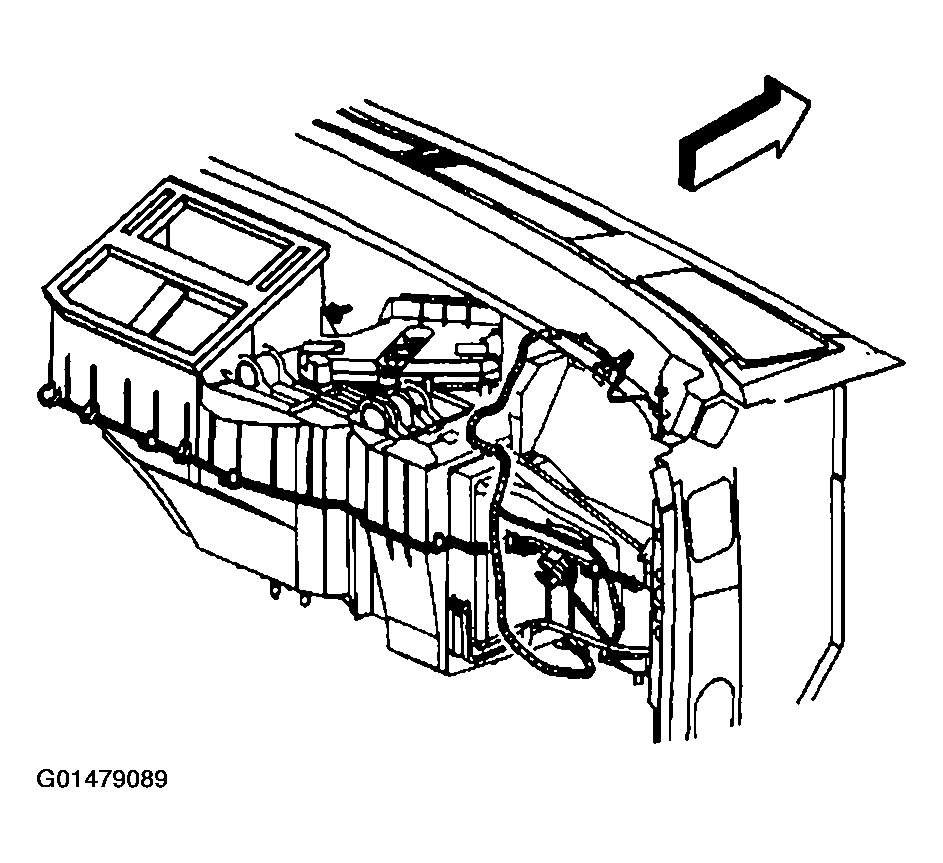

    Fig 1: Disconnect Electrical Connector From Blower Motor
    G01479089Courtesy of GENERAL MOTORS CORP.
  5. Pull the retaining tab down while turning the blower motor counter-clockwise in order to disengage the blower motor from the heater/ventilation module.

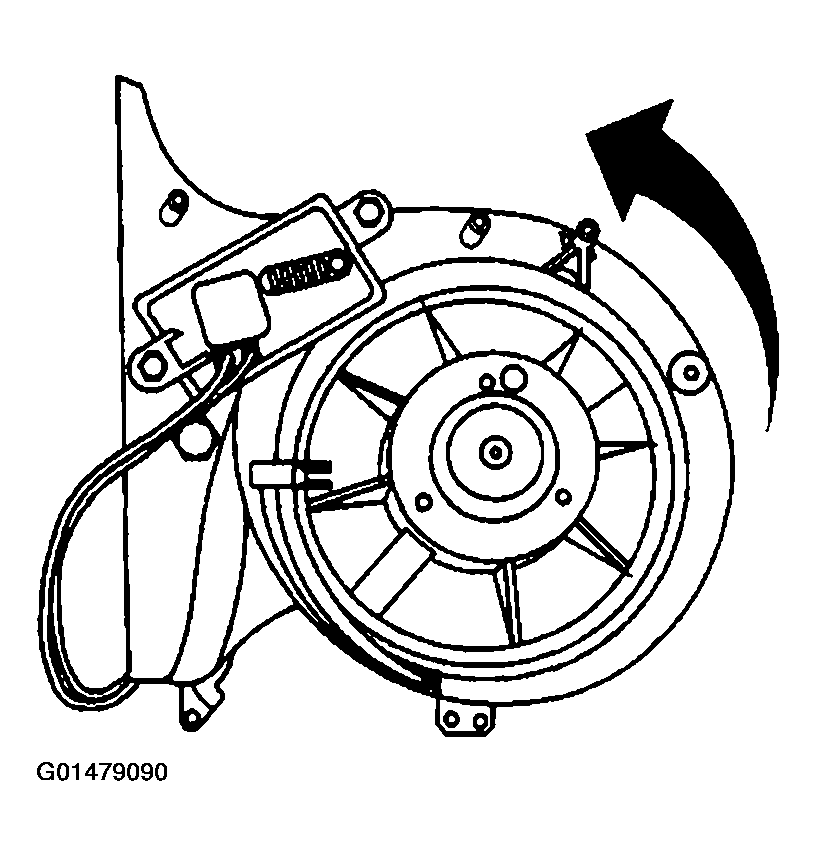

    Fig 2: Turning Blower Motor
    G01479090Courtesy of GENERAL MOTORS CORP.
  6. Remove the blower motor.

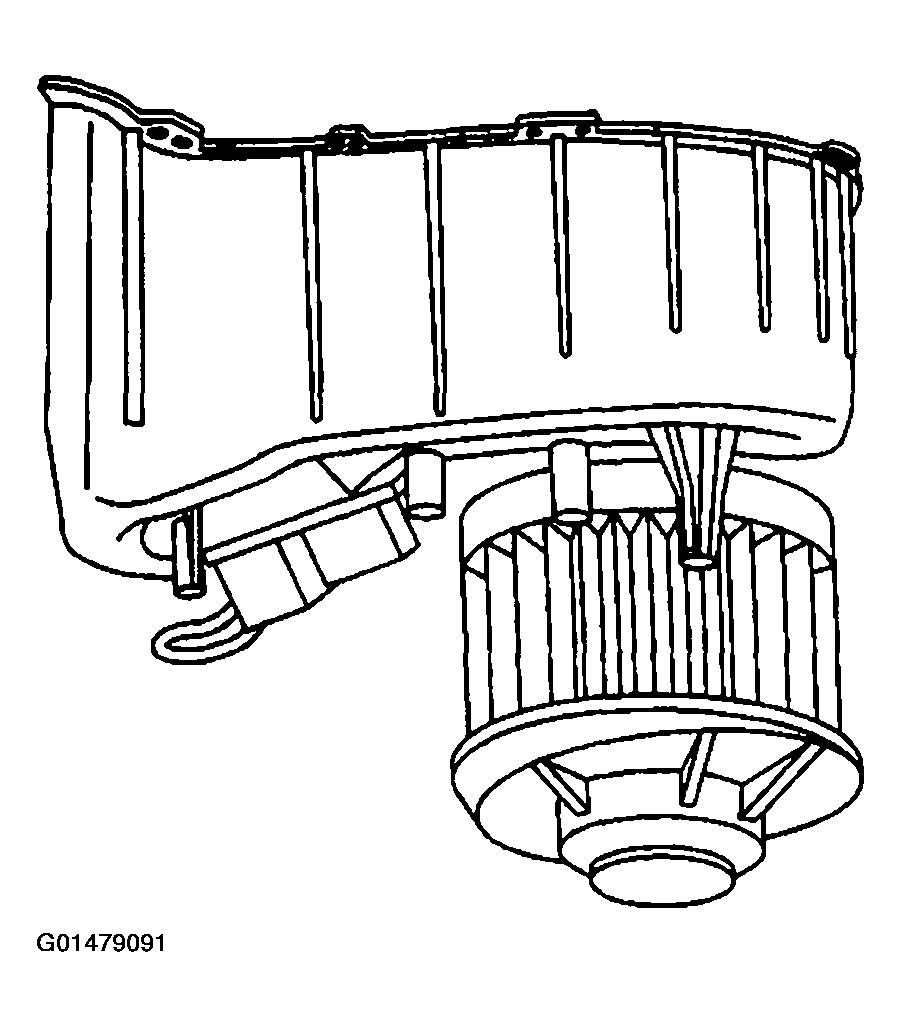

    Fig 3: Remove Blower Motor
    G01479091Courtesy of GENERAL MOTORS CORP.
