Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the blower motor.

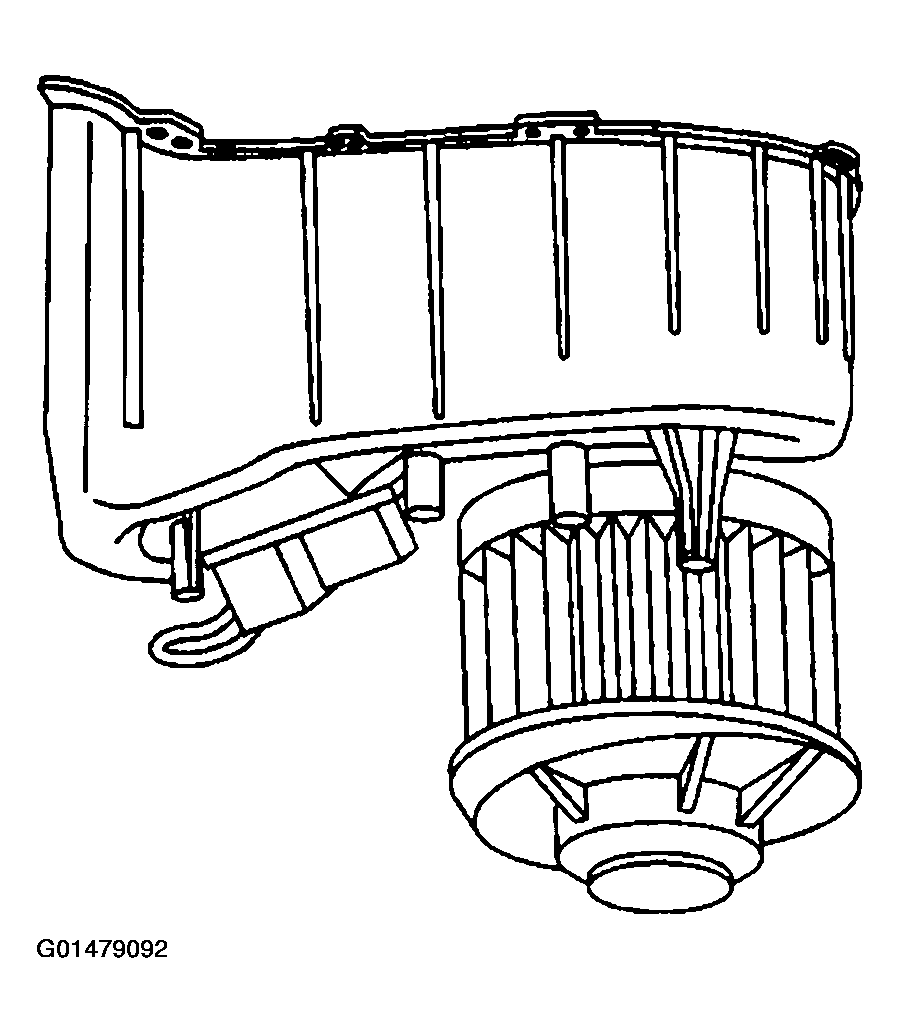

    Fig 1: Install Blower Motor
    G01479092Courtesy of GENERAL MOTORS CORP.
  2. Install the blower motor to the heater/ventilation module. Turn the blower assembly clockwise until the retaining tab locks into place.
  3. Install the blower motor insulating cover.

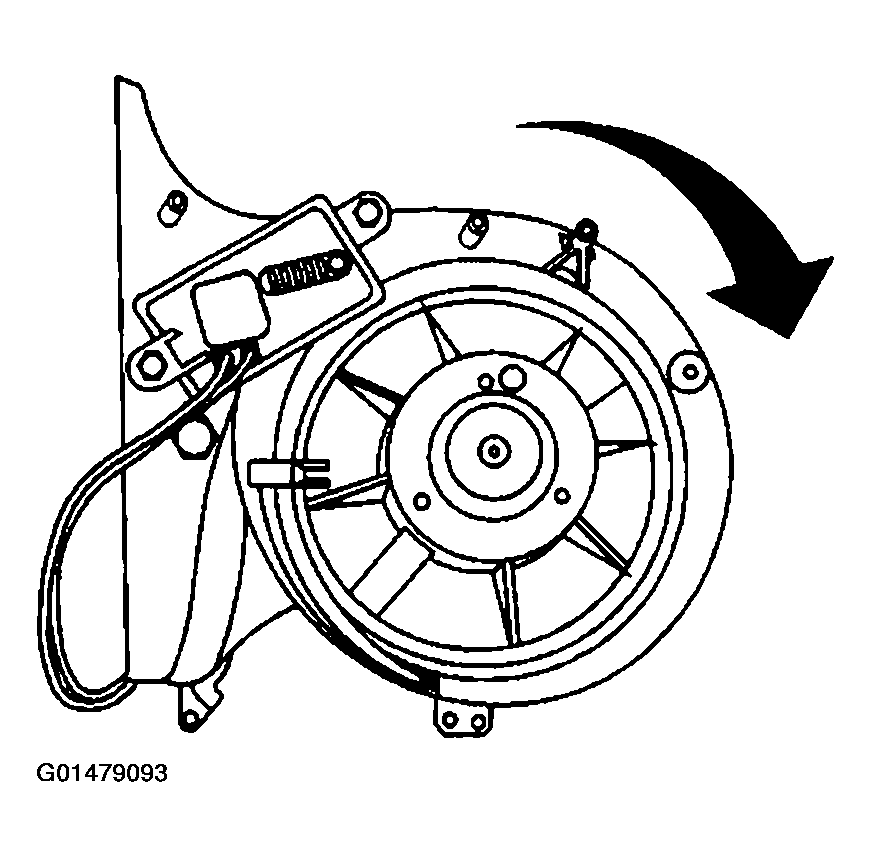

    Fig 2: Turning Blower Motor Assembly
    G01479093Courtesy of GENERAL MOTORS CORP.
  4. Connect the electrical connector to the blower motor.
    NOTE: Refer to FASTENER NOTICE .
  5. Install the blower motor insulating cover screws.

    Tighten

    Tighten the screws to 1.6 N.m (14 lb in).

  6. If equipped, install the sound insulator panel. Refer to INSULATOR REPLACEMENT -- INSTRUMENT PANEL (I/P) .

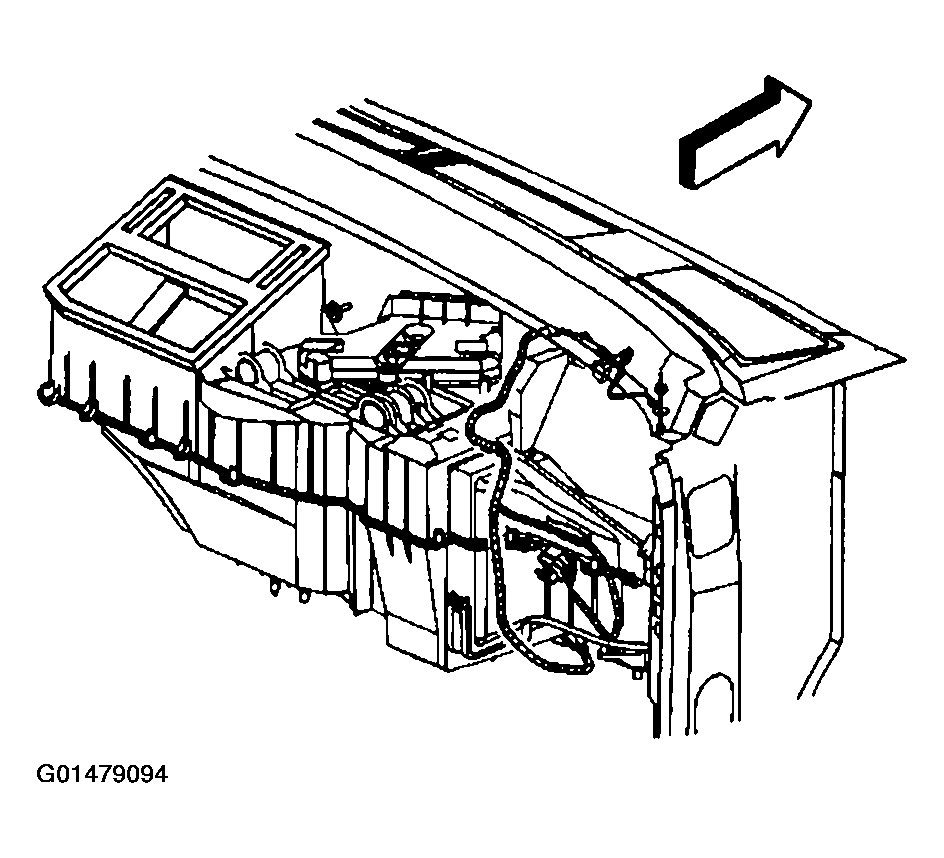

    Fig 3: Connect Electrical Connector To Blower Motor
    G01479094Courtesy of GENERAL MOTORS CORP.
