Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the air temperature door (8).
  2. Assemble the heater/vent module halves.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the heater/vent module screws.

    Tighten

    Tighten the screws to 1.6 N.m (14 lb in).

  4. Install the heater/vent module. Refer to Heater/Vent Module Replacement .

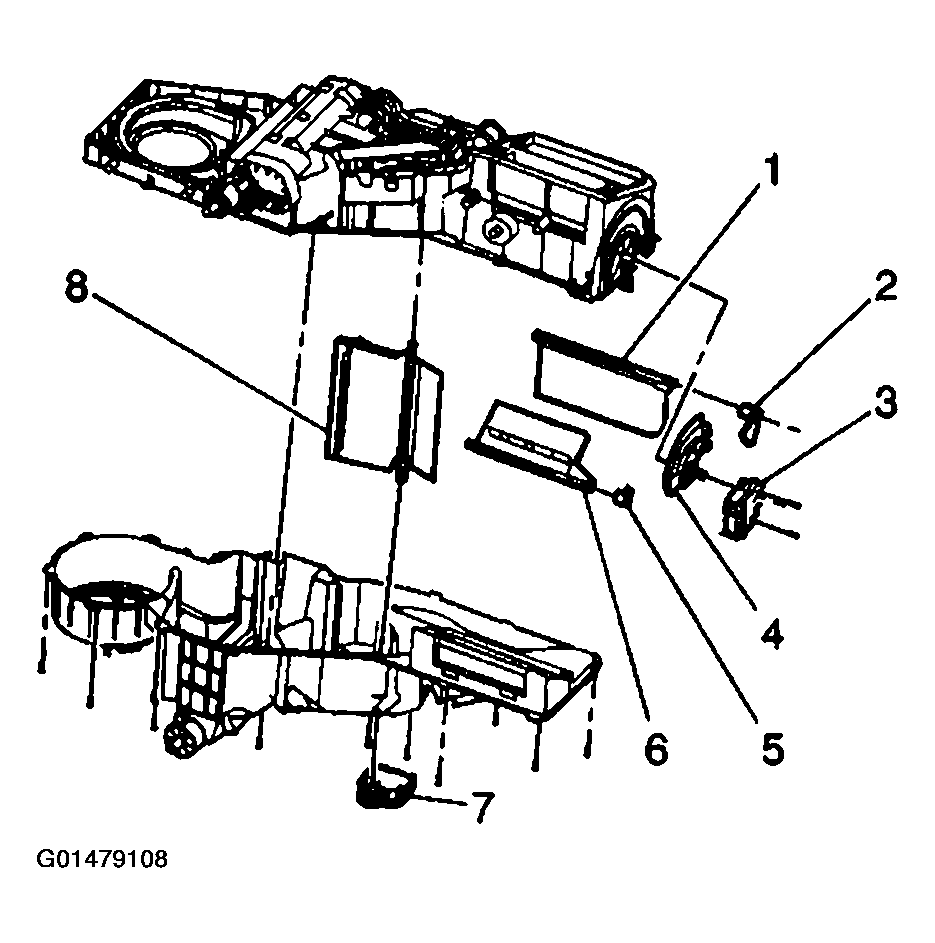

    Fig 1: Install Air Temperature Door
    G01479108Courtesy of GENERAL MOTORS CORP.
