Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the HVAC module. Refer to HVAC Module Assembly Replacement .
  2. If equipped remove the heat stakes from the HVAC module with a screw driver and a hammer.

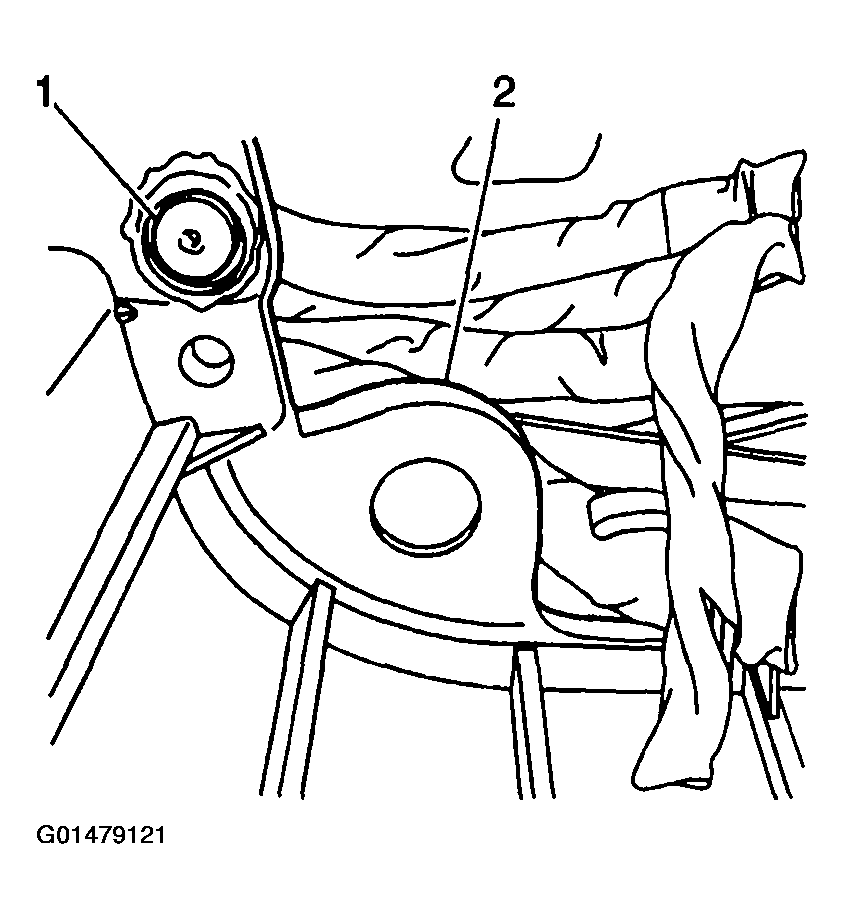

    Fig 1: Identifying Heat Stakes
    G01479121Courtesy of GENERAL MOTORS CORP.
  3. If equipped remove the HVAC module assembly screws.
  4. Remove the upper HVAC module case (1) from the lower HVAC module case (2).
  5. Remove the right temperature door (4) from the upper HVAC module case (3).
    Fig 2: Upper & Lower HVAC Module Case & Right Temperature Door
    G01479122Courtesy of GENERAL MOTORS CORP.
