Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right closeout/insulator panel. Refer to INSULATOR REPLACEMENT -- INSTRUMENT PANEL (I/P) .
  2. Remove the screw from the right floor air outlet duct. (3)
  3. Remove the right floor air outlet duct (3) from the HVAC module (2).

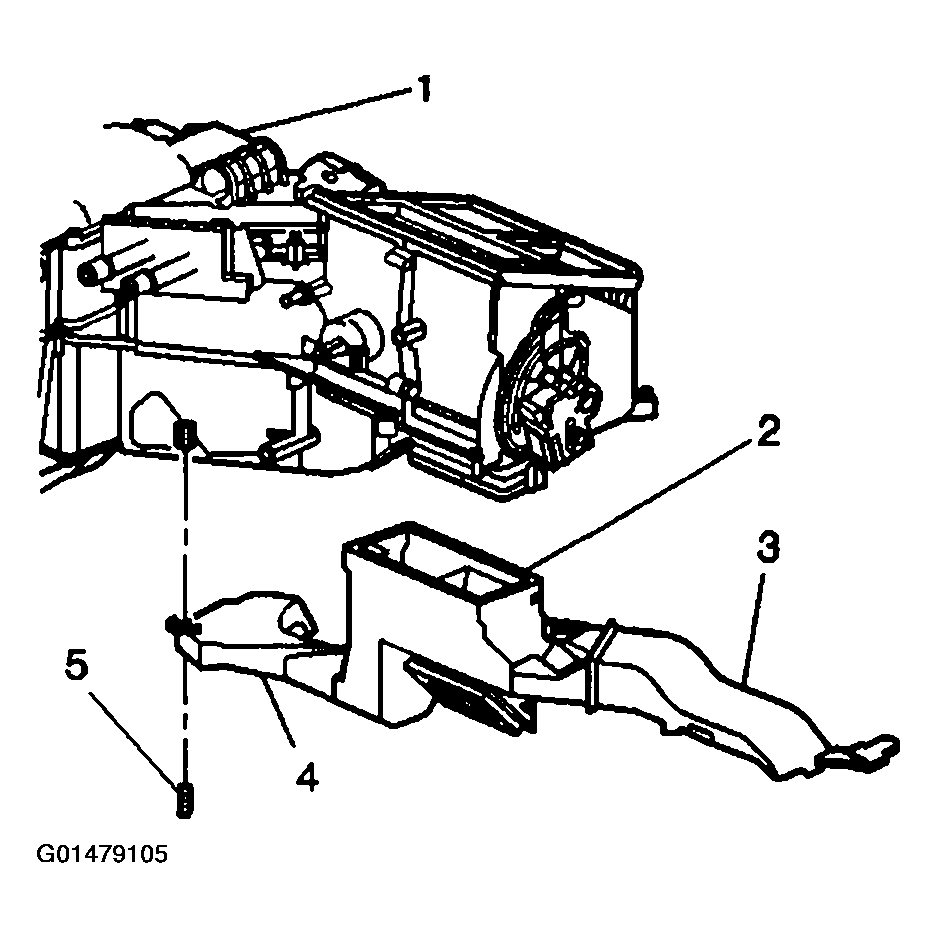

    Fig 1: Remove Right Floor Air Outlet Duct From HVAC Module
    G01479105Courtesy of GENERAL MOTORS CORP.
