Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the right floor air outlet duct (3) to the HVAC module (2).
    NOTE: Refer to FASTENER NOTICE .
  2. Install the screw to the right floor air outlet duct (3).

    Tighten

    Tighten the screw to 1.6 N.m (14 lb in).

  3. Install the right closeout/insulator panel. Refer to INSULATOR REPLACEMENT -- INSTRUMENT PANEL (I/P) .

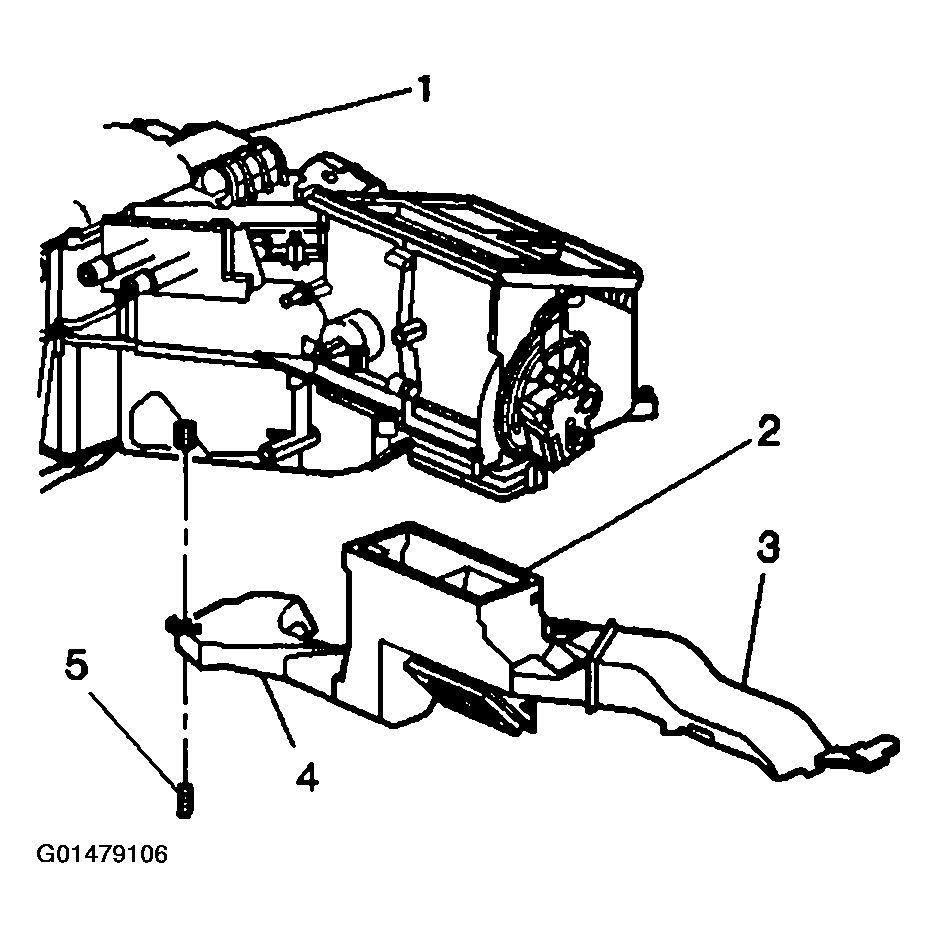

    Fig 1: Installing Right Floor Air Outlet Duct To HVAC Module
    G01479106Courtesy of GENERAL MOTORS CORP.
