Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the IP carrier. Refer to INSTRUMENT PANEL (I/P) CARRIER REPLACEMENT .
  2. Remove the air distribution duct retaining screws.
  3. Remove the air distribution duct.

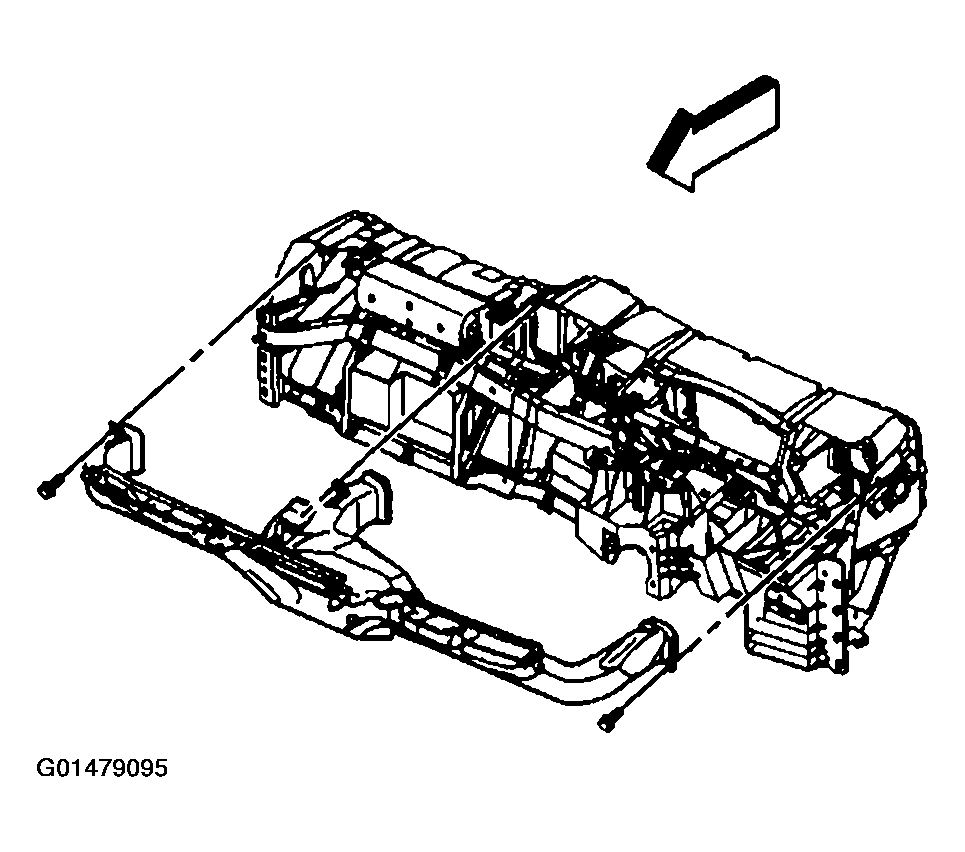

    Fig 1: Remove Air Distribution Duct & Retaining Screws
    G01479095Courtesy of GENERAL MOTORS CORP.
