Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the air distribution duct.
  2. Install the air distribution duct retaining screws.
    NOTE: Refer to FASTENER NOTICE .
  3. Tighten the screws.

    Tighten

    Tighten the screws to 1.6 N.m (14 lb in).

  4. Install the IP carrier. Refer to INSTRUMENT PANEL (I/P) CARRIER REPLACEMENT .

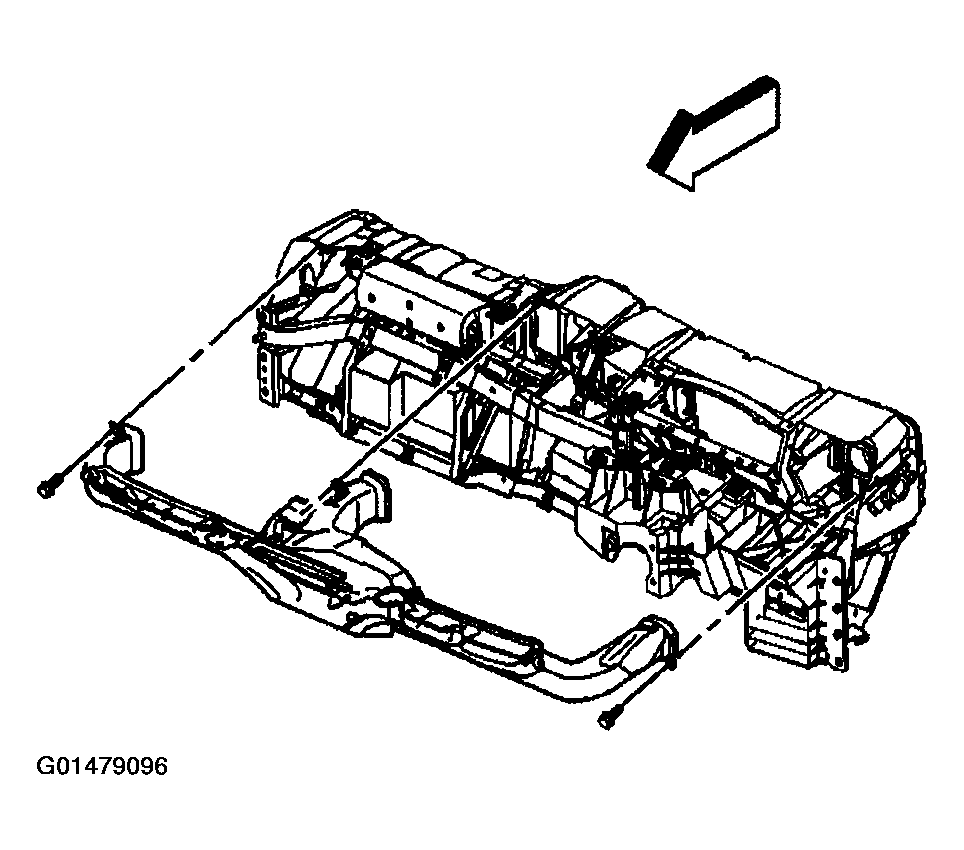

    Fig 1: Install Air Distribution Duct & Retaining Screws
    G01479096Courtesy of GENERAL MOTORS CORP.
