Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to JACKING AND LIFTING .
  2. Disconnect the electrical connector from the A/C high pressure recirculation switch.
  3. Remove the A/C high pressure recirculation switch from the evaporator tube.

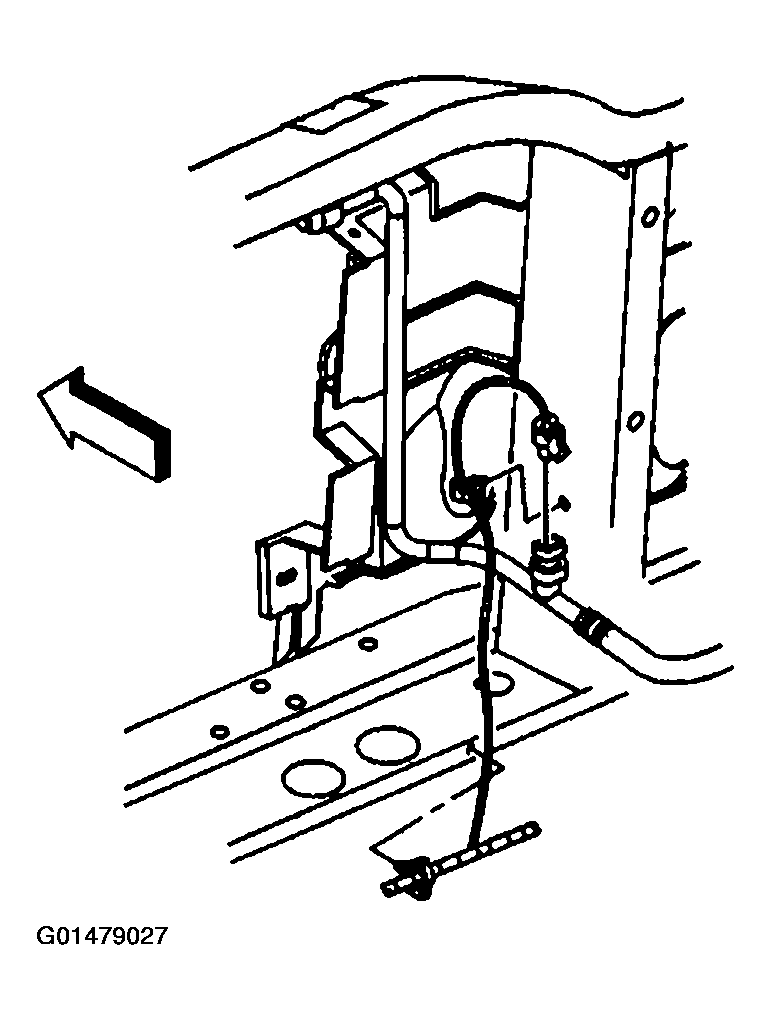

    Fig 1: Electrical Connector & A/C High Pressure Recirculation Switch
    G01479027Courtesy of GENERAL MOTORS CORP.
