Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE .
  1. Install the A/C high pressure recirculation switch.

    Tighten

    Tighten the switch to 6 N.m (53 lb in).

  2. Connect the electrical connector to the A/C high pressure recirculation switch.
  3. Leak test the fittings of the components using the J 39400-A.
  4. Lower the vehicle.

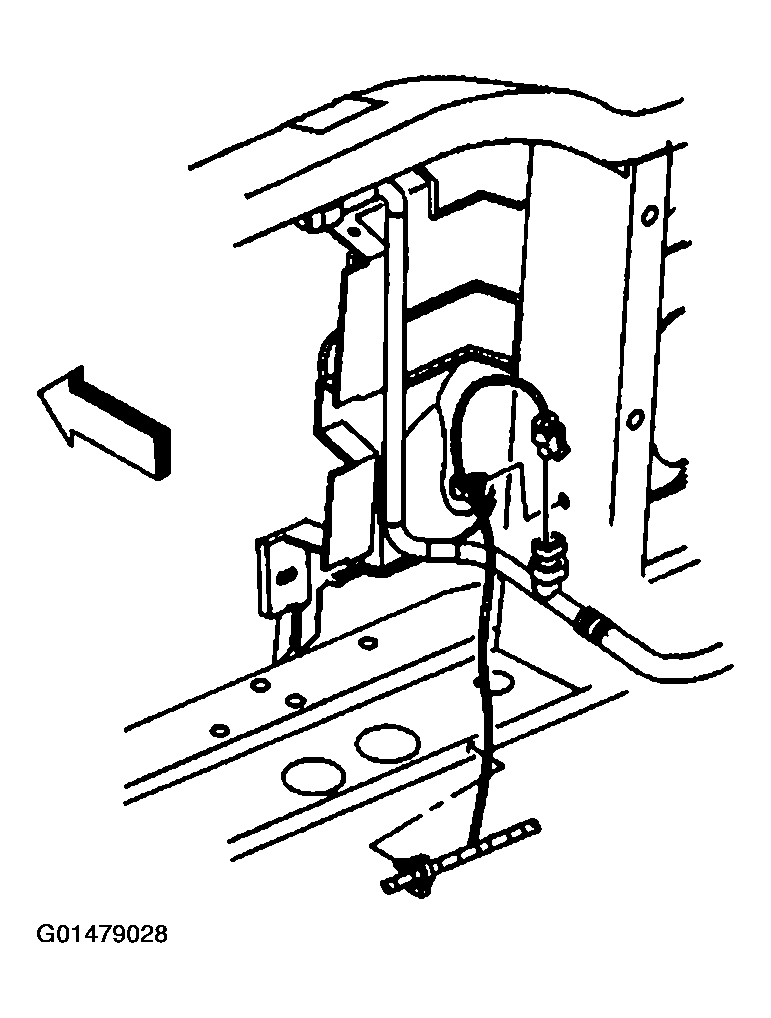

    Fig 1: Electrical Connector & A/C High Pressure Recirculation Switch
    G01479028Courtesy of GENERAL MOTORS CORP.
