Air Conditioning (A/C) Diagnostics - Pressure Zone A

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Air Conditioning (A/C) Diagnostics - Pressure Zone A (Steps 1-4)
G01478943Courtesy of GENERAL MOTORS CORP.

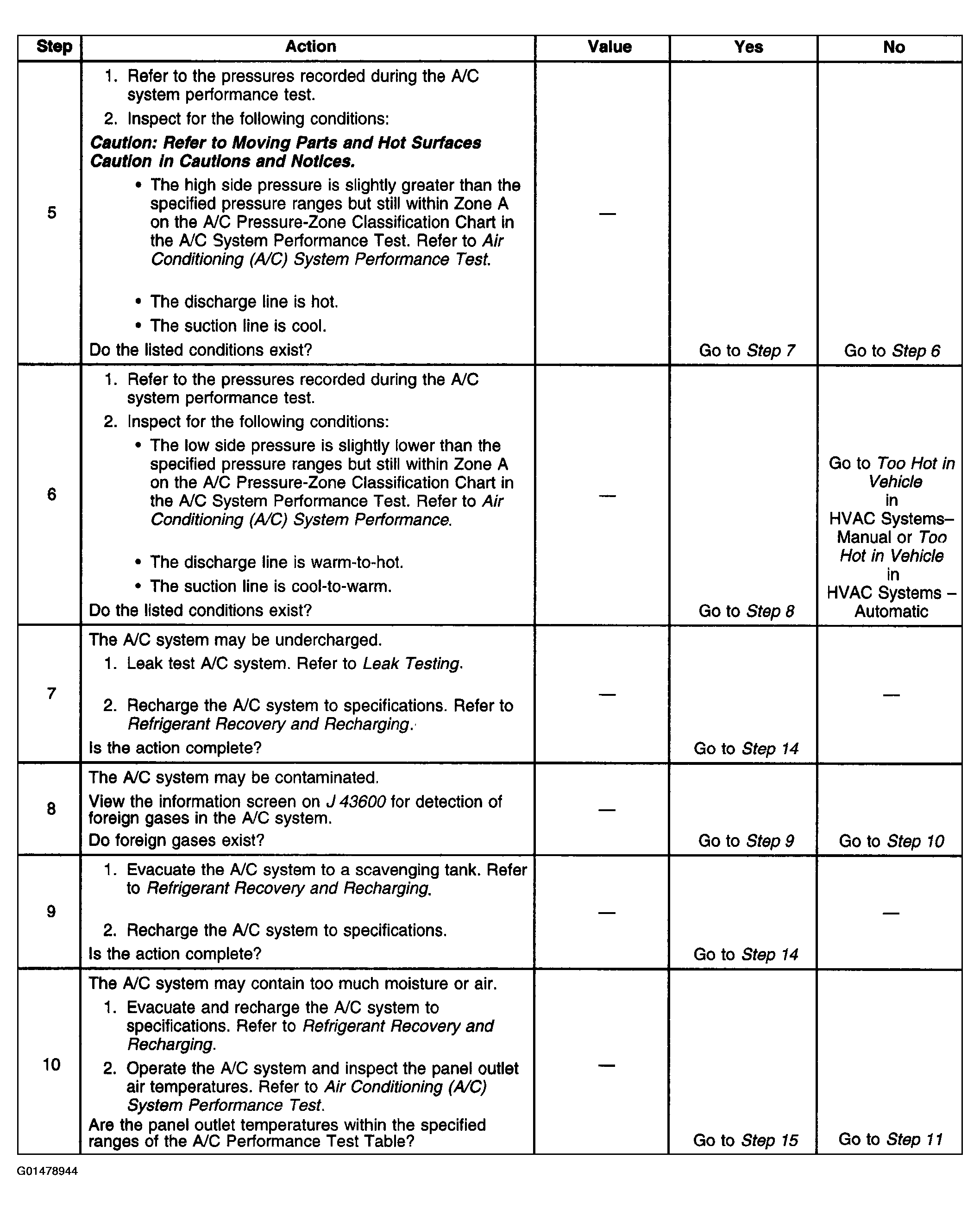

Fig 2: Air Conditioning (A/C) Diagnostics - Pressure Zone A (Steps 5-10)
G01478944Courtesy of GENERAL MOTORS CORP.

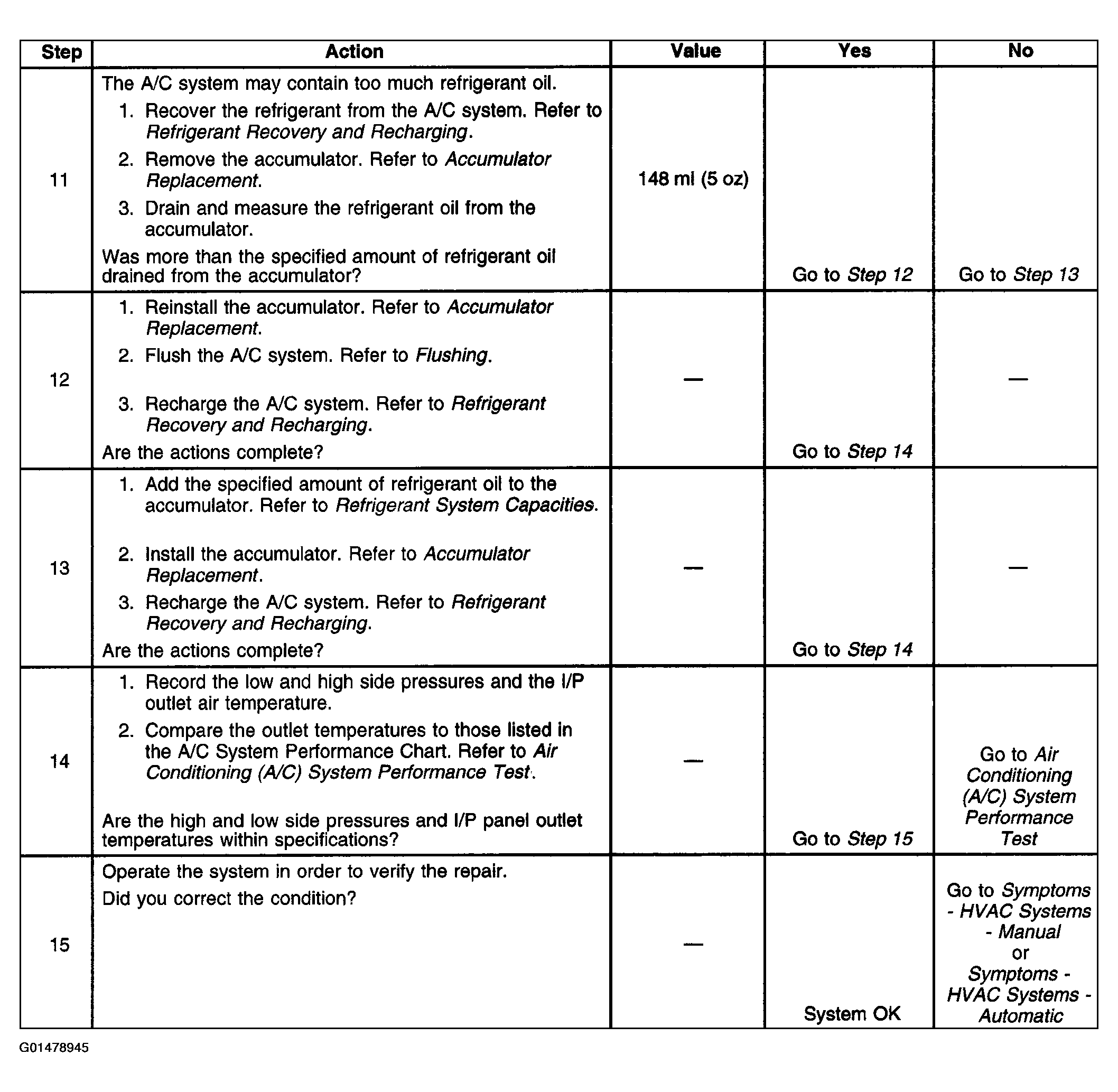

Fig 3: Air Conditioning (A/C) Diagnostics - Pressure Zone A (Steps 11-15)
G01478945Courtesy of GENERAL MOTORS CORP.
