Front Hoist Pads

WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

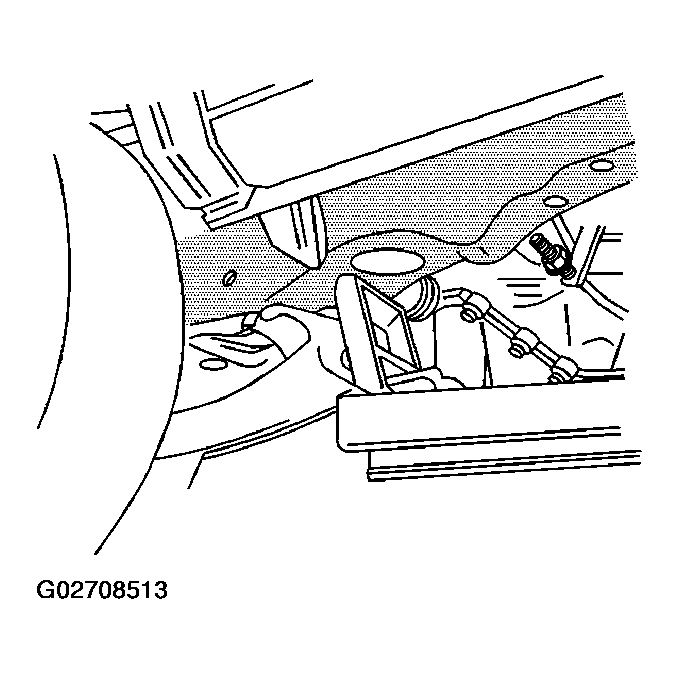

Fig 1: Positioning Front Hoist Pads

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: The front hoist pads must not contact the rocker panels, the front fenders, or the floor pan. Position the (frame contact) front hoist pads under the front frame between the lower control arm and the frame pad or the front frame pad when using a tip-up hoist pad.
