Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the overhead console. Refer to OVERHEAD CONSOLE REPLACEMENT--FRONT in Interior Trim.

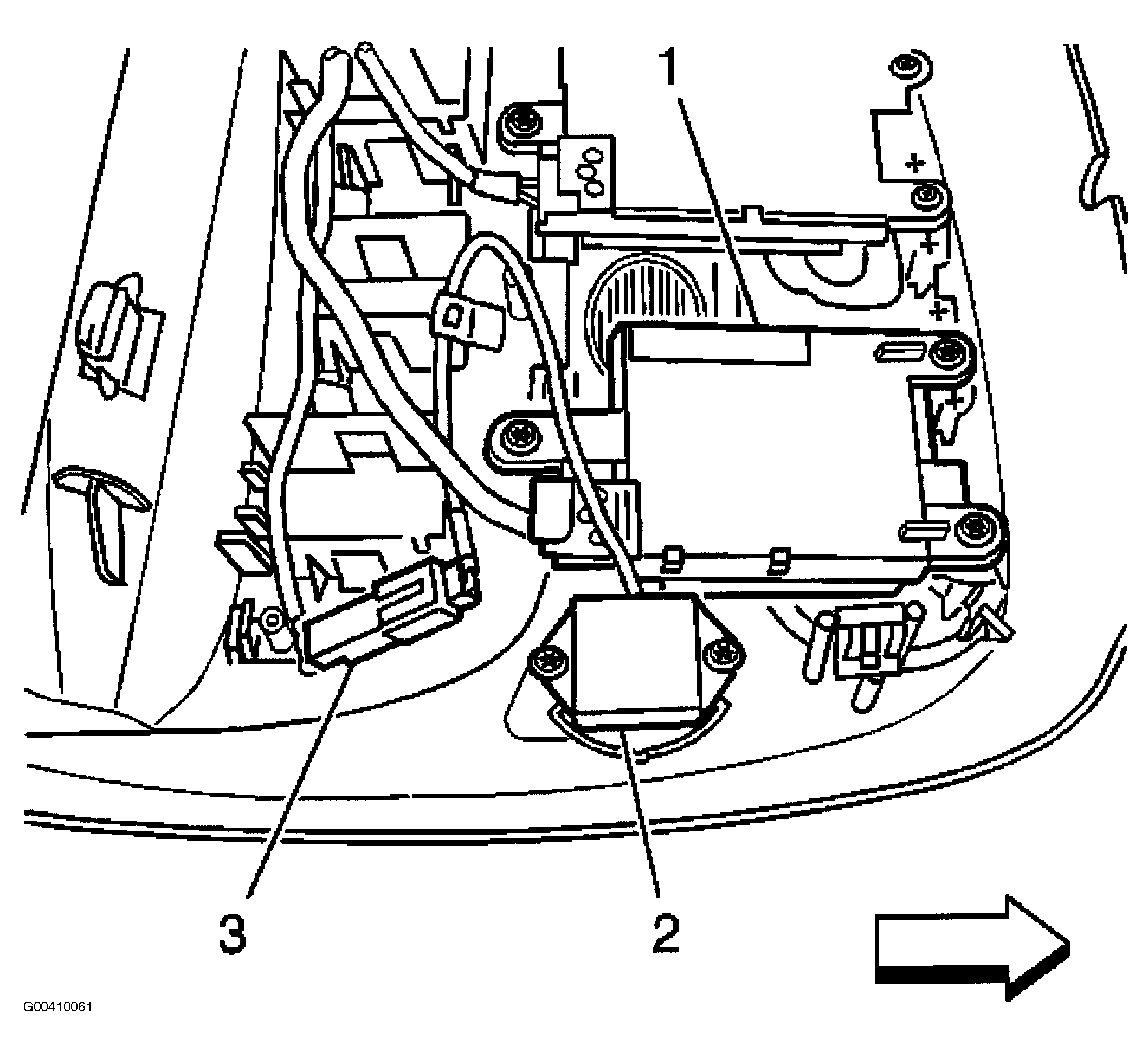

    2. Fig 1: Disconnecting Microphone Electrical Connector
    G00410061Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the microphone electrical connector (3).
  3. Remove the 2 retaining screws to the microphone.
  4. Remove the microphone (2) from the overhead console.
