Power Roof Systems Component Views

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

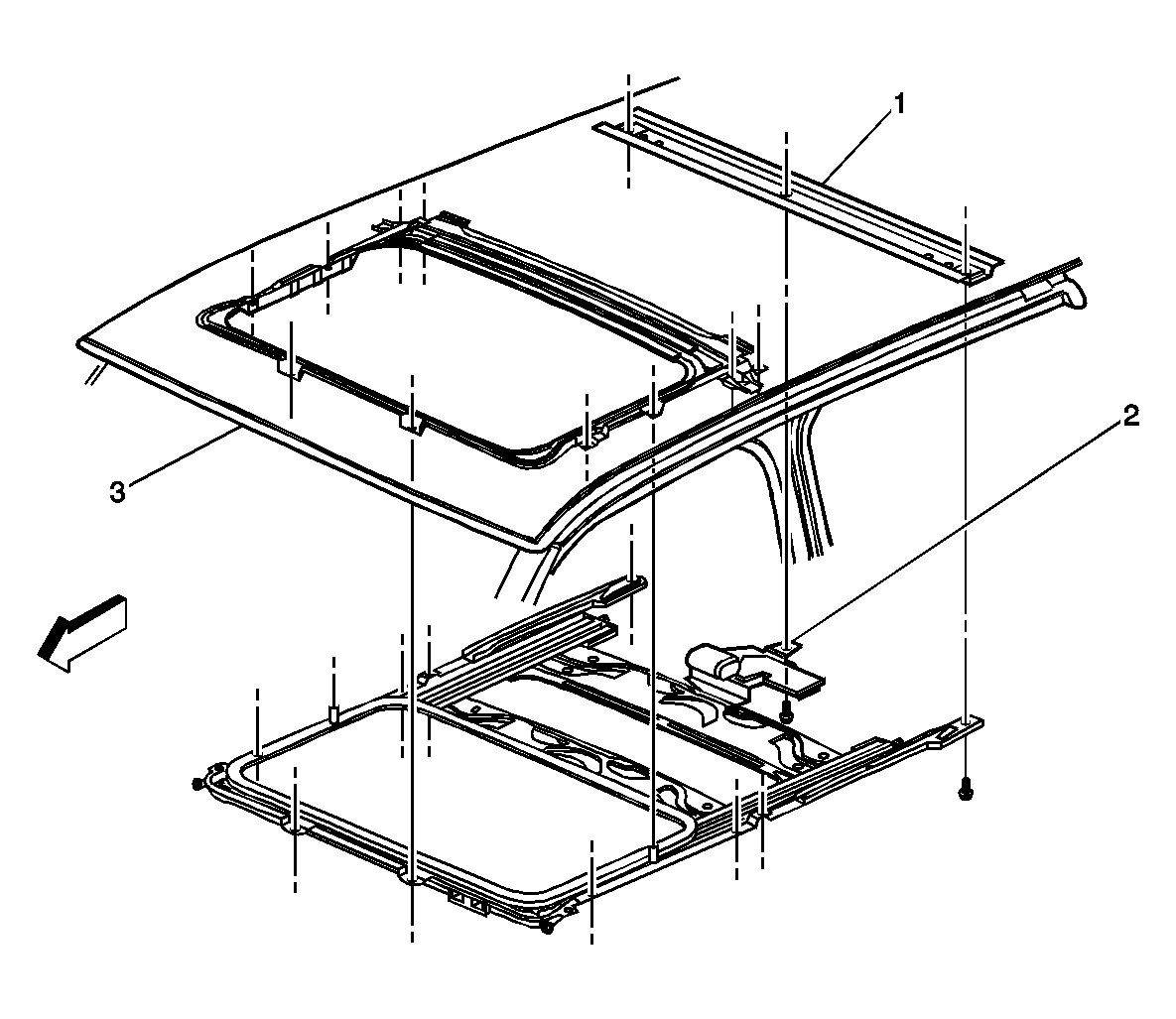

Fig 1: Sunroof Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Roof Reinforcement
2	Sunroof Module
3	Roof Panel

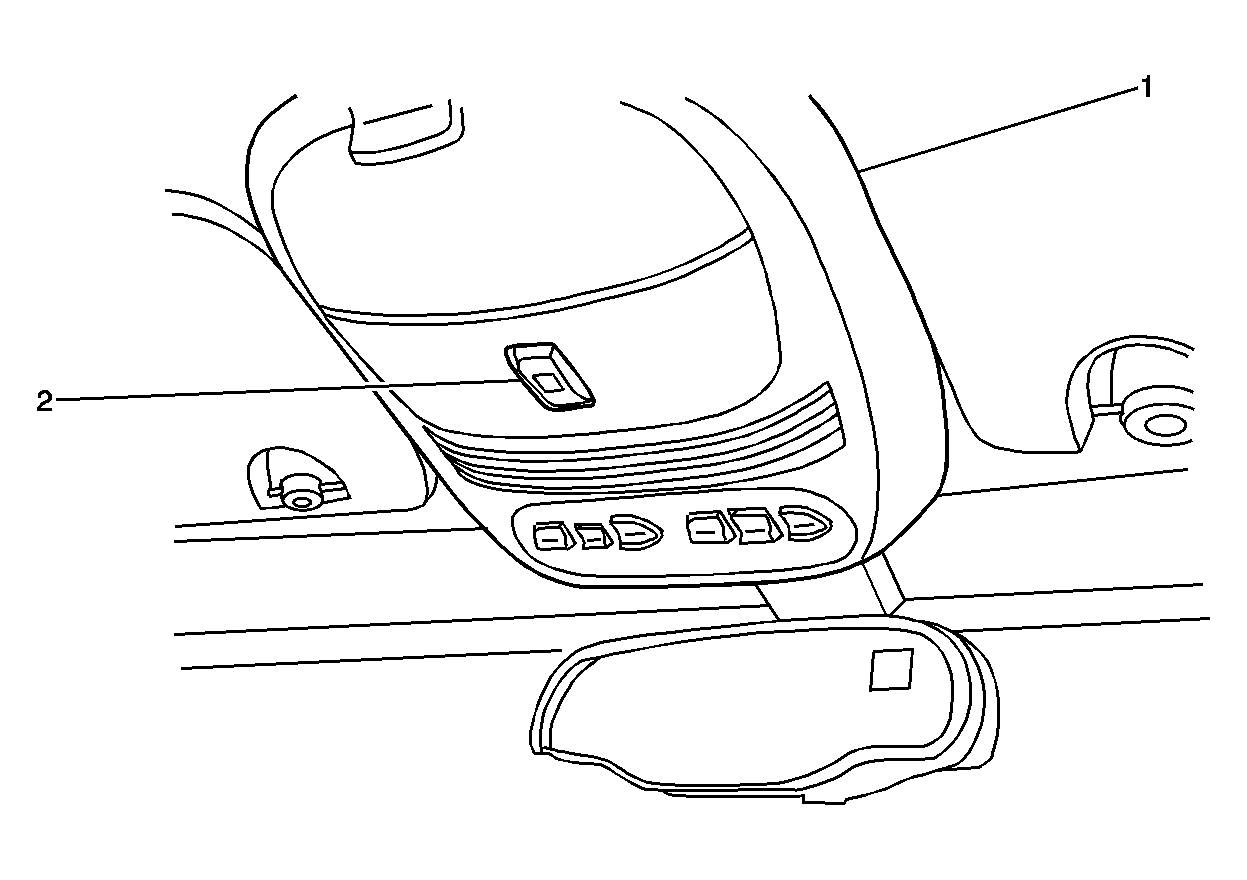

Fig 2: Upper Console

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Upper Console
2	Sunroof Switch

Fig 3: Roof With Headliner Removed

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C308
2	Sunroof Motor Connector
3	Connector C1
4	Sunroof Module
5	Connector C2
