Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat assembly. Refer to SEAT REPLACEMENT - FRONT BUCKET in Seats.
  2. Disconnect the seat belt reminder wiring harness (3) on the driver's seat.

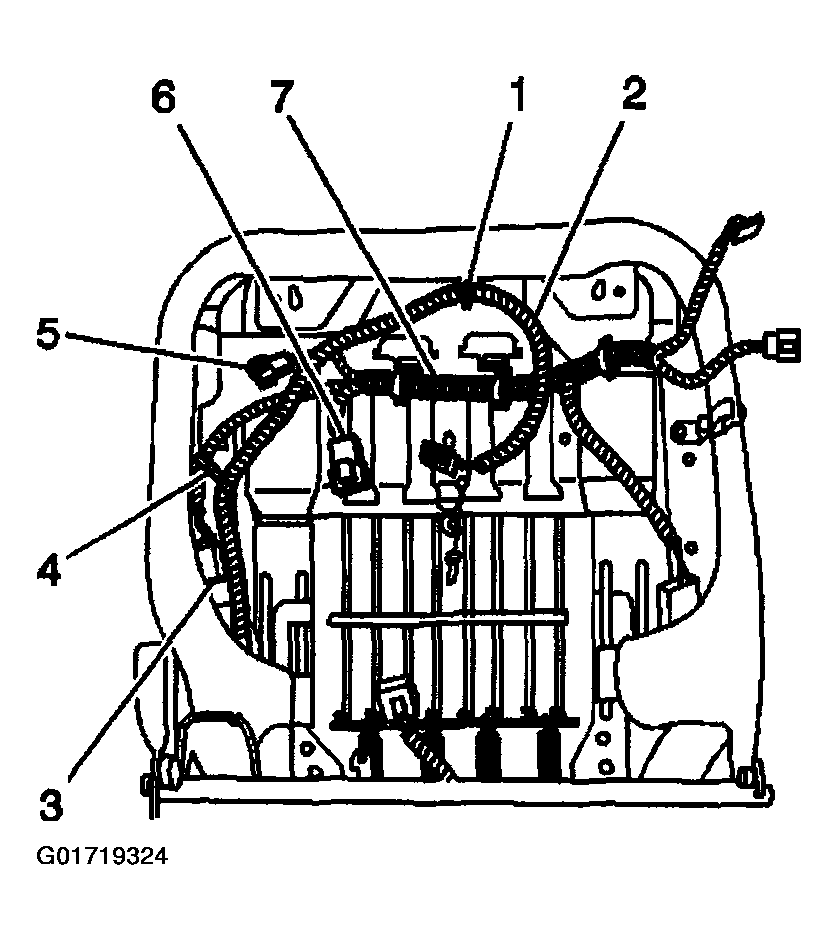

    Fig 1: Identifying Seat Belt Reminder Wiring Harness Components
    G01719324Courtesy of GENERAL MOTORS CORP.
  3. Remove the nut (1) which retains the seat belt buckle to the seat assembly.
  4. Remove the seat belt buckle from the seat assembly.

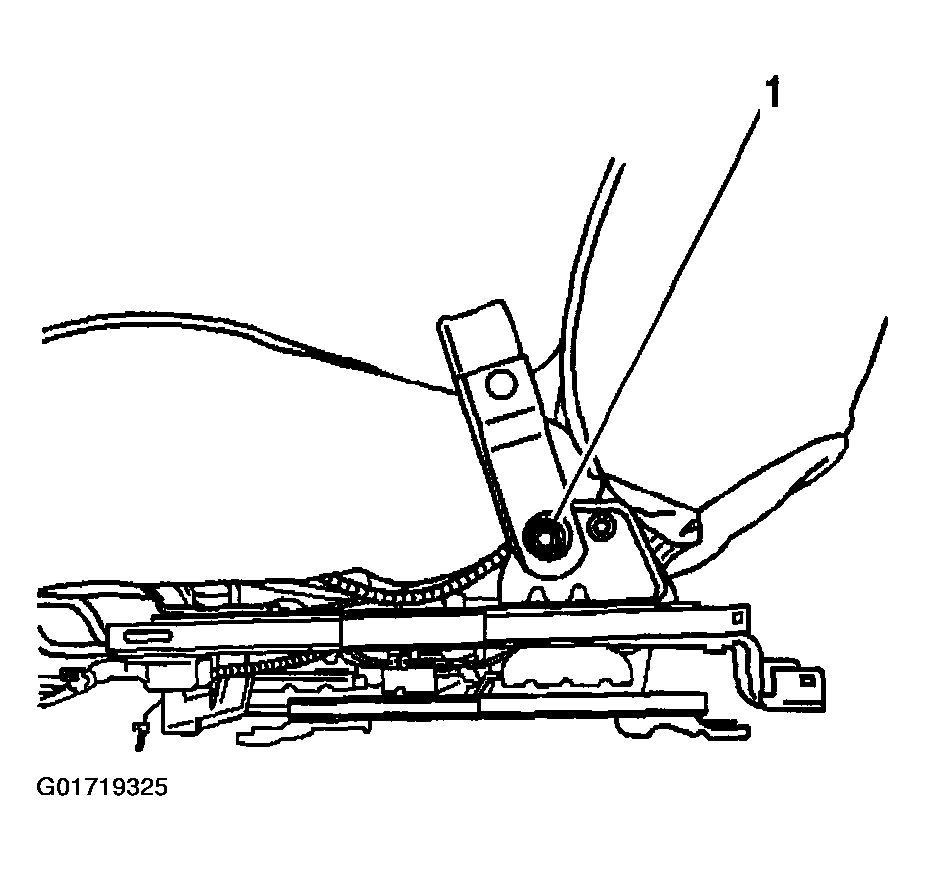

    Fig 2: Removing/Installing Seat Belt Buckle Retaining Nut
    G01719325Courtesy of GENERAL MOTORS CORP.
