Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat belt buckle to the seat assembly.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the nut (1) which retains the seat belt buckle to the seat assembly.

    Tighten

    Tighten the front seat belt buckle nut to 52 N.m (38 lb ft).

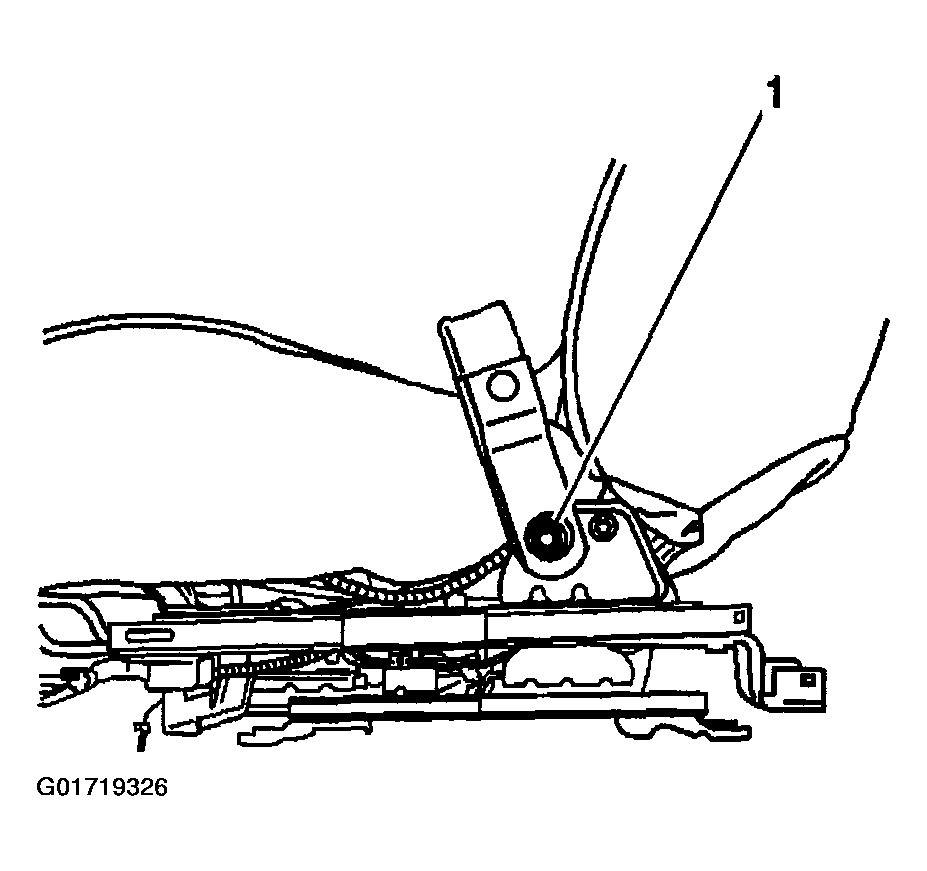

    Fig 1: Removing/Installing Seat Belt Buckle Retaining Nut
    G01719326Courtesy of GENERAL MOTORS CORP.
  3. Connect the seat belt reminder wiring harness (3) on the driver's seat.
  4. Install the front seat assembly. Refer to SEAT REPLACEMENT - FRONT BUCKET in Seats.

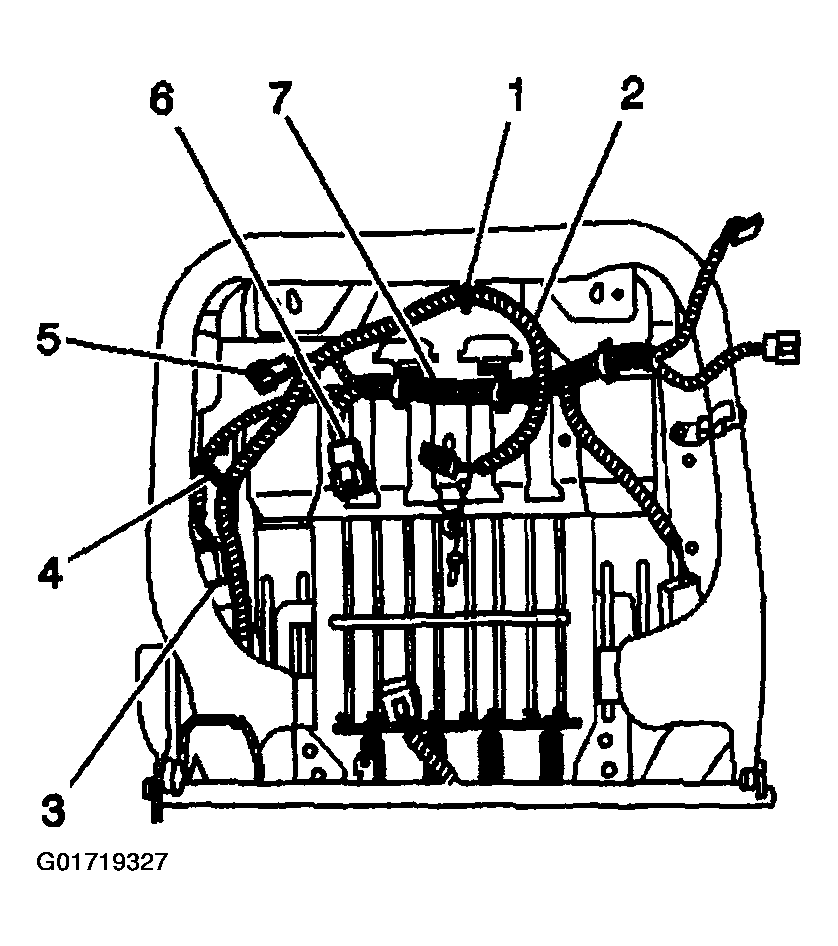

    Fig 2: Identifying Seat Belt Reminder Wiring Harness Components
    G01719327Courtesy of GENERAL MOTORS CORP.
